AIR CLEANER

GV1400GT CAVALCADE 1987 (H) USA (E03)

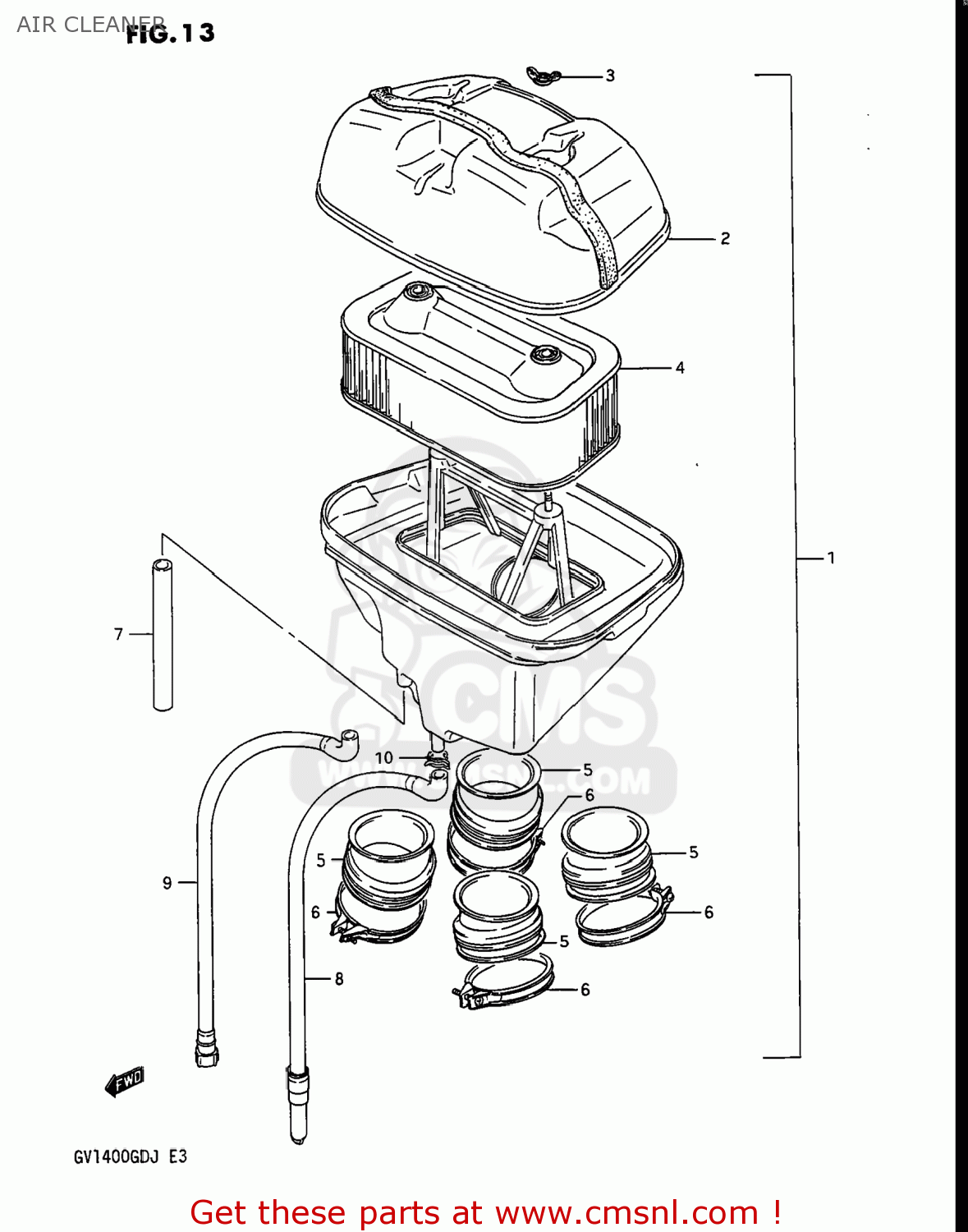

Air cleaner diagram GV1400GT CAVALCADE 1987 (H) USA (E03)

AIR CLEANER GV1400GT CAVALCADE 1987 (H) USA (E03)
AIR CLEANER GV1400GT CAVALCADE 1987 (H) USA (E03)
AIR CLEANER GV1400GT CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1370024A00
ref: 1-1
13700-24A10
CLEANER ASSEMBLY,AIR
€ 0.00
1-2
1370024A10
ref: 1-2
(CA) CLEANER ASSEMBLY,AIR
€ 0.00
2
1374024A00
ref: 2
CAP,AIR CLEANER
1374024A00
€ 51.50
3
0831712058
ref: 3
08317-1205A
NUT, WING
€ 2.00
4
1378024A00
ref: 4
FILTER ASSY
1378024A00
€ 51.00
5
1388105A00
ref: 5
TUBE,AIR CLEANER OUTLET
€ 13.50
6
0940258207
ref: 6
09402-58208
CLAMP
€ 5.50
7
1385100130
ref: 7
09352-11153-600
TUBE,BREATHER
€ 13.50
8
1387024A00
ref: 8
13870-21628
DRAIN TUBE
€ 23.50
9
1387024A10
ref: 9
13870-21628
DRAIN TUBE
€ 23.50
10
1382543400
ref: 10
09401-13417
CLIP
€ 2.50
