CRUISE CONTROL KIT (GV1400GTG OPTIONAL)

GV1400GT CAVALCADE 1987 (H) USA (E03)

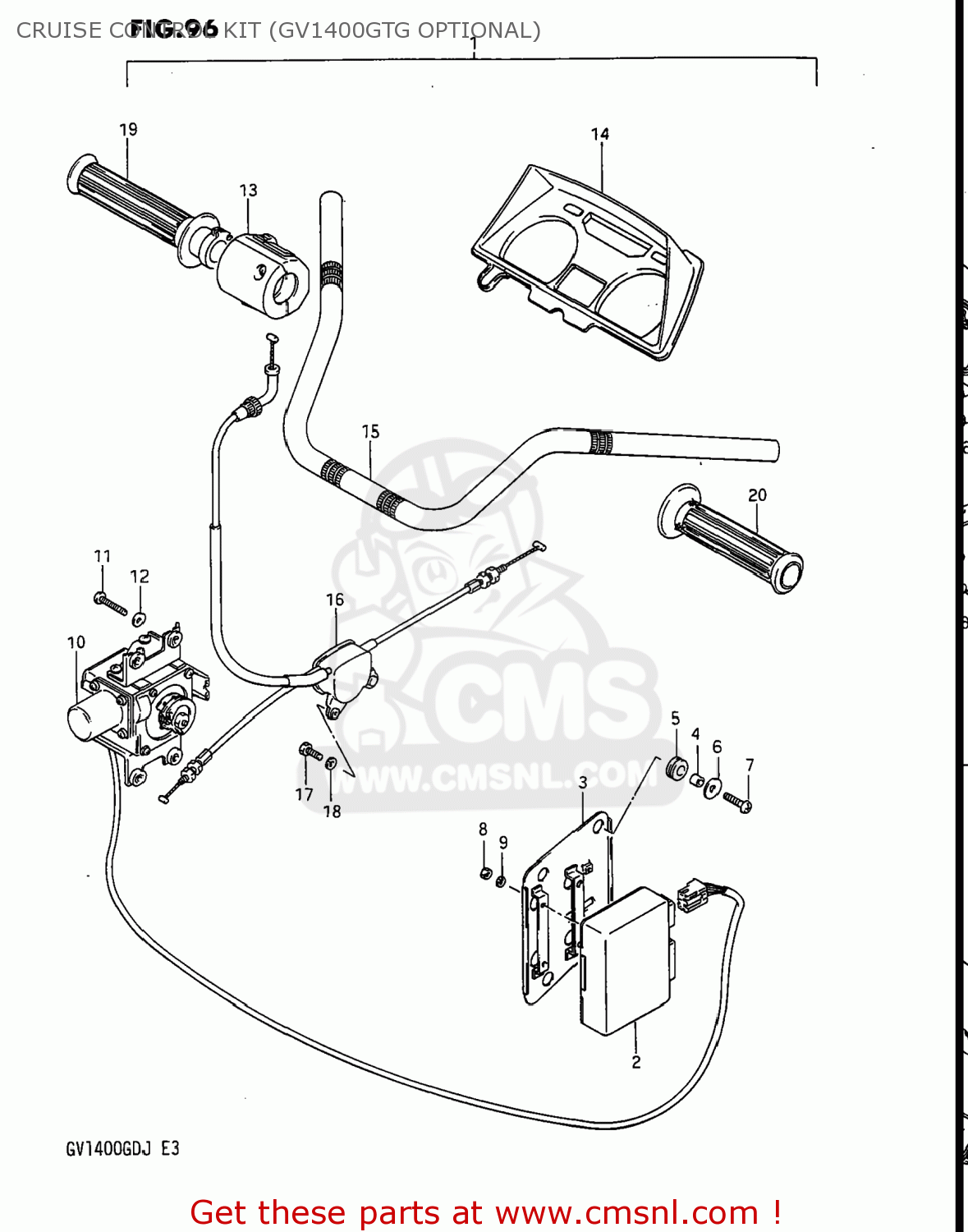

Cruise control kit (gv1400gtg optional) diagram GV1400GT CAVALCADE 1987 (H) USA (E03)

CRUISE CONTROL KIT (GV1400GTG OPTIONAL) GV1400GT CAVALCADE 1987 (H) USA (E03)

CRUISE CONTROL KIT (GV1400GTG OPTIONAL) GV1400GT CAVALCADE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3390024821
ref: 1

CONTROL SET,CRUISE

€ 1,455.00

2

3398024A00
ref: 2

CONTROLLER ASSEMBLY,AUTO CRUISE

€ 377.00

3

3398524A00
ref: 3

BRACKET

€ 0.00

4

0918007005
ref: 4
09180-06259

SPACER (7X9X7)

€ 2.50

5

0932008007
ref: 5
09320-08021

CUSHION

€ 4.00

6

0916006007
ref: 6
09160-06084

WASHER

€ 2.00

7

0211206167
ref: 7

SCREW

€ 2.50

8

0831011056
ref: 8
08310-0005A

NUT

€ 2.50

9

0832121056
ref: 9
08321-0105A

LOCK WASHER

€ 3.00

10

3399024A00
ref: 10

ACTUATOR ASSEMBLY,AUTO CRUISE

€ 897.00

11

0211206208
ref: 11
02112-06207

SCREW

€ 2.00

12

0916006007
ref: 12
09160-06084

WASHER

€ 2.00

13

3720024A30
ref: 13

SWITCH ASSY,HANDLE,R

€ 157.50

14

3415324A31
ref: 14

PANEL,METER

€ 60.50

15

5611024A30
ref: 15
56110-24A31

HANDLEBAR

€ 92.50

16

5830024A01
ref: 16

CABLE ASSEMBLY,THROTTLE

€ 78.50

17

0110706127
ref: 17
01500-06127

BOLT

€ 2.00

18

0832121067
ref: 18
08321-01067

WASHER,LOCK

€ 2.50

19

5711024A10
ref: 19

GRIP,THROTTLE

€ 33.00

20

5721124A00
ref: 20

GRIP,LEFT

€ 10.50
