Buy Suzuki GV Parts Online


SIDE BAG (GV1400GCG)

GV1400GT CAVALCADE 1987 (H) USA (E03)

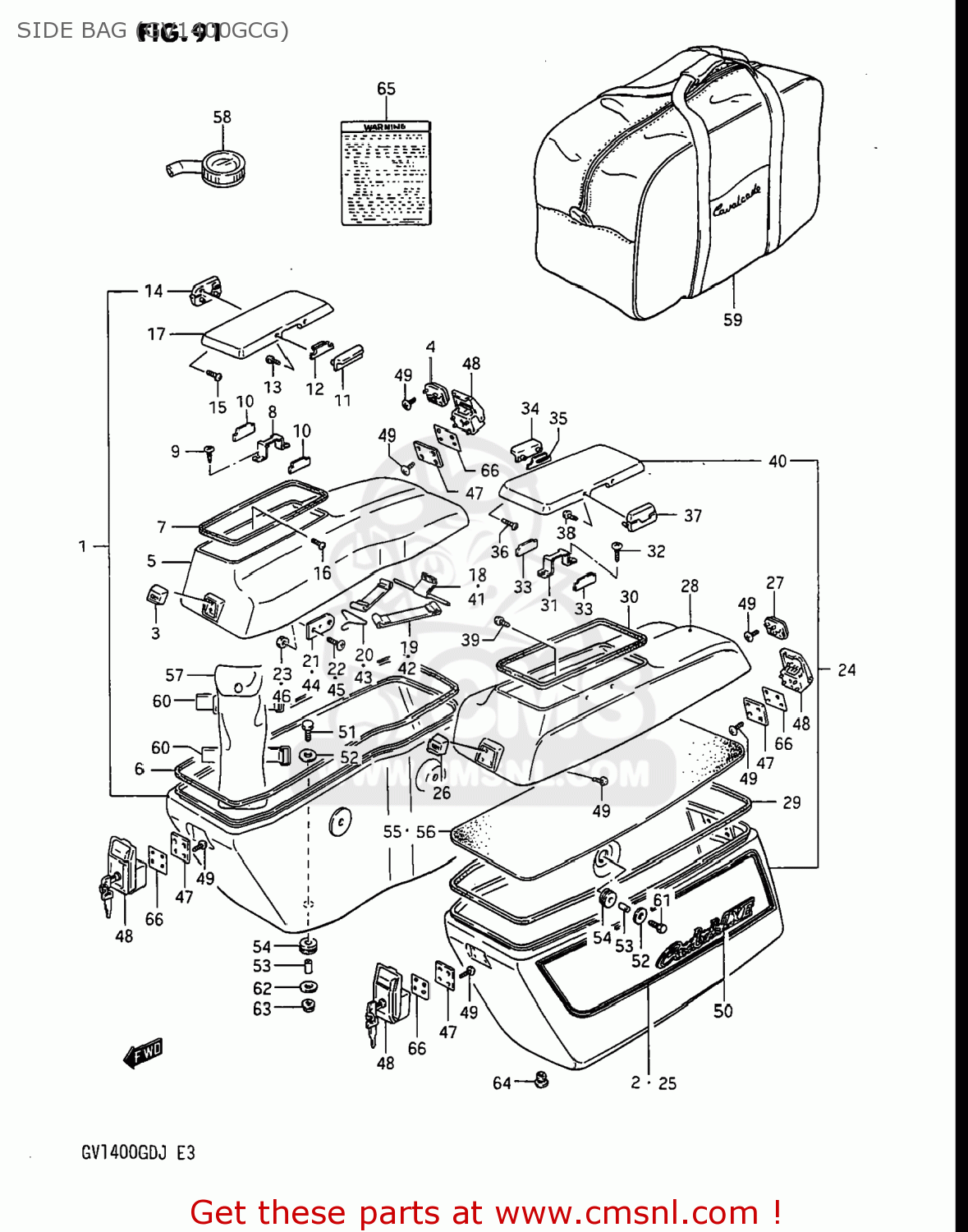

Side bag (gv1400gcg) diagram GV1400GT CAVALCADE 1987 (H) USA (E03)

SIDE BAG (GV1400GCG) GV1400GT CAVALCADE 1987 (H) USA (E03)
SIDE BAG (GV1400GCG) GV1400GT CAVALCADE 1987 (H) USA (E03)
SIDE BAG (GV1400GCG) GV1400GT CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9540024A408RB
ref: 1-1
95400-24A41-8RB
SIDE BAG ASSEMBLY,RIGHT
€ 1,310.00
1-2
9540024A408VA
ref: 1-2
95400-24A41-8VA
SIDE BAG ASSEMBLY,RIGHT
€ 1,545.00
2-1
6826024A208JB
ref: 2-1
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-2
6826024A208UZ
ref: 2-2
TAPE SET,SIDE BAG,RIGHT
€ 0.00
3
9331624A00
ref: 3
93316-24A02
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A11
ref: 4
93316-24A13
PLATE,SIDE BAG LID LOCK
9331624A11
€ 15.00
5-1
9544024A1027U
ref: 5-1
LID,SIDE BAG,RIGHT
€ 346.50
5-2
9544024A1024V
ref: 5-2
LID,SIDE BAG,RIGHT
€ 272.00
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A01
ref: 7
95446-24A02
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
9551624A00
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A00
ref: 10
95423-24A10
PLATE,LID LOCK
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
9544724A00
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
02142-0406A
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
9544324A00
€ 47.00
15
0214204065
ref: 15
02142-0406A
SCREW
€ 1.50
16
0214204125
ref: 16
02142-0412A
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
9544824A00
€ 65.50
18
9547024A00
ref: 18
PLATE,LUGGAGE BAND LID
€ 8.50
19
9547424A00
ref: 19
BAND,LUGGAGE LID
€ 13.00
20
9547524A00
ref: 20
.HOOK
€ 4.50
21
9547324A00
ref: 21
PLATE, FRONT
9547324A00
€ 4.50
22
0214205124
ref: 22
02142-0512A
SCREW, FRONT & REAR
€ 1.50
23
0831321055
ref: 23
08313-2005A
NUT 5MM
0831321055
€ 1.50
24-1
9550024A408RB
ref: 24-1
95500-24A41-8RB
SIDE BAG ASSEMBLY,LEFT
€ 1,310.00
24-2
9550024A408VA
ref: 24-2
95500-24A41-8VA
SIDE BAG ASSEMBLY,LEFT
€ 1,721.50
25-1
6829024A208JB
ref: 25-1
TAPE SET
€ 0.00
25-2
6829024A208UZ
ref: 25-2
TAPE SET,SIDE BAG,LEFT
€ 44.50
26
9331624A00
ref: 26
93316-24A02
PLATE,TRUNK LID LOCK
€ 15.00
27
9331624A11
ref: 27
93316-24A13
PLATE,SIDE BAG LID LOCK
9331624A11
€ 15.00
27
9331624A11
ref: 27
93316-24A13
PLATE,SIDE BAG LID LOCK
9331624A11
€ 15.00
27
9331624A11
ref: 27
93316-24A13
PLATE,SIDE BAG LID LOCK
9331624A11
€ 15.00
28-1
9554024A1027U
ref: 28-1
LID,SIDE BAG,LEFT
€ 0.00
28-2
9554024A1024V
ref: 28-2
LID,SIDE BAG,LEFT
€ 301.50
29
9542224A01
ref: 29
SEAL,SIDE BAG
€ 10.50
30
9544624A01
ref: 30
95446-24A02
SEAL,SIDE BAG
€ 9.00
31
9551624A00
ref: 31
HOLDER,LID LOCK MAGNET
9551624A00
€ 4.00
32
0351103125
ref: 32
SCREW
€ 0.00
33
9542324A00
ref: 33
95423-24A10
PLATE,LID LOCK
€ 4.00
34
9544724A00
ref: 34
LEVER,SIDE POCKET OPEN
9544724A00
€ 19.50
35
9542424A00
ref: 35
PLATE,LID LOCK NO.1
€ 4.50
36
0214204065
ref: 36
02142-0406A
SCREW
€ 1.50
37
9544324A00
ref: 37
HINGE,LID SIDE BAG POCKET
9544324A00
€ 47.00
38
0214204065
ref: 38
02142-0406A
SCREW
€ 1.50
39
0214204125
ref: 39
02142-0412A
SCREW
€ 1.50
40
9544824A00
ref: 40
LID,SIDE BAG POCKET
9544824A00
€ 65.50
41
9547024A00
ref: 41
PLATE,LUGGAGE BAND LID
€ 8.50
42
9547424A00
ref: 42
BAND,LUGGAGE LID
€ 13.00
43
9547524A00
ref: 43
.HOOK
€ 4.50
44
9547324A00
ref: 44
PLATE, FRONT
9547324A00
€ 4.50
45
0214205124
ref: 45
02142-0512A
SCREW, FRONT & REAR
€ 1.50
46
0831321055
ref: 46
08313-2005A
NUT 5MM
0831321055
€ 1.50
47
9312424A00
ref: 47
SET PLATE,LOCK SIDE BA
€ 5.00
48
9331024A00KEY
ref: 48
93300-24820
LOCK ASSY, SIDE BAG
€ 96.50
49
0214205085
ref: 49
02142-0508A
SCREW
0214205085
€ 2.00
50
6826124A20
ref: 50
EMBLEM
€ 25.00
51
0110706307
ref: 51
01500-06307
BOLT 6X30
€ 2.50
52
0916006030
ref: 52
09160-06136
WASHER (6.5X29X1.6)
0916006030
€ 2.50
53
0918006055
ref: 53
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
54
0932009017
ref: 54
CUSHION
0932009017
€ 3.00
55
9541624A00
ref: 55
SEAT, BOTTOM RH
€ 13.50
56
9541724A00
ref: 56
SEAT, BOTTOM LH
€ 13.50
57
0980000293
ref: 57
TOOL ASSY
€ 448.50
57
0980000293
ref: 57
TOOL ASSY
€ 448.50
57
0980000293
ref: 57
TOOL ASSY
€ 448.50
58
9620041330
ref: 58
GAUGE ASSY,AIR PRESSURE
9620041330
€ 77.50
59
9545024A00
ref: 59
95450-24A01
LUGGAGE BAG,SIDE BAG
€ 131.50
60
0946200040
ref: 60
BAND
0946200040
€ 4.50
61
0120406307
ref: 61
BOLT
0120406307
€ 0.50
62
0916006013
ref: 62
09160-06121
WASHER (6.5X18X2)
0916006013
€ 10.50
63
0831931067
ref: 63
NUT
0831931067
€ 2.50
64
0925008013
ref: 64
CAP(OD:12)
0925008013
€ 2.00
65
6861324A20
ref: 65
LABEL (WARNING TRAVEL T
€ 0.00
66
9331424A00
ref: 66
93314-24A01
PACKING SEAT
€ 3.50
66
9331424A00
ref: 66
93314-24A01
PACKING SEAT
€ 3.50
66
9331424A00
ref: 66
93314-24A01
PACKING SEAT
€ 3.50
