FUEL TANK
GV1400GT CAVALCADE 1987 (H) USA (E03)

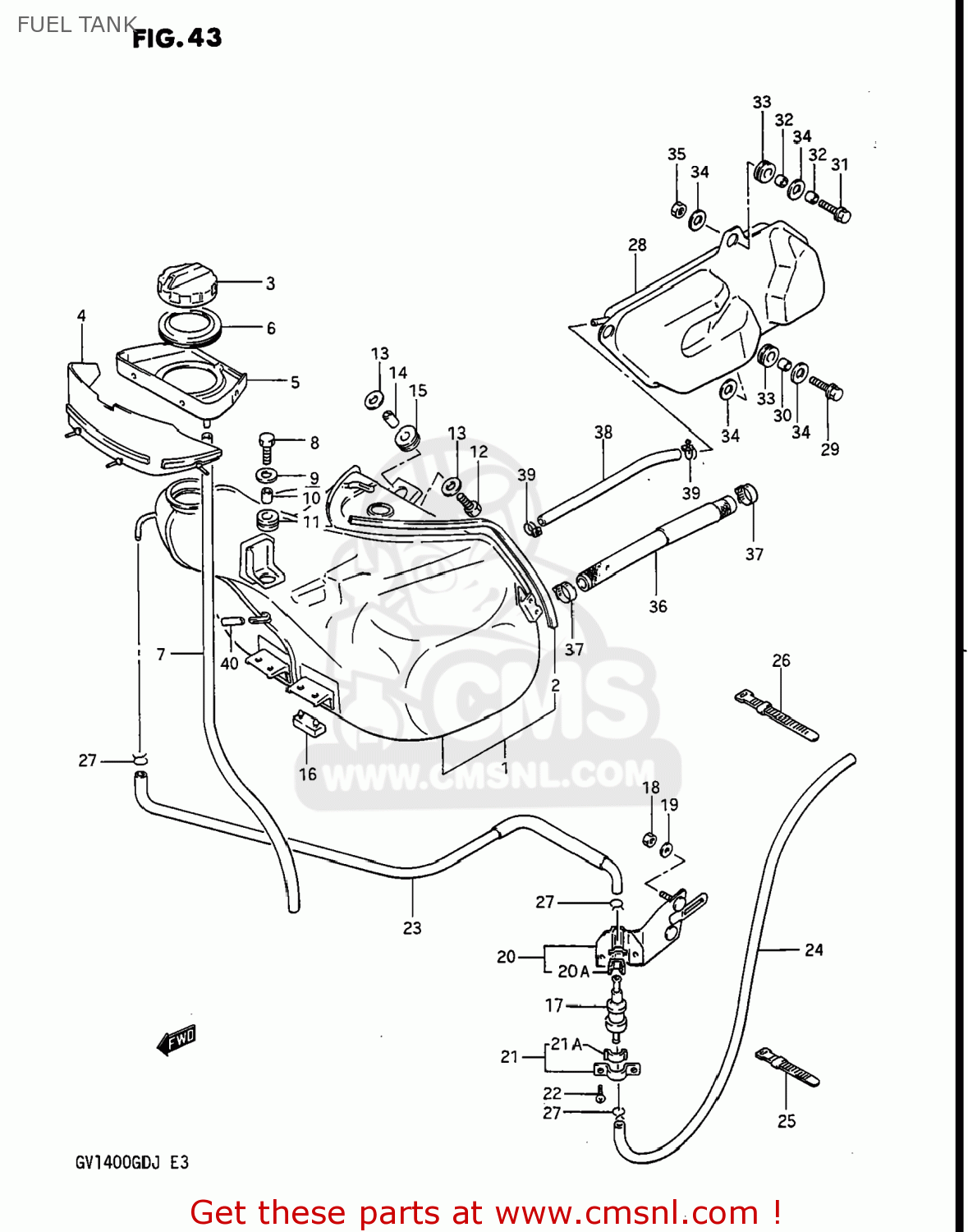

Fuel tank diagram GV1400GT CAVALCADE 1987 (H) USA (E03)
FUEL TANK GV1400GT CAVALCADE 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410024A00019
ref: 1
44100-24A01-019
TANK ASSEMBLY,FUEL
€ 814.00
2-1
6824124A00
ref: 2-1
44511-90500
MOLDING,FUEL TANK
€ 10.00
2-2
6824224A00
ref: 2-2
44511-90500
MOLDING, NO.2
€ 10.00
2-3
6824324A00
ref: 2-3
44511-90500
MOLDING, NO.3
€ 10.00
3
4420024A00
ref: 3
CAP ASSEMBLY,FUEL TANK
€ 43.50
4
4426224A00
ref: 4
COVER,FUEL INLET TRAY
€ 15.50
5
4411924A00
ref: 5
TRAY, FUEL INLET
€ 5.00
6
4426124A00
ref: 6
JOINT,FUEL INLET,TRAY
€ 5.00
7-1
0934307093
ref: 7-1
09352-70113-00B
HOSE
€ 24.50
7-2
0935270113655
ref: 7-2
09352-70113-00B
HOSE
€ 24.50
8
0110706206
ref: 8
01500-0620A
BOLT,M6X1X20
€ 2.00
9
0916006020
ref: 9
09160-06066
WASHER
€ 2.00
10-1
0918006038
ref: 10-1
SPACER(6.1X9X7.5)
€ 2.00
10-2
0918006103
ref: 10-2
SPACER(6.2X9X7.5)
€ 1.50
11
0932008007
ref: 11
09320-08021
CUSHION
€ 4.00
12
0110708258
ref: 12
01500-08257
BOLT
€ 2.50
13
0916008002
ref: 13
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
14
0918008077
ref: 14
09180-08198
SPACER (8.6X13.8X8)
€ 4.50
15
0932013005
ref: 15
CUSHION
€ 4.50
16
0932108013
ref: 16
CUSHION
€ 0.00
17
4424038A00
ref: 17
VALVE,FUEL TANK BREATHER
€ 35.00
18
0831921068
ref: 18
08319-2106A
NUT 6MM
€ 2.00
19
0916006056
ref: 19
WASHER(6.5X18X1)
€ 2.00
20A
4489424A00
ref: 20A
CUSHION
€ 1.50
20-1
4489024A00
ref: 20-1
44890-24A01
PLATE,FUEL TANK BREATHER
€ 0.00
20-2
4489024A01
ref: 20-2
PLATE,TANK BREATHER VALVE
€ 0.00
21
4489224A00
ref: 21
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
21A
4489424A00
ref: 21A
CUSHION
€ 1.50
22
0214204103
ref: 22
02142-0410A
SCREW
€ 1.50
23
0934305373
ref: 23
HOSE
€ 0.00
24
0934305414
ref: 24
HOSE
€ 3.50
25
0940714403
ref: 25
CLAMP(L:125)
€ 2.50
26
0940718401
ref: 26
CLAMP(L:187)
€ 2.00
27
0940111410
ref: 27
09401-11413
(CA) CLIP
€ 2.50
28
4911024A00
ref: 28
SUB TANK,FUEL
€ 98.00
29
0910308199
ref: 29
BOLT
€ 2.50
30
0918008001
ref: 30
09180-08189
SPACER (8.8X12X11)
€ 2.00
31
0151708405
ref: 31
01550-08407
BOLT 8X40
€ 3.50
32
0918008033
ref: 32
SPACER(8.4X12X12)
€ 2.50
33
0932011008
ref: 33
CUSHION
€ 3.00
34
0916008067
ref: 34
09160-08151
WASHER
€ 2.00
35
0831931085
ref: 35
08319-3108A
NUT
€ 2.50
36
0934313008
ref: 36
HOSE
€ 0.00
37-1
0940225501
ref: 37-1
09402-28511
CLAMP
€ 8.50
37-2
0940225502
ref: 37-2
09402-28511
CLAMP
€ 8.50
38
0934307185
ref: 38
HOSE
€ 0.00
39
0940215502
ref: 39
09402-17511
CLAMP
€ 8.00
40-1
0934408014
ref: 40-1
09351-80902-300
HOSE
€ 5.50
40-2
0935180902048
ref: 40-2
09351-80902-300
HOSE
€ 5.50
