TRAVEL TRUNK MARKER LAMP SET (OPTIONAL)

GV1400GT CAVALCADE 1987 (H) USA (E03)

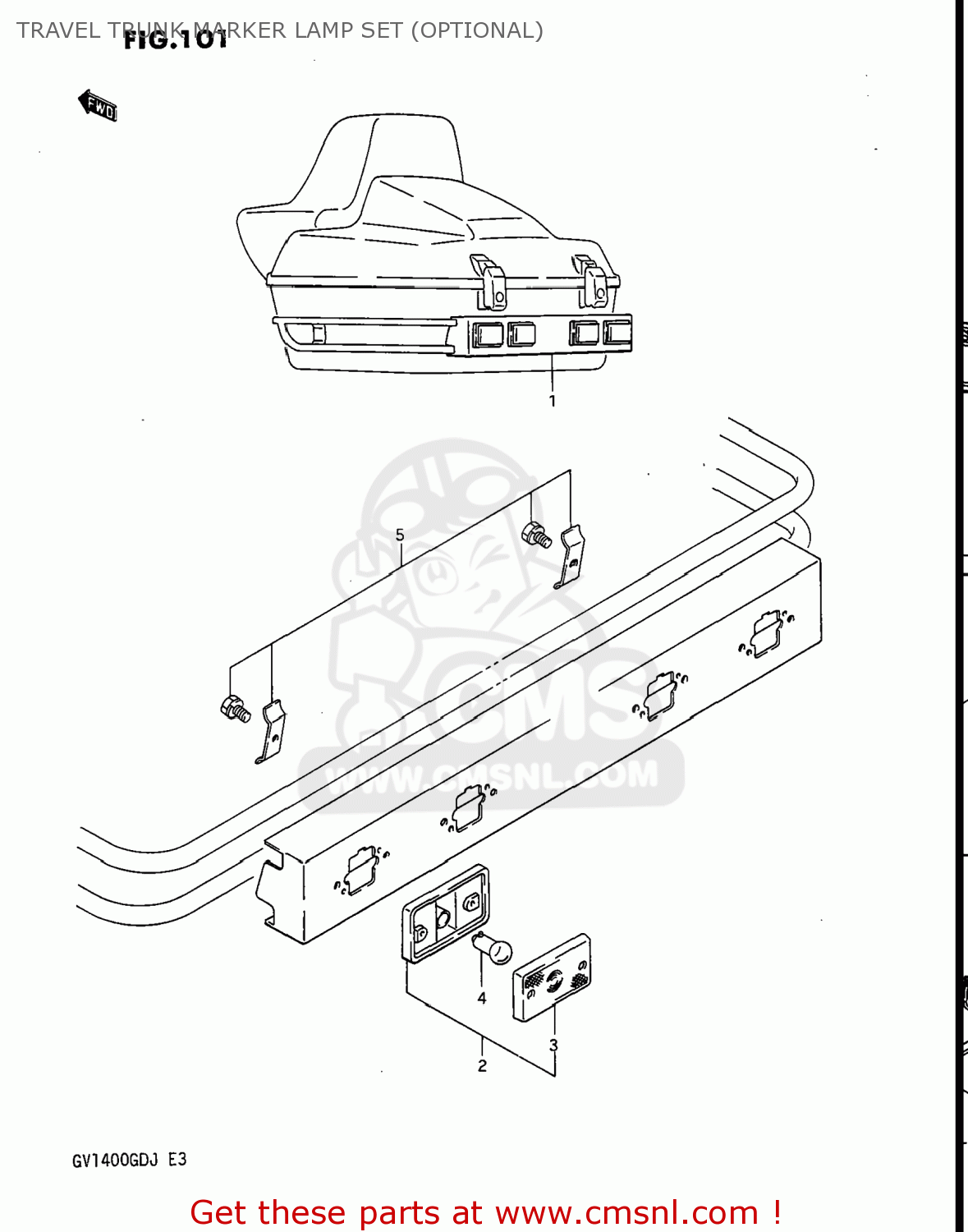

Travel trunk marker lamp set (optional) diagram GV1400GT CAVALCADE 1987 (H) USA (E03)

TRAVEL TRUNK MARKER LAMP SET (OPTIONAL) GV1400GT CAVALCADE 1987 (H) USA (E03)

TRAVEL TRUNK MARKER LAMP SET (OPTIONAL) GV1400GT CAVALCADE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3650024840
ref: 1

REAR END,MARKER LAMP S

€ 184.50

2

3657024A10
ref: 2

TRAVEL TRUNK,MARKER LAMP

€ 102.50

3

3657224A10
ref: 3

LENS

€ 9.50

4

0947112115
ref: 4

BULB 12V 3W

€ 2.50

5

9320024820
ref: 5

FITTING SET

€ 0.00
