CLUTCH MASTER CYLINDER

GV1400GT CAVALCADE 1987 (H) USA (E03)

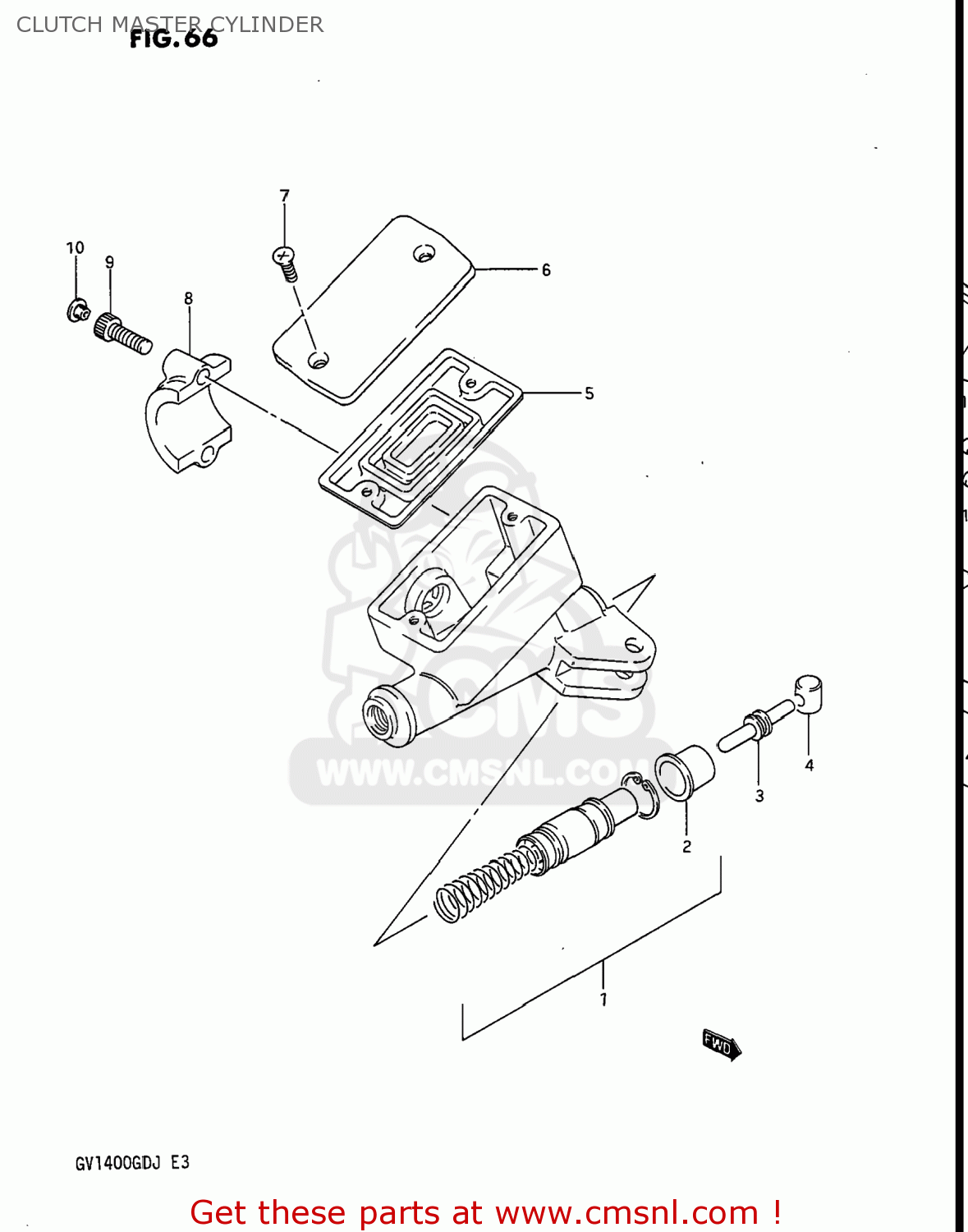

Clutch master cylinder diagram GV1400GT CAVALCADE 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

5980024A01
ref:
59800-24A02

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 237.00

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

5966644300
ref: 2

BOOT

€ 6.00

5987108A00
ref: 3

ROD,PUSH

€ 5.50

5989208A00
ref: 4

BUSH

€ 5.50

5966749460
ref: 5

5966749460

5966924A00
ref: 6

CAP

€ 30.50

6968949300
ref: 7

SCREW

€ 1.50

5967124A00
ref: 8

HOLDER,MASTER CYLINDER

€ 16.00

0711006205
ref: 9
07130-0620B

BOLT

€ 3.00

0925005009
ref: 10

CAP(OD:10)

€ 2.50
