FRAME UPPER COVER (MODEL H/J)

GV1400GT CAVALCADE 1987 (H) USA (E03)

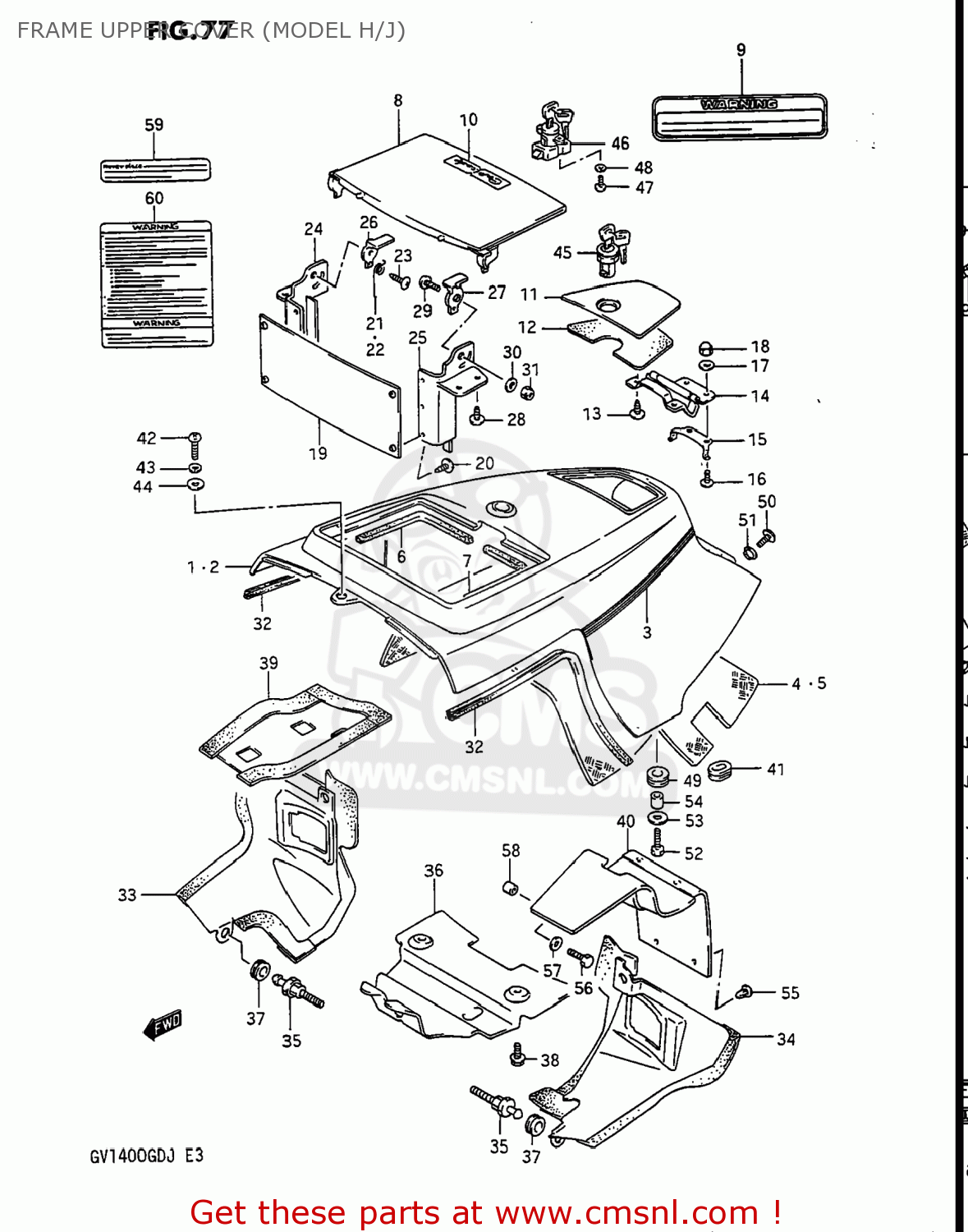

Frame upper cover (model h/j) diagram GV1400GT CAVALCADE 1987 (H) USA (E03)

FRAME UPPER COVER (MODEL H/J) GV1400GT CAVALCADE 1987 (H) USA (E03)
FRAME UPPER COVER (MODEL H/J) GV1400GT CAVALCADE 1987 (H) USA (E03)
FRAME UPPER COVER (MODEL H/J) GV1400GT CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4730024A0020H
ref: 1-1
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
1-2
4730024A0034B
ref: 1-2
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
1-3
4730024A0038G
ref: 1-3
47300-24A00-20H
COVER ASSEMBLY,FRAME,UPPER
€ 940.00
2-1
4730024A109EE
ref: 2-1
COVER ASSEMBLY,FRAME,UPPER
€ 909.50
2-1
4730024A109EE
ref: 2-1
COVER ASSEMBLY,FRAME,UPPER
€ 909.50
2-2
4730024A109EF
ref: 2-2
COVER ASSEMBLY,FRAME,UPPER
€ 0.00
2-2
4730024A109EF
ref: 2-2
COVER ASSEMBLY,FRAME,UPPER
€ 0.00
3-1
6819024A009EA
ref: 3-1
TAPE SET,UPPER COVER SIDE
€ 0.00
3-2
6819024A009EB
ref: 3-2
TAPE SET,UPPER COVER SIDE
€ 0.00
4-1
4731524A01
ref: 4-1
47315-24A02
CUSHION,FRAME COVER,UPPER
€ 46.00
4-2
4731524A02
ref: 4-2
CUSHION,FRAME COVER,UPPER
€ 46.00
5-1
4731624A01
ref: 5-1
47316-24A02
CUSHION,FRAME COVER,UPPER
€ 46.00
5-2
4731624A02
ref: 5-2
CUSHION,FRAME COVER,UPPER
€ 46.00
6
4739124A01
ref: 6
CUSHION,AUDIO LID SIDE
€ 0.00
7
4739224A01
ref: 7
CUSHION,AUDIO LID SIDE
€ 0.00
8-1
473002484020H
ref: 8-1
COVER ASSEMBLY,FRAME,UPPER
€ 275.00
8-2
473002484034B
ref: 8-2
COVER ASSEMBLY,FRAME,UPPER
€ 275.00
8-3
473002484012R
ref: 8-3
47300-24840-20H
COVER ASSEMBLY,FRAME,UPPER
€ 275.00
8-4
473002484034A
ref: 8-4
47300-24840-20H
COVER ASSEMBLY,FRAME,UPPER
€ 275.00
8-5
473002484038G
ref: 8-5
47300-24840-20H
COVER ASSEMBLY,FRAME,UPPER
€ 275.00
9
6861824A00
ref: 9
LABEL (WARNING COVER CO
€ 0.00
10
6828224A007ZW
ref: 10
EMBLEM,AUDIO LID
6828224A007ZW
€ 9.00
11-1
4738024A0020H
ref: 11-1
LID,FUEL
€ 28.00
11-2
4738024A0034B
ref: 11-2
LID,FUEL
€ 28.00
11-3
4738024A0012R
ref: 11-3
LID,FUEL
€ 28.00
11-4
4738024A0034A
ref: 11-4
LID,FUEL
€ 28.00
11-5
4738024A0038G
ref: 11-5
LID,FUEL
€ 28.00
12-1
4738524A00
ref: 12-1
47385-24A01
CUSHION,FUEL LID (NA)
€ 0.00
12-2
4738524A01
ref: 12-2
CUSHION,FUEL LID (NA)
€ 0.00
13
0354105083
ref: 13
03541-0508A
SCREW 5X8
0354105083
€ 2.00
14
4738224A01
ref: 14
HINGE,FUEL LID
€ 16.00
15
4738824A00
ref: 15
SPRING,FUEL LID HINGE
€ 6.00
16
0214204105
ref: 16
02142-0410A
SCREW
0214204105
€ 1.50
17
0832221045
ref: 17
08322-0104A
WASHER
€ 5.00
18
0831311045
ref: 18
NUT
€ 0.00
19
4763524A01
ref: 19
HOLDER,AUDIO LID
€ 15.00
20
0354105125
ref: 20
03541-0512A
SCREW
0354105125
€ 2.00
21
0944407001
ref: 21
SPRING
€ 0.00
22
0944407002
ref: 22
SPRING
0944407002
€ 2.50
23
0354104125
ref: 23
03541-0412A
SCREW
0354104125
€ 1.50
24
4763324A00
ref: 24
RAIL,RIGHT
€ 14.00
25
4763424A00
ref: 25
RAIL,LEFT
€ 13.50
26
4763124A01
ref: 26
RAIL PIECE,RIGHT
€ 8.50
27
4763224A01
ref: 27
RAIL PIECE,LEFT
€ 3.00
28
0354105108
ref: 28
03541-0510A
SCREW, RAIL
€ 1.50
29
0211205165
ref: 29
02112-05164
SCREW
0211205165
€ 2.00
30
0821205161
ref: 30
WASHER
0821205161
€ 1.50
31
0831921055
ref: 31
08319-2105A
NUT 8MM
0831921055
€ 1.50
32
4738924A01
ref: 32
MOLDING,COVER FRAME,UPPER
€ 8.00
33
4781024A01
ref: 33
COVER,INNER,RIGHT
€ 43.00
34
4782024A01
ref: 34
COVER,INNER,LEFT
€ 42.00
35
4725038A01
ref: 35
BOSS,FRAME COVER
4725038A01
€ 6.50
36
4785024A00
ref: 36
COVER COMP,INNER
€ 65.50
37
0932008013
ref: 37
CUSHION
0932008013
€ 4.00
38
0151706128
ref: 38
01550-06127
BOLT
€ 2.50
39
4783024A00
ref: 39
COVER COMP,UPPER,RIGHT
€ 20.00
40
4784024A00
ref: 40
COVER COMP,UPPER,LEFT
€ 29.50
41
0930805019
ref: 41
GROMMET
0930805019
€ 8.00
42
0211206203
ref: 42
02112-0620A
SCREW, 6X20
0211206203
€ 2.00
43
0832121063
ref: 43
08321-0106A
LOCK WASHER
€ 2.00
44
0916006039
ref: 44
09160-06109
WASHER (6.5X18X1.6)
0916006039
€ 2.00
45
9570024820
ref: 45
LOCK SET,TOOL HOLDER
9570024820
€ 61.50
46
9570024A21KEY
ref: 46
95700-24880
LOCK ASSEMBLY,AUDIO LID
€ 69.00
47
0211203087
ref: 47
SCREW
€ 1.50
48
0832121038
ref: 48
09162-03001
LOCK WASHER
€ 1.50
49
0932008018
ref: 49
CUSHION
0932008018
€ 4.00
50
0214206164
ref: 50
02142-0616A
SCREW
0214206164
€ 2.50
51
0916906034
ref: 51
09169-06071
WASHER
0916906034
€ 2.50
52
0110706256
ref: 52
01500-0625A
BOLT
€ 2.50
53
0832221066
ref: 53
08322-0106B
WASHER, LOWER
0832221066
€ 2.00
54
0918006044
ref: 54
09180-06248
SPACER (6.1X8X9.5)
0918006044
€ 2.50
55
0922906004
ref: 55
RIVET
€ 0.00
56
0110706207
ref: 56
01500-06207
BOLT
0110706207
€ 2.00
57
0916006052
ref: 57
WASHER(6.5X16X1.2)
0916006052
€ 2.00
58
0918006141
ref: 58
09180-06141-XC0
SPACER (6.5X12X8)
€ 4.00
59
6861424A01
ref: 59
LABEL (WARNING AUDIO BO
€ 0.00
60
6861624A20
ref: 60
LABEL (WARNING)
€ 0.00
