CARBURETOR FITTINGS

GV1400GT CAVALCADE 1988 (J) USA (E03)

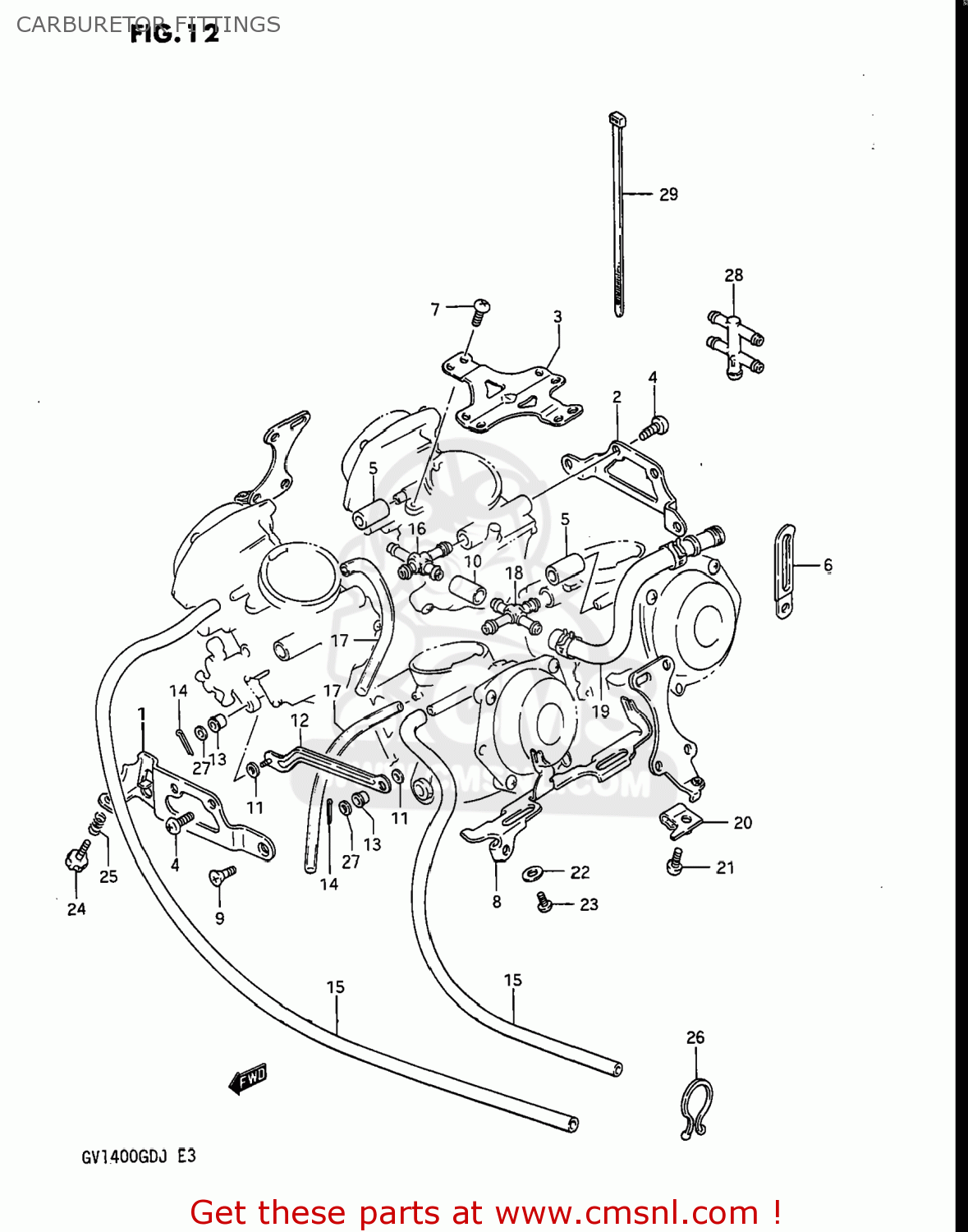

Carburetor fittings diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

CARBURETOR FITTINGS GV1400GT CAVALCADE 1988 (J) USA (E03)

CARBURETOR FITTINGS GV1400GT CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1362805A10
ref: 1

PLATE

€ 0.00

2

1362805A20
ref: 2

PLATE

€ 0.00

3

1362805A30
ref: 3

PLATE

€ 0.00

4

0211206126
ref: 4
02112-0612A

SCREW

€ 1.50

5

1368349160
ref: 5
09354-65113-600

HOSE,CARBURETOR

€ 26.00

6

1367105A20
ref: 6
09404-06433

CLIP

€ 3.00

7

0211205106
ref: 7
02112-0510A

SCREW 5X10

€ 2.00

8

1342224A00
ref: 8

LEVER

€ 0.00

9

1360305A10
ref: 9
02112-06127

SCREW

€ 2.00

10

1368305A60
ref: 10
44421-12FR0

HOSE

€ 26.00

11

1358995210
ref: 11

WASHER,CHOKE LEVER

€ 4.00

12

1339805A10
ref: 12

PLATE

€ 0.00

13

1355705A10
ref: 13

RING

€ 6.00

14

1359505A00
ref: 14

COTTER

€ 0.00

15-1

1368405A10
ref: 15-1
09352-50823-00B

HOSE

€ 13.00

15-2

1368424A20
ref: 15-2
09352-50823-00B

HOSE

€ 13.00

16

1368505A10
ref: 16

NIPPLE

€ 20.50

17

1368305A10
ref: 17
09351-30503-600

HOSE

€ 6.50

18

1368505A20
ref: 18

NIPPLE

€ 0.00

19

1351205A10
ref: 19

HOSE ASSEMBLY

€ 0.00

20

1342124A00
ref: 20

PLATE

€ 0.00

21

0211205126
ref: 21
02112-0512A

SCREW 5X12

€ 1.50

22

1333205A20
ref: 22

WASHER

€ 3.00

23

0215204108
ref: 23
02142-0410A

SCREW

€ 1.50

24

1326737230
ref: 24

ADJUSTER,THROTTLE

€ 9.50

25

1327193011
ref: 25

SPRING

€ 4.50

26

0940800031
ref: 26

CLIP

€ 1.50

27

1359805A00
ref: 27

WASHER

€ 3.50

28

1327105A00
ref: 28

SPRING

€ 0.00

29

1369205A20
ref: 29

CLAMP

€ 4.50
