Buy Suzuki GV Parts Online


RIGHT HANDLE SWITCH (GV1400GTG)

GV1400GT CAVALCADE 1988 (J) USA (E03)

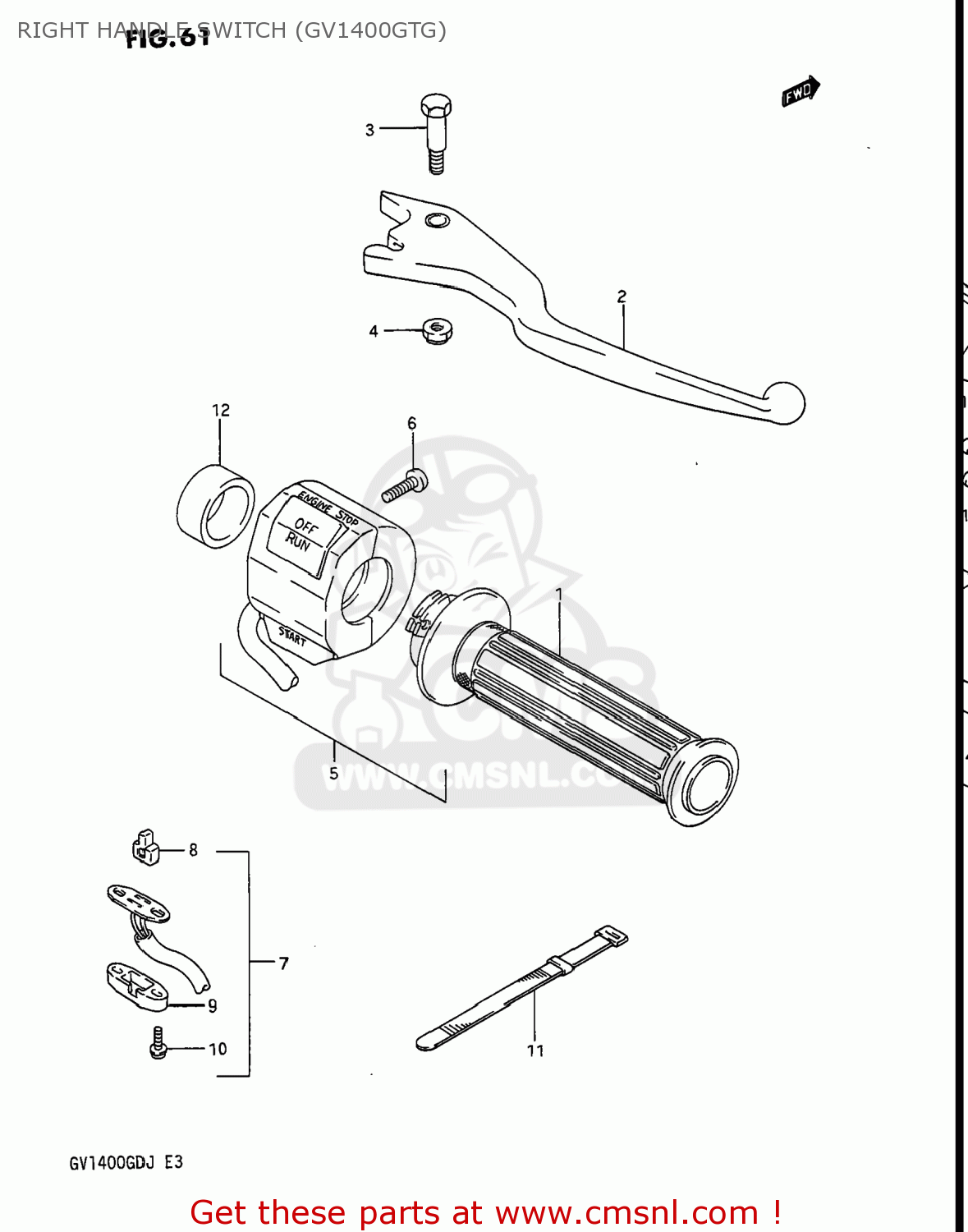

Right handle switch (gv1400gtg) diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

RIGHT HANDLE SWITCH (GV1400GTG) GV1400GT CAVALCADE 1988 (J) USA (E03)
RIGHT HANDLE SWITCH (GV1400GTG) GV1400GT CAVALCADE 1988 (J) USA (E03)
RIGHT HANDLE SWITCH (GV1400GTG) GV1400GT CAVALCADE 1988 (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5711024A00
ref: 1
57110-24A01
GRIP,THROTTLE
€ 10.00
2
5742024A00
ref: 2
LEVER,BRAKE
5742024A00
€ 17.00
3
5743105A00
ref: 3
BOLT,LEVER
5743105A00
€ 8.50
4
0831921065
ref: 4
08319-2106B
NUT
0831921065
€ 2.50
5
3720005A62
ref: 5
SWITCH ASSY,HANDLE RH
€ 0.00
6
0211205205
ref: 6
02112-0520B
SCREW 5X20
0211205205
€ 2.50
7-1
5746049300
ref: 7-1
57460-45500
SWITCH ASSEMBLY
5746049300
€ 40.00
7-2
5746024A00
ref: 7-2
57460-45500
SWITCH ASSEMBLY
€ 40.00
8
5746518601
ref: 8
CONTACT,SWITCH
5746518601
€ 4.50
9
5748133010
ref: 9
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
10
0912503105
ref: 10
09125-03105-XC0
SCREW
0912503105
€ 2.50
11
0940718401
ref: 11
CLAMP(L:187)
0940718401
€ 2.00
12
5969424A00
ref: 12
BOLT,MASTER CYLINDER H
€ 0.00
