CB RADIO KIT (OPTIONAL)

GV1400GT CAVALCADE 1988 (J) USA (E03)

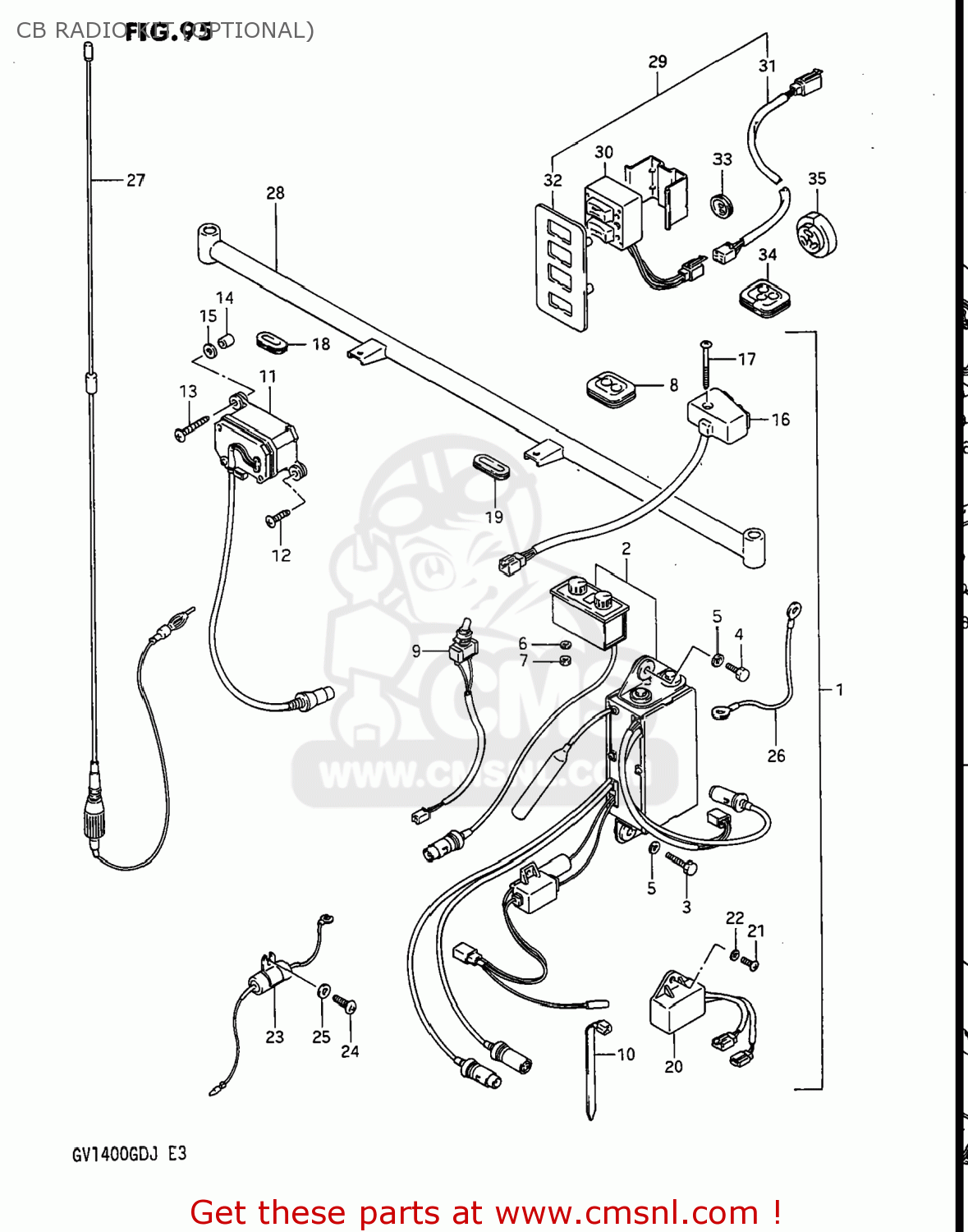

Cb radio kit (optional) diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

CB RADIO KIT (OPTIONAL) GV1400GT CAVALCADE 1988 (J) USA (E03)

CB RADIO KIT (OPTIONAL) GV1400GT CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3880024824
ref: 1

RADIO SET,CB

€ 1,068.00

2

3880024A00
ref: 2

CB TRANSCEIVER SET

€ 1,069.00

3

0110705166
ref: 3
01500-0516B

BOLT

€ 1.50

4

0110705106
ref: 4
01500-0510B

BOLT

€ 1.50

5

0832121056
ref: 5
08321-0105A

LOCK WASHER

€ 3.00

6

0832121046
ref: 6
08321-0104A

LOCK WASHER

€ 2.00

7

0831011046
ref: 7
08310-0004A

NUT M4 DIN 985

€ 2.00

8

0930920003
ref: 8

GROMMET

€ 0.00

9

3889024A00
ref: 9

SWITCH ASSEMBLY,CB BACK UP

€ 0.00

10

0940718402
ref: 10

CLAMP(L:165)

€ 2.50

11

3928024A02
ref: 11

INDICATOR ASSEMBLY,CB CHANNEL

€ 247.50

12

0324204169
ref: 12

SCREW

€ 4.50

13

0354104308
ref: 13

SCREW

€ 2.00

14

0918005025
ref: 14
09180-05049

SPACER (5.2X8X12.5)

€ 1.50

15

0916004014
ref: 15
09160-04026

WASHER (4X16X1.2)

€ 1.50

16

3787024A10
ref: 16

SWITCH ASSEMBLY,CB CHANNEL SELECT

€ 49.50

17

3787524A10
ref: 17

SWITCH

€ 0.00

18

9586724A00
ref: 18

GROMMET

€ 10.50

19

9586724A10
ref: 19

GROMMET

€ 0.00

20

3355224A10
ref: 20

FILTER,FAN MOTOR NOISE

€ 65.50

21

0211204085
ref: 21
02112-0408A

SCREW

€ 2.00

22

0832221045
ref: 22
08322-0104A

WASHER

€ 5.00

23

3355124A11
ref: 23

CONDENSER,CB UNIT

€ 0.00

24

0211206108
ref: 24
02112-06107

SCREW

€ 1.50

25

0832221067
ref: 25
08322-01067

WASHER

€ 2.00

26

3685124A10
ref: 26

WIRE

€ 0.00

27

3926024A01
ref: 27

ANTENNA ASSY,CB TRANSCIVER

€ 115.00

28-1

9586024A92
ref: 28-1
95860-24A81

HOLDER,ANTENNA BAR

€ 35.50

28-2

9586024A81
ref: 28-2

HOLDER,ANTENNA BAR

€ 35.50

29-1

3780024830
ref: 29-1

CB CO-RIDER REMOTE CONTROL SWITCH

€ 44.00

29-2

3780024841
ref: 29-2

CB CO-RIDER REMOTE CONTROL SWITCH

€ 55.50

30-1

3787024A20
ref: 30-1

SWITCH

€ 0.00

30-2

3787024A31
ref: 30-2

SWITCH,CHANNEL SELECT

€ 36.50

31

3685424A20
ref: 31

WIRE,CB SELECT SWITCH

€ 0.00

32-1

4548024A90
ref: 32-1

PANEL,TUNER ASSEMBLY NO

€ 0.00

32-2

4548024A80
ref: 32-2

PANEL COMP,TUNER ASSEMBLY

€ 0.00

33

4542624A90
ref: 33

GROMMET, WIRE

€ 0.00

34

4542624A70
ref: 34

GROMMET WIRE

€ 0.00

35

4542624A80
ref: 35

GROMMET WIRE

€ 0.00
