Buy Suzuki GV Parts Online


SIDE BAG (GV1400GDG/GTG)

GV1400GT CAVALCADE 1988 (J) USA (E03)

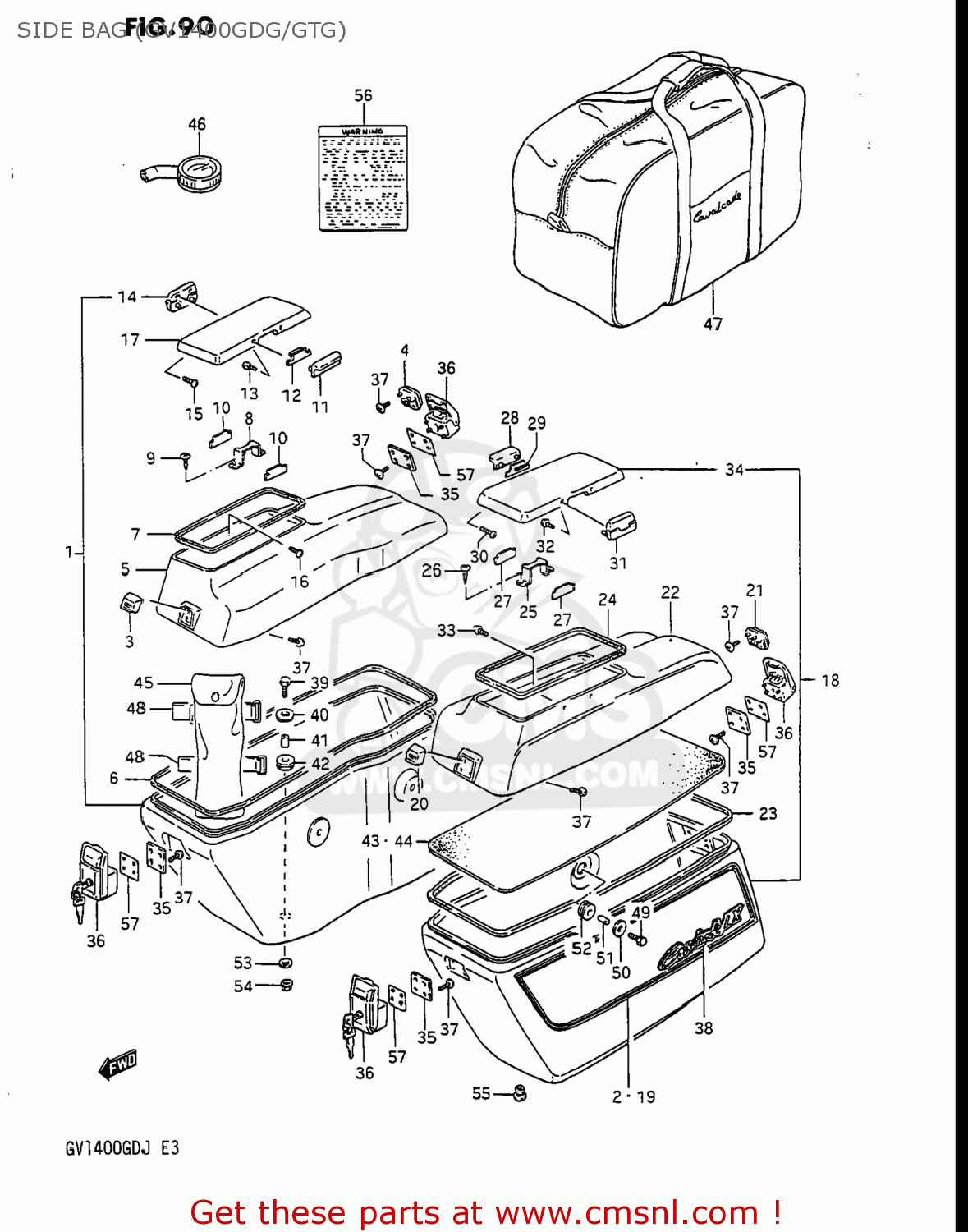

Side bag (gv1400gdg/gtg) diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

SIDE BAG (GV1400GDG/GTG) GV1400GT CAVALCADE 1988 (J) USA (E03)
SIDE BAG (GV1400GDG/GTG) GV1400GT CAVALCADE 1988 (J) USA (E03)
SIDE BAG (GV1400GDG/GTG) GV1400GT CAVALCADE 1988 (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9540024A007UM
ref: 1-1
95400-24A01-7UM
SIDE BAG ASSEMBLY,RIGHT
€ 1,378.50
1-2
9540024A007UN
ref: 1-2
95400-24A01-7UN
SIDE BAG ASSEMBLY,RIGHT
€ 1,416.50
1-3
9540024A1012S
ref: 1-3
95400-24A11-12S
SIDE BAG ASSEMBLY,RIGHT
€ 359.50
1-4
9540024A1024K
ref: 1-4
95400-24A11-24K
SIDE BAG ASSEMBLY,RIGHT
€ 359.50
2-1
6826024A007UP
ref: 2-1
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-2
6826024A007UR
ref: 2-2
TAPE SET,SIDE BAG,RIGHT
€ 33.00
2-3
6826024A1078V
ref: 2-3
TAPE SET,SIDE BAG,RIGHT
€ 0.00
2-4
6826024A107US
ref: 2-4
TAPE SET,SIDE BAG,RIGHT
€ 0.00
3
9331624A00
ref: 3
93316-24A02
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A10
ref: 4
93316-24A13
PLATE,SIDE BAG LID LOCK
€ 15.00
5-1
9544024A0024G
ref: 5-1
LID,SIDE BAG,RIGHT
€ 433.50
5-2
9544024A0024H
ref: 5-2
LID,SIDE BAG,RIGHT
€ 433.50
5-3
9544024A0012S
ref: 5-3
95440-24A10-24D
LID,SIDE BAG,RIGHT
€ 433.50
5-4
9544024A0024K
ref: 5-4
LID,SIDE BAG,RIGHT
€ 0.00
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A01
ref: 7
95446-24A02
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
9551624A00
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A00
ref: 10
95423-24A10
PLATE,LID LOCK
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
9544724A00
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
02142-0406A
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
9544324A00
€ 47.00
15
0214204065
ref: 15
02142-0406A
SCREW
€ 1.50
16
0214204125
ref: 16
02142-0412A
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
9544824A00
€ 65.50
18-1
9550024A007UM
ref: 18-1
95500-24A01-7UM
SIDE BAG ASSEMBLY,LEFT
€ 312.50
18-2
9550024A007UN
ref: 18-2
95500-24A01-7UN
SIDE BAG ASSEMBLY,LEFT
€ 1,507.00
18-3
9550024A1012S
ref: 18-3
95500-24A11-12S
SIDE BAG ASSEMBLY,LEFT
€ 379.50
18-4
9550024A1024K
ref: 18-4
95500-24A11-24K
SIDE BAG ASSEMBLY,LEFT
€ 368.50
19-1
6829024A007UP
ref: 19-1
TAPE SET, SIDE BAG LH
€ 0.00
19-2
6829024A007UR
ref: 19-2
TAPE SET,SIDE BAG,LEFT
€ 0.00
19-3
6829024A1078V
ref: 19-3
TAPE SET
€ 0.00
19-4
6829024A107US
ref: 19-4
TAPE SET,SIDE BAG,LEFT
€ 0.00
19-4
6829024A107US
ref: 19-4
TAPE SET,SIDE BAG,LEFT
€ 0.00
19-4
6829024A107US
ref: 19-4
TAPE SET,SIDE BAG,LEFT
€ 0.00
19-4
6829024A107US
ref: 19-4
TAPE SET,SIDE BAG,LEFT
€ 0.00
20
9331624A00
ref: 20
93316-24A02
PLATE,TRUNK LID LOCK
€ 15.00
21
9331624A10
ref: 21
93316-24A13
PLATE,SIDE BAG LID LOCK
€ 15.00
22-1
9554024A0024G
ref: 22-1
LID,SIDE BAG,LEFT
€ 389.50
22-2
9554024A0024H
ref: 22-2
LID,SIDE BAG,LEFT
€ 346.50
22-3
9554024A0012S
ref: 22-3
LID,SIDE BAG,LEFT
€ 0.00
22-4
9554024A0024K
ref: 22-4
LID,SIDE BAG,LEFT
€ 0.00
23
9542224A01
ref: 23
SEAL,SIDE BAG
€ 10.50
24
9544624A01
ref: 24
95446-24A02
SEAL,SIDE BAG
€ 9.00
25
9551624A00
ref: 25
HOLDER,LID LOCK MAGNET
9551624A00
€ 4.00
26
0351103125
ref: 26
SCREW
€ 0.00
27
9542324A00
ref: 27
95423-24A10
PLATE,LID LOCK
€ 4.00
28
9544724A00
ref: 28
LEVER,SIDE POCKET OPEN
9544724A00
€ 19.50
29
9542424A00
ref: 29
PLATE,LID LOCK NO.1
€ 4.50
30
0214204065
ref: 30
02142-0406A
SCREW
€ 1.50
31
9544324A00
ref: 31
HINGE,LID SIDE BAG POCKET
9544324A00
€ 47.00
32
0214204065
ref: 32
02142-0406A
SCREW
€ 1.50
33
0214204125
ref: 33
02142-0412A
SCREW
€ 1.50
34
9544824A00
ref: 34
LID,SIDE BAG POCKET
9544824A00
€ 65.50
35
9312424A00
ref: 35
SET PLATE,LOCK SIDE BA
€ 5.00
36
9331024A00KEY
ref: 36
93300-24820
LOCK ASSY, SIDE BAG
€ 96.50
37
0214205085
ref: 37
02142-0508A
SCREW
0214205085
€ 2.00
38-1
6826124A10
ref: 38-1
EMBLEM,SIDE BAG,RIGHT
€ 29.00
38-2
6826124A00
ref: 38-2
EMBLEM,SIDE BAG,LEFT
6826124A00
€ 20.00
39
0110706307
ref: 39
01500-06307
BOLT 6X30
€ 2.50
40
0916006030
ref: 40
09160-06136
WASHER (6.5X29X1.6)
0916006030
€ 2.50
41
0918006055
ref: 41
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
42
0932009017
ref: 42
CUSHION
0932009017
€ 3.00
43
9541624A00
ref: 43
SEAT, BOTTOM RH
€ 13.50
44
9541724A00
ref: 44
SEAT, BOTTOM LH
€ 13.50
45
0980000293
ref: 45
TOOL ASSY
€ 448.50
46-1
9620041330
ref: 46-1
GAUGE ASSY,AIR PRESSURE
9620041330
€ 77.50
46-2
9620024A00
ref: 46-2
GAUGE ASSEMBLY,AIR PRESSURE
€ 0.00
47
9545024A00
ref: 47
95450-24A01
LUGGAGE BAG,SIDE BAG
€ 131.50
48
0946200040
ref: 48
BAND
0946200040
€ 4.50
48
0946200040
ref: 48
BAND
0946200040
€ 4.50
48
0946200040
ref: 48
BAND
0946200040
€ 4.50
48
0946200040
ref: 48
BAND
0946200040
€ 4.50
49
0120406307
ref: 49
BOLT
0120406307
€ 0.50
50
0916006030
ref: 50
09160-06136
WASHER (6.5X29X1.6)
0916006030
€ 2.50
51
0918006055
ref: 51
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
52
0932009017
ref: 52
CUSHION
0932009017
€ 3.00
53
0916006013
ref: 53
09160-06121
WASHER (6.5X18X2)
0916006013
€ 10.50
54
0831931067
ref: 54
NUT
0831931067
€ 2.50
55
0925008013
ref: 55
CAP(OD:12)
0925008013
€ 2.00
56
6861324A02
ref: 56
LABEL (WARNING)
€ 0.00
57
9331424A00
ref: 57
93314-24A01
PACKING SEAT
€ 3.50
57
9331424A00
ref: 57
93314-24A01
PACKING SEAT
€ 3.50
57
9331424A00
ref: 57
93314-24A01
PACKING SEAT
€ 3.50
57
9331424A00
ref: 57
93314-24A01
PACKING SEAT
€ 3.50
