CLUTCH

GV1400GT CAVALCADE 1988 (J) USA (E03)

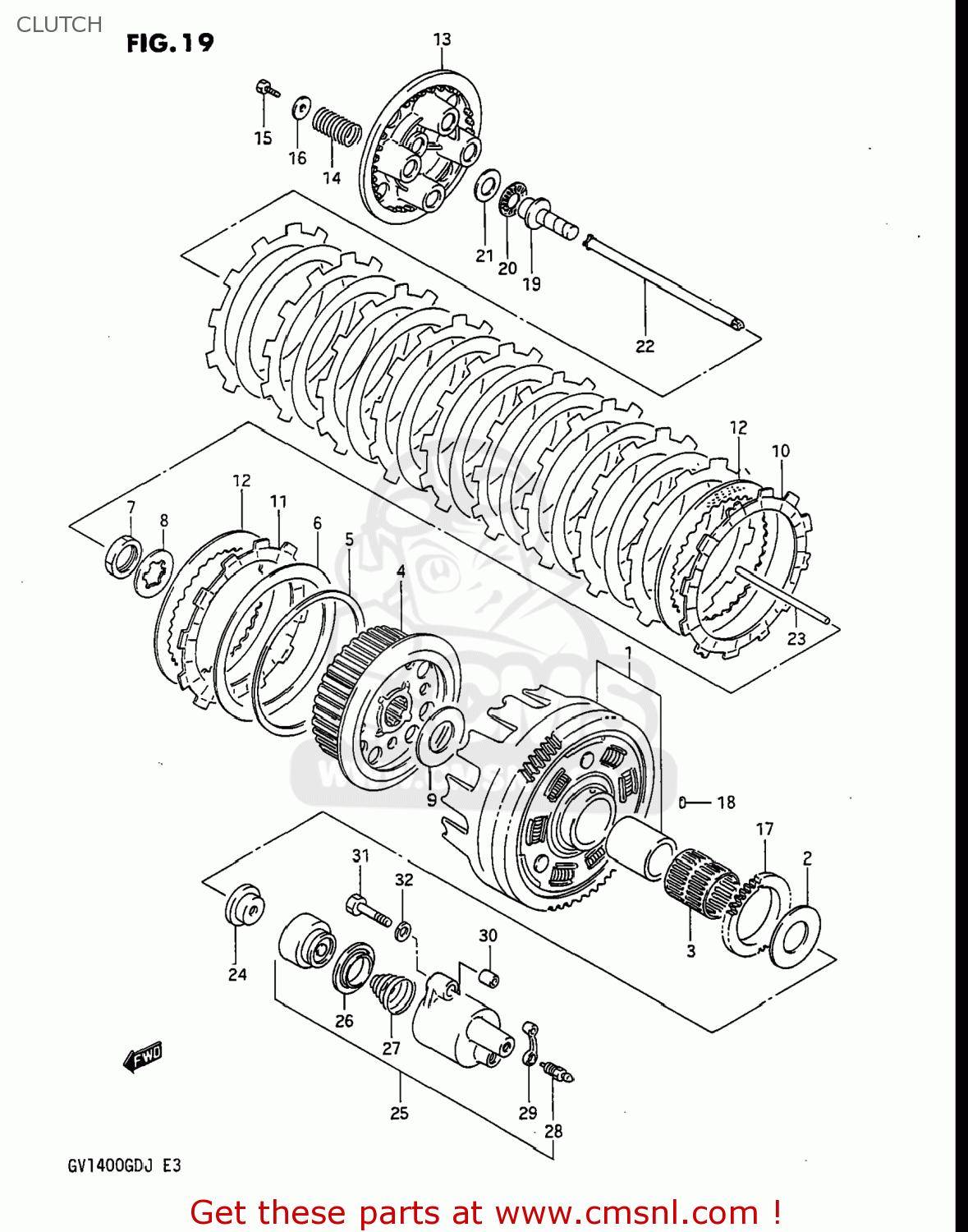

Clutch diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

CLUTCH GV1400GT CAVALCADE 1988 (J) USA (E03)

CLUTCH GV1400GT CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120024821
ref: 1
21200-24822

GEAR ASSEMBLY,PRIMARY DRIVE

€ 300.00

2

0916025062
ref: 2
09160-25067

WASHER

€ 9.00

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141024A00
ref: 4

HUB COMP,CLUTCH SLEEVE

€ 82.50

5

2147137400
ref: 5

SEAT,WAVE WASHER(T:1.4)

€ 8.00

6

0916400004
ref: 6

WASHER

€ 9.00

7

0914024007
ref: 7

NUT

€ 4.50

8

0916725007
ref: 8

WASHER,LOCK

€ 7.50

9

0916025056
ref: 9

WASHER(25X50X2.5)

€ 9.50

10

2144107A00
ref: 10
21441-12D01

PLATE,CLUTCH DRIVE

€ 16.50

11

2144237401
ref: 11

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

12

2145114A00
ref: 12

PLATE,CLUTCH DRIVEN(T:1.6) (NAS)

€ 6.50

13

2146205A01
ref: 13
21462-20A01

DISC,CLUTCH PRESSURE

€ 35.00

14

0944020013
ref: 14

SPRING

€ 5.00

15

0110706167
ref: 15
01500-06167

BOLT

€ 3.00

16

0916006020
ref: 16
09160-06066

WASHER

€ 2.00

17

1632105A00
ref: 17

GEAR,OIL PUMP DRIVE

€ 38.00

18

0926106002
ref: 18

PIN(6X6)

€ 1.50

19

2312144100
ref: 19

PIECE,CLUTCH PUSH

€ 21.50

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015015
ref: 21
09160-15045

WASHER

€ 4.00

22

2311038400
ref: 22

ROD,CLUTCH PUSH

€ 16.00

23

2311124A01
ref: 23

ROD,CLUTCH PUSH,L

€ 15.00

24

0928506016
ref: 24

SEAL,OIL(6X36X6)

€ 16.00

25

2316005A02
ref: 25

CYLINDER,CLUTCH RELEASE

€ 121.50

26

2316305A00
ref: 26

CUP,CLUTCH CYLINDER

€ 7.50

27

2316405A00
ref: 27

SPRING,CLUTCH CYLINDER

€ 3.50

28

5912101A00
ref: 28

BLEEDER

€ 8.50

29

5912201A00
ref: 29

CAP,BLEEDER

€ 4.50

30

0421109129
ref: 30

PIN

€ 2.00

31

0110706356
ref: 31
01500-0635A

BOLT ,6X35

€ 2.50

32

0832121066
ref: 32
08321-0106A

WASHER,LOCK

€ 2.00
