RADIATOR

GV1400GT CAVALCADE 1988 (J) USA (E03)

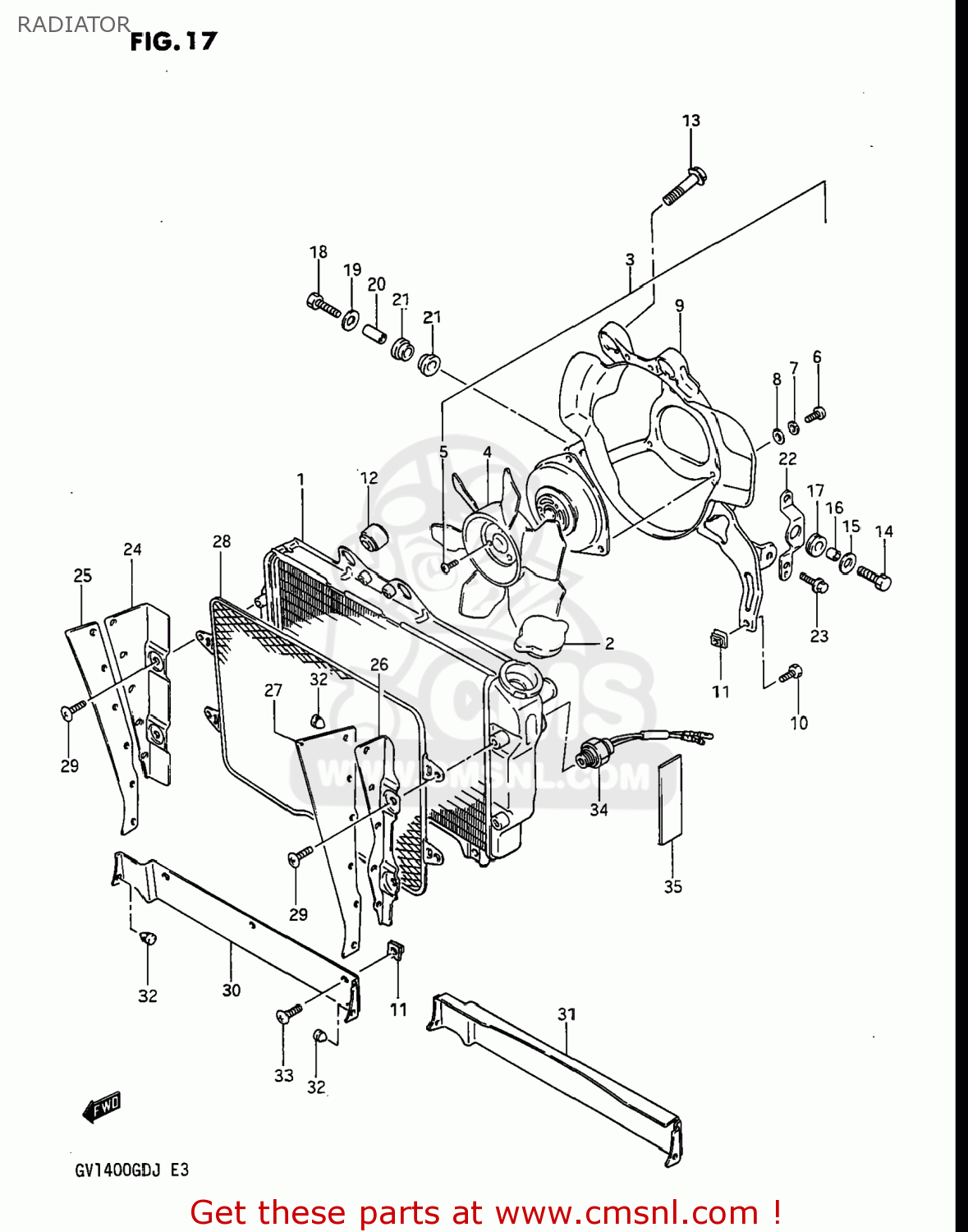

Radiator diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

RADIATOR GV1400GT CAVALCADE 1988 (J) USA (E03)

RADIATOR GV1400GT CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771024A00
ref: 1

RADIATOR,WATER

€ 852.50

2

1773024A00
ref: 2
17730-08J00

CAP,RADIATOR

€ 40.00

3

1780024A00
ref: 3

FAN ASSEMBLY,RADIATOR

€ 416.00

4

1782024A00
ref: 4

FAN

€ 55.50

5

1780105A00
ref: 5
02112-0406B

BOLT

€ 2.00

6

0211205106
ref: 6
02112-0510A

SCREW 5X10

€ 2.00

7

0832121056
ref: 7
08321-0105A

LOCK WASHER

€ 3.00

8

0832221056
ref: 8
08322-0105A

WASHER

€ 2.50

9

1777124A00
ref: 9

SHROUD

€ 124.00

10

1770105A00
ref: 10

BOLT,RADIATOR FAN

€ 2.00

11

1770205A00
ref: 11

NUT,RADIATOR

€ 2.50

12

1778005A00
ref: 12

CUSHION,RADIATOR NO.1

€ 7.50

13

0151708355
ref: 13
01550-0835A

BOLT

€ 3.50

14

0110706166
ref: 14
01500-0616A

BOLT

€ 2.00

15

0916006057
ref: 15
09160-06109

WASHER

€ 2.00

16

0918007005
ref: 16
09180-06259

SPACER (7X9X7)

€ 2.50

17

0932008032
ref: 17
09320-08021

CUSHION

€ 3.00

18

0910006033
ref: 18

BOLT(6X35)

€ 12.50

19

0916006012
ref: 19
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

20

0918006107
ref: 20
09180-06308

SPACER (6.4X9X20)

€ 3.00

21

0932009013
ref: 21

CUSHION

€ 2.50

22

1774124A00
ref: 22

BRACKET COMP,RADIATOR

€ 0.00

23

0151706167
ref: 23
01550-06167

BOLT 6X16

€ 1.50

24

1775124A00
ref: 24

PLATE,RADIATOR,RIGHT

€ 7.50

25

1775224A01
ref: 25

SEAL,RADIATOR,RIGHT

€ 10.00

26

1776124A00
ref: 26

PLATE,RADIATOR,LEFT

€ 8.00

27

1776224A01
ref: 27

COVER,RADIATOR

€ 16.00

28

1779024A00
ref: 28

NET,RADIATOR

€ 35.00

29

0214206085
ref: 29
02142-0608A

SCREW

€ 1.50

30

1776524A00
ref: 30
17765-24A10

COVER

€ 9.50

31

1776524A10
ref: 31

COVER,RADIATOR,LOWER

€ 9.50

32

0932106013
ref: 32

CUSHION

€ 2.50

33

0214206104
ref: 33
02142-0610A

SCREW

€ 2.00

34-1

1768024A01
ref: 34-1
17680-24A02

SWITCH

€ 106.50

34-2

1768024A10
ref: 34-2
17680-32C00

SWITCH

€ 73.50

35-1

1768524A00
ref: 35-1
17685-24A01

COVER,FAN SWITCH

€ 2.00

35-2

1768524A01
ref: 35-2

COVER,FAN SWITCH

€ 2.00
