RADIATOR HOSE - RESERVE TANK

GV1400GT CAVALCADE 1988 (J) USA (E03)

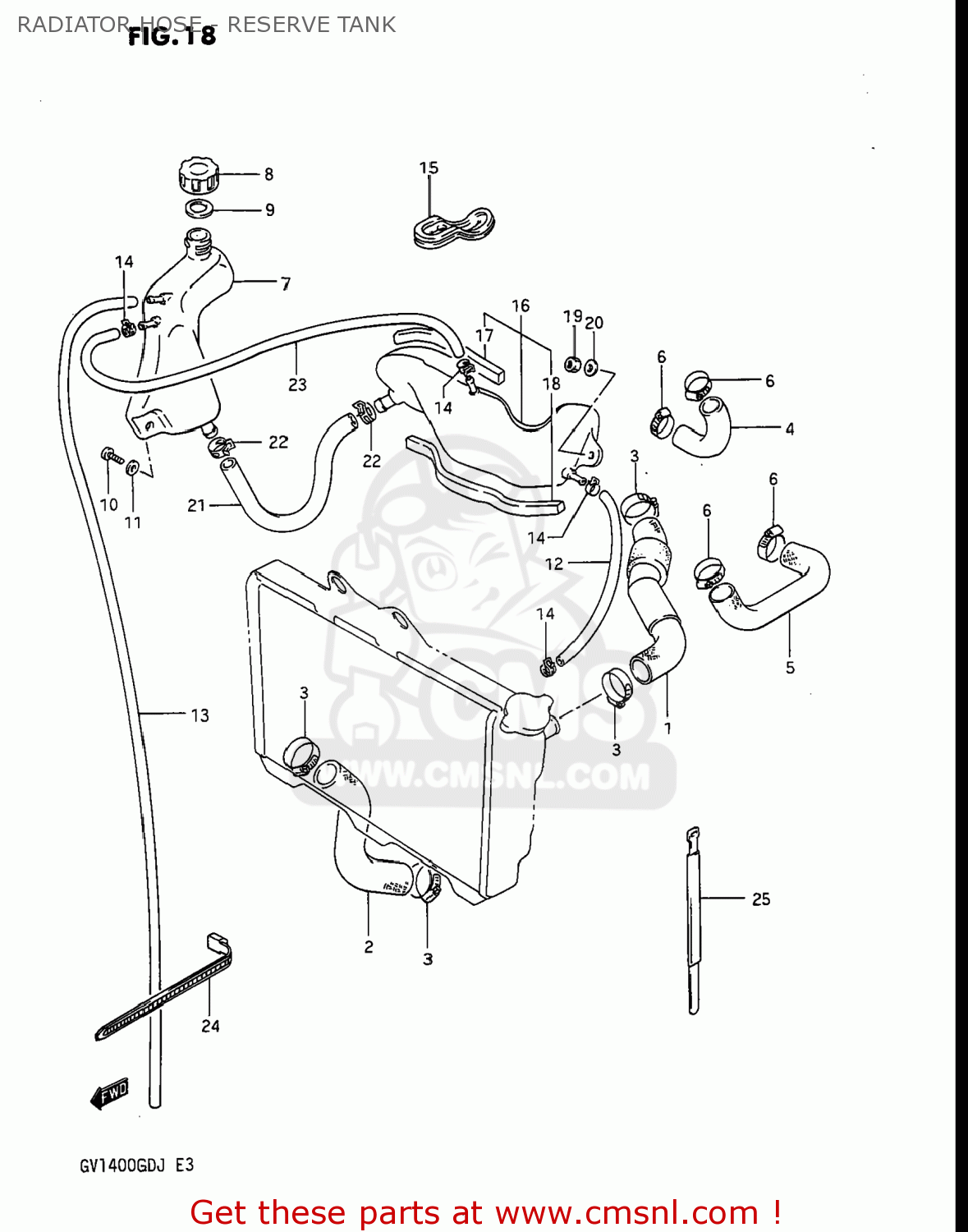

Radiator hose - reserve tank diagram GV1400GT CAVALCADE 1988 (J) USA (E03)

RADIATOR HOSE - RESERVE TANK GV1400GT CAVALCADE 1988 (J) USA (E03)

RADIATOR HOSE - RESERVE TANK GV1400GT CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1785124A00
ref: 1

HOSE,RADIATOR INLET

€ 16.50

2-1

1785224A01
ref: 2-1

HOSE,RADIATOR OUTLET

€ 22.00

2-2

1785224A10
ref: 2-2

HOSE,RADIATOR OUTLET

€ 20.50

3-1

0940230501
ref: 3-1
09402-32511

CLAMP

€ 11.50

3-2

0940230502
ref: 3-2
09402-32511

CLAMP

€ 11.50

4

1765505A00
ref: 4

HOSE,THERMO IN FR

€ 9.50

5

1765124A00
ref: 5

HOSE,THERMO IN RR

€ 14.50

6-1

0940225501
ref: 6-1
09402-28511

CLAMP

€ 8.50

6-2

0940225502
ref: 6-2
09402-28511

CLAMP

€ 8.50

7

1791124A04
ref: 7

TANK,RESERVE

€ 38.00

8

1784513700
ref: 8

CAP,RESERVOIR TANK

€ 11.50

9

1784413700
ref: 9

GASKET,RESERVOIR TANK CAP (NAS)

€ 2.50

10

0211206167
ref: 10

SCREW

€ 2.50

11

0916006007
ref: 11
09160-06084

WASHER

€ 2.00

12

0934305347
ref: 12
09352-50901-00B

HOSE

€ 19.50

13

0934305145
ref: 13

HOSE (5X10X980)

€ 9.50

14

0940108407
ref: 14
09401-08411

CLIP

€ 3.00

15

1798924A00
ref: 15

GROMMET

€ 5.00

16

1791024A02
ref: 16

TANK,RESERVOIR NO.2

€ 50.50

17

1791324A11
ref: 17

CUSHION,RESERVOIR NO.1

€ 6.00

18

1791624A00
ref: 18

CUSHION,RESERVOIR NO.2

€ 8.50

19

0831011068
ref: 19
08310-00067

NUT

€ 2.50

20

0916006006
ref: 20
09160-06084

WASHER

€ 2.00

21

1798624A01
ref: 21

HOSE,RESERVOIR INLET

€ 31.00

22

0940118401
ref: 22
09401-18402

CLAMP

€ 2.00

23

0934305347
ref: 23
09352-50901-00B

HOSE

€ 19.50

24

0940718402
ref: 24

CLAMP(L:165)

€ 2.50

25

0940718301
ref: 25

CLAMP

€ 6.00
