ELECTRICAL

GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

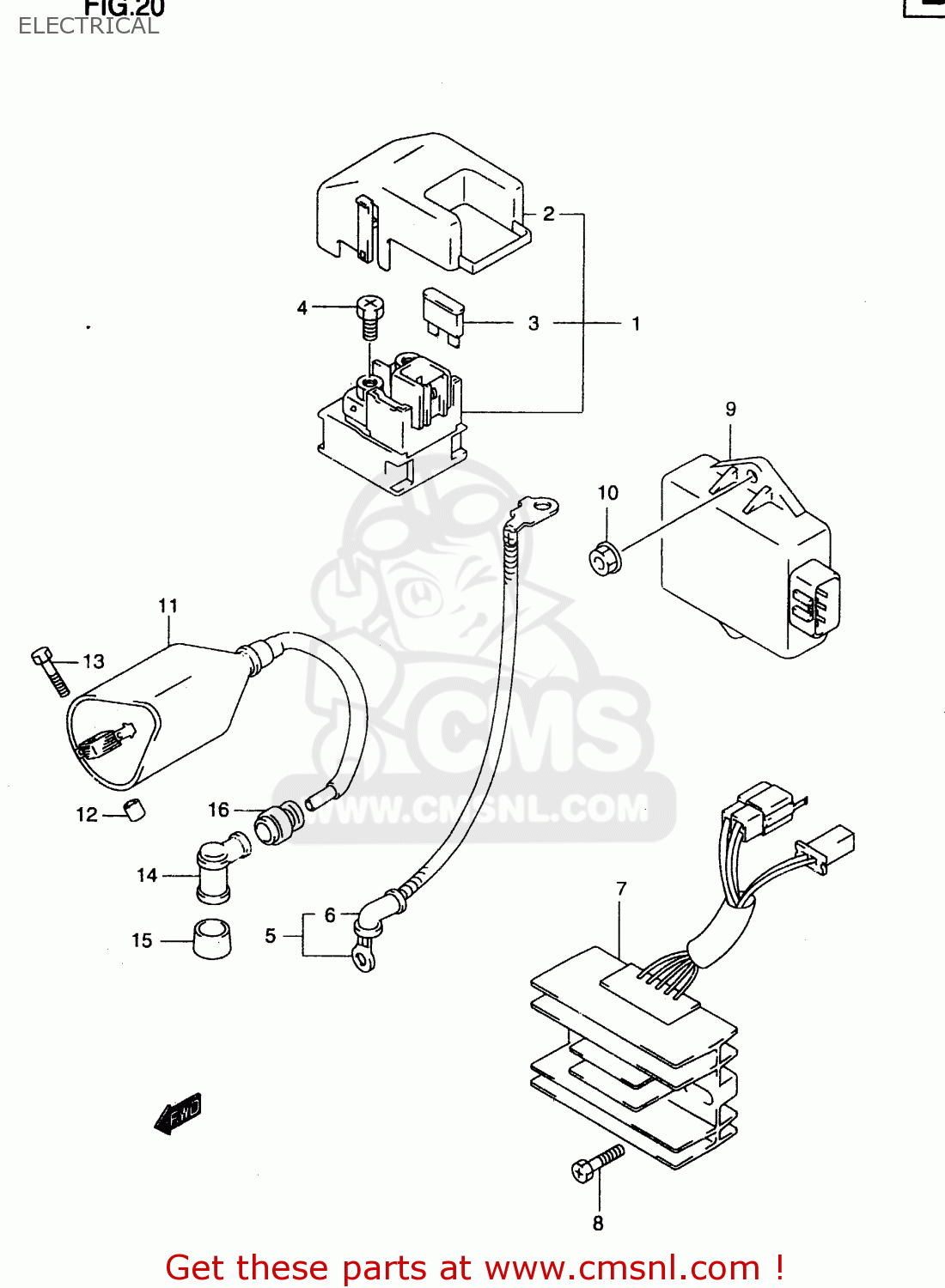

Electrical diagram GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3180047E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 95.00

3186147E00
ref: 2

COVER

€ 10.50

0948120102
ref: 3

FUSE(20A)

€ 2.00

0912806013
ref: 4

SCREW(6X8)

€ 1.50

3381013F00
ref: 5

WIRE,STARTER MOTOR LEAD

€ 37.50

3186148B10
ref: 6

CAP,STARTER MOTOR LEAD

€ 4.50

3280029B00
ref: 7

RECTIFIER ASSY

€ 266.50

0912806057
ref: 8

BOLT(6X20)

€ 2.00

3290013F00
ref: 9

IGNITOR ASSY

€ 498.00

0831610063
ref: 10

NUT

€ 2.50

3341013F00
ref: 11

COIL ASSY,IGNITION

€ 150.00

0918006174
ref: 12

SPACER(6.2X12X14)

€ 5.50

0150005353
ref: 13

BOLT

€ 2.00

3351045010
ref: 14

CAP ASSY,SPARK PLUG

€ 23.00

3354124510
ref: 15

SEAL,SPARK PLUG CAP

€ 7.00

3354238B00
ref: 16

SEAL,HIGH TENSION CORD

€ 4.50
