SEAT

GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

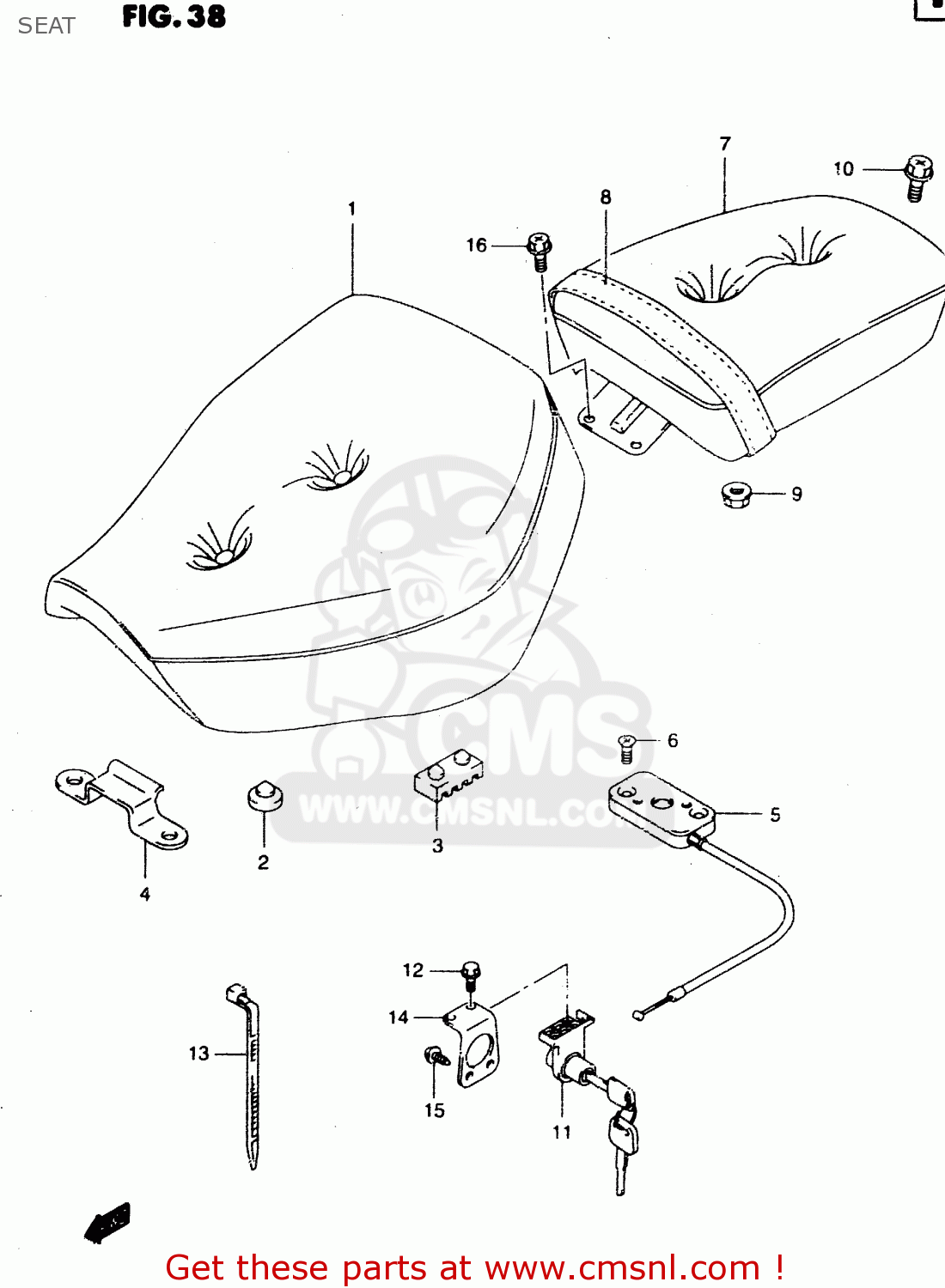

Seat diagram GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

4510012F00K9C
ref: 1

SEAT ASSEMBLY

€ 143.50

4514836C00
ref: 2

CUSHION,SEAT

€ 4.00

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4511912F00
ref: 4

PLATE,FR SEAT HOOK

€ 5.50

4522012F00
ref: 5

BRACKET,SEAT SUPPORT

€ 34.00

0212206253
ref: 6

SCREW

€ 2.00

4530012F00K9C
ref: 7

SEAT ASSEMBLY,PILLION

€ 163.00

4518012F00T65
ref: 8

BAND,SEAT(BLACK)

€ 32.50

0831610063
ref: 9

NUT

€ 2.50

0910608140
ref: 10

BOLT(8X16)

€ 6.00

9570031840
ref: 11

LOCK SET,SEAT

€ 57.00

0154705103
ref: 12

BOLT

€ 2.50

0940722403
ref: 13

CLAMP(L:220)

€ 2.00

4528903F00
ref: 14

BRACKET,SEAT LOCK

€ 6.00

0314114123
ref: 15

SCREW

€ 2.00

0910606061
ref: 16

BOLT(6X12)

€ 6.00
