WIRING HARNESS

GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

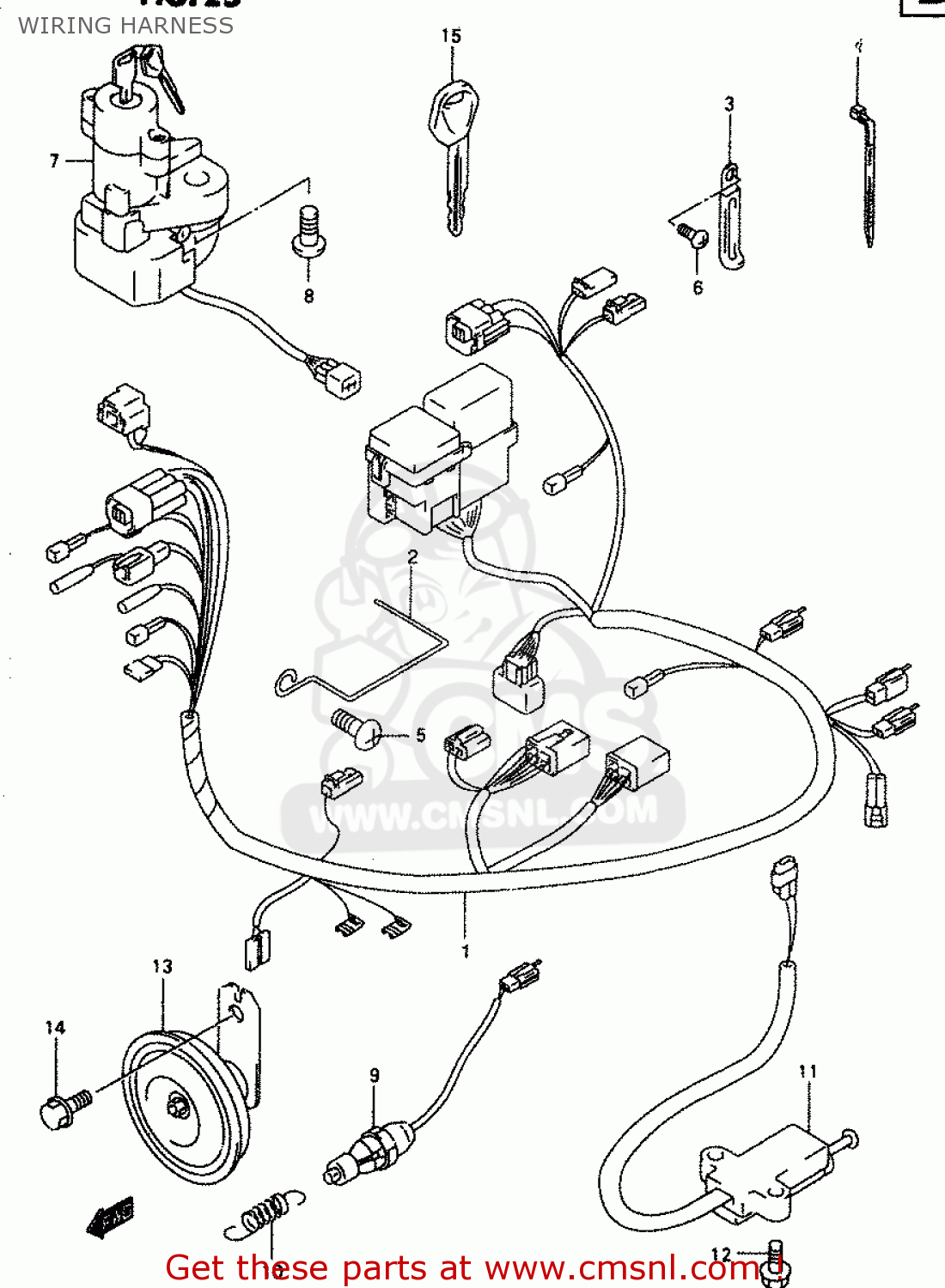

Wiring harness diagram GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3661013F10
ref: 1

HARNESS,WIRING

€ 323.50

3661923E00
ref: 2

GUIDE,HARNESS

€ 7.50

0940406432
ref: 3

CLAMP(L:65)

€ 2.50

0940406435
ref: 3

CLAMP(L:135)

€ 2.50

0940714403
ref: 4

CLAMP(L:125)

€ 2.50

0940718402
ref: 4

CLAMP(L:165)

€ 2.50

0940725401
ref: 4

CLAMP(L:235)

€ 4.00

0214206163
ref: 5

SCREW

€ 2.50

0354104103
ref: 6

SCREW

€ 1.50

3710033E20
ref: 7

LOCK ASSY,STEERING

€ 223.50

3710033E30
ref: 7
E24

LOCK ASSY, STEERING

€ 142.50

0913908016
ref: 8

BOLT(8X20)

€ 3.50

3774012F00
ref: 9

SWITCH ASSY,STOP LAMP

€ 21.50

0944306046
ref: 10

SPRING

€ 3.50

3784044X50
ref: 11

SWITCH ASSY,SIDE STAND

€ 75.50

0155006163
ref: 12

BOLT

€ 2.50

3850010D10
ref: 13

HORN ASSY

€ 66.00

0155008163
ref: 14

BOLT

€ 3.00

3714633E00
ref: 15
OPT

KEY,BLANK

€ 13.00

WIRING HARNESS

all assemblies
