MUFFLER

GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

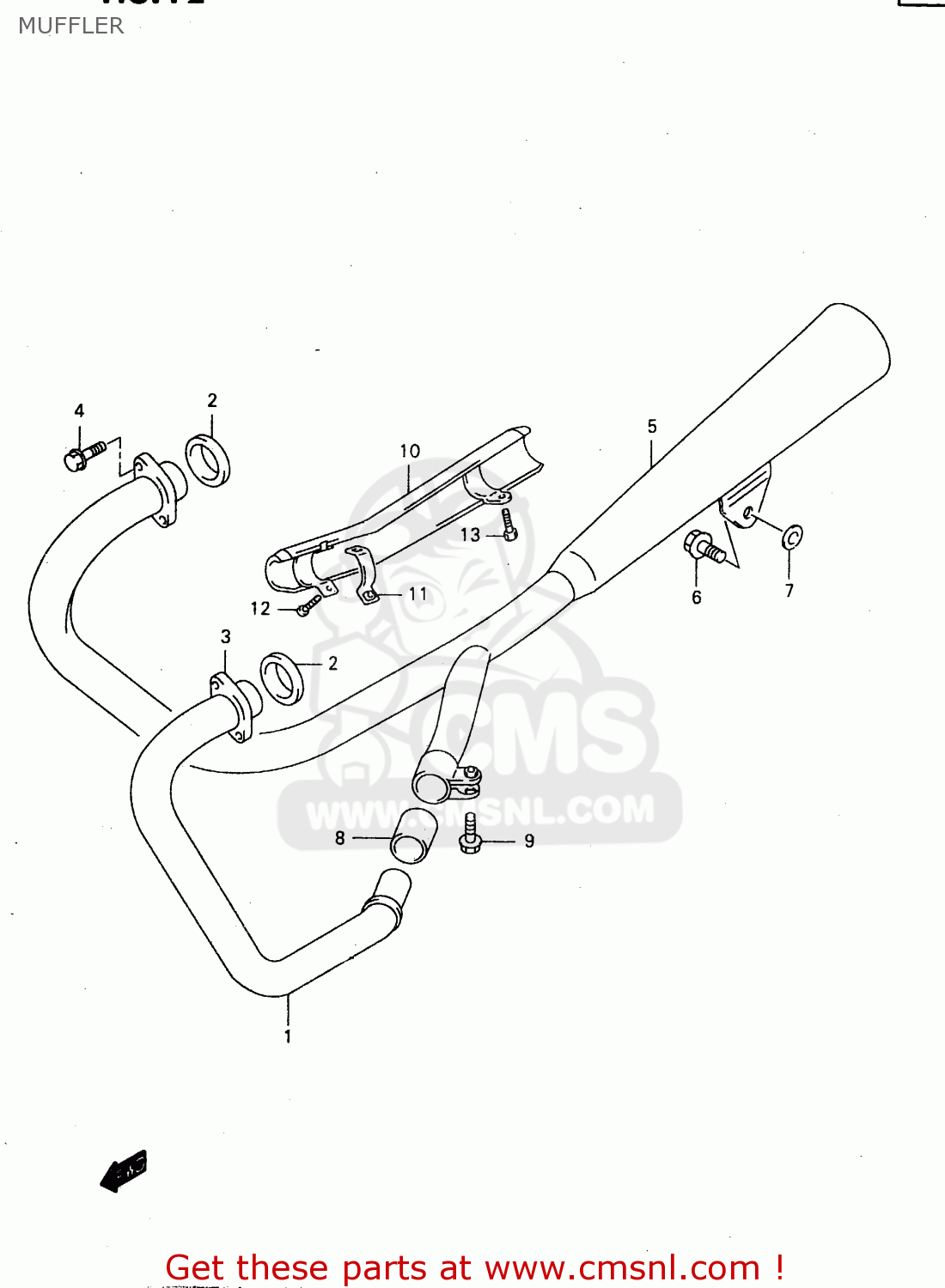

Muffler diagram GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1416013F00
ref: 1

PIPE,EXHAUST,L

€ 147.00

1418137D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 7.00

1418237D00
ref: 3

CLAMP,EXHAUST PIPE,L

€ 11.00

0910306203
ref: 4

BOLT(6X25)

€ 3.00

1430513F20
ref: 5
E1

MUFFLER

€ 260.00

1430513F00H01
ref: 5

MUFFLER

€ 343.50

0158010303
ref: 6

BOLT

€ 3.00

0832201103
ref: 7

WASHER

€ 2.50

1477119B00
ref: 8

CONNECTOR,MUFFLER

€ 12.50

0155008353
ref: 9

BOLT

€ 3.50

1478013F00
ref: 10

COVER COMP,MUFFLER

€ 61.50

1478538301
ref: 11

CLAMP,MUFFLER COVER

€ 5.00

0211205163
ref: 12

SCREW

€ 2.00

0211276103
ref: 13

SCREW

€ 2.00

MUFFLER

all assemblies
