TRANSMISSION

GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

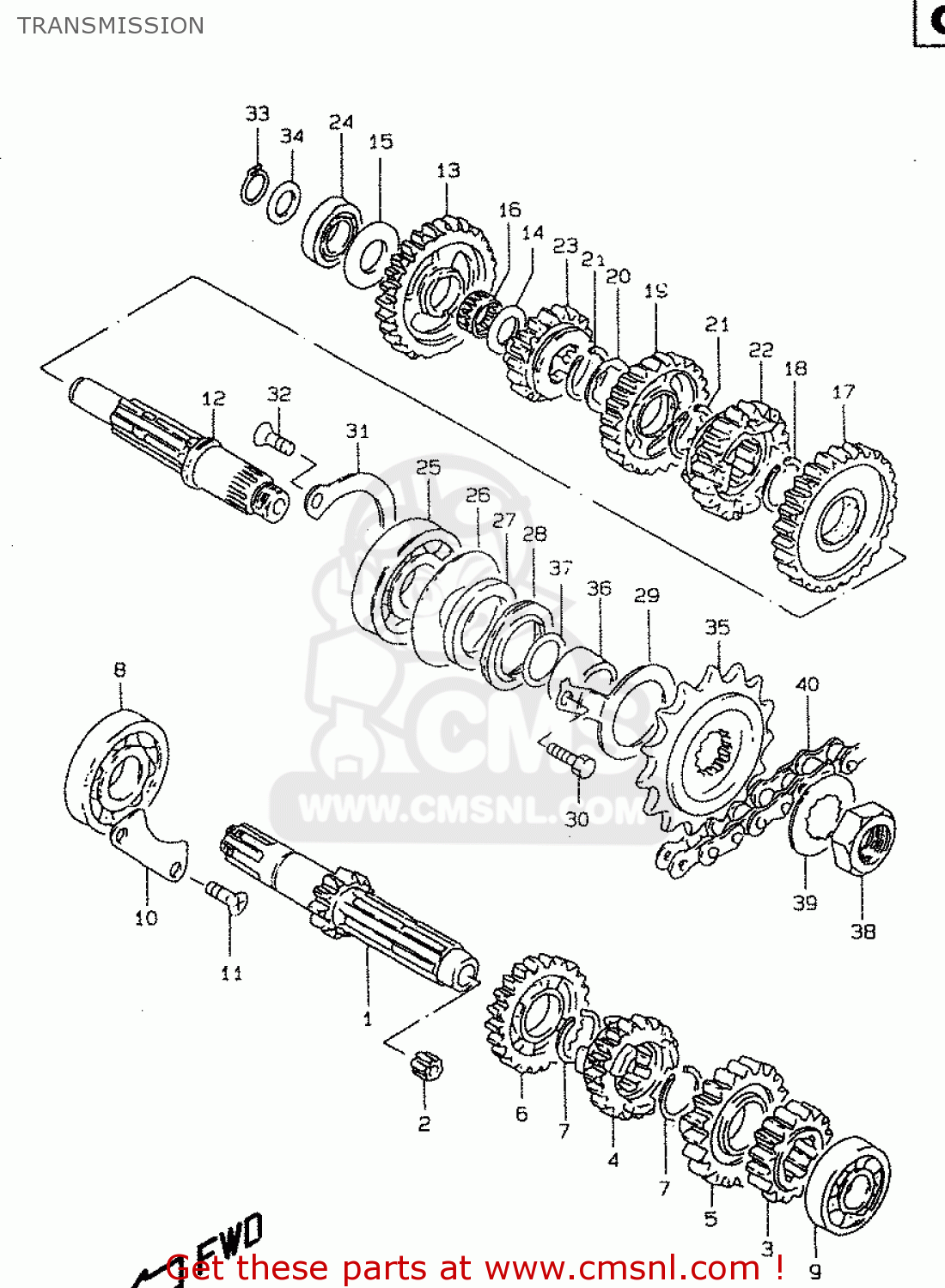

Transmission diagram GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

TRANSMISSION GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)
TRANSMISSION GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)
TRANSMISSION GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
2412038202
ref: 1
SHAFT,COUNTER (NT:11)
€ 105.00
2
2412538201
ref: 2
BUSH
2412538201
€ 3.50
3
2422132412
ref: 3
GEAR,2ND DRIVE(NT:16)
2422132412
€ 89.50
4
2423138201
ref: 4
GEAR,3RD DRIVE(NT:19)
€ 95.50
5
2424132401
ref: 5
GEAR,4TH DRIVE(NT:20)
€ 57.00
6
2425132402
ref: 6
GEAR,FIFTH DRIVE (NT:22)
2425132402
€ 82.50
7
0938022006
ref: 7
CIRCLIP
0938022006
€ 3.00
8
0926222028
ref: 8
BEARING(22X56X16)
0926222028
€ 59.50
9
0926217027
ref: 9
BEARING(17X40X12)
0926217027
€ 25.00
10
2474138200
ref: 10
RETAINER,CNTR SHAFT BEARING
2474138200
€ 4.50
11
0211206123
ref: 11
SCREW
0211206123
€ 1.50
12
2413038301
ref: 12
SHAFT,DRIVE
2413038301
€ 164.50
13
2431132401
ref: 13
GEAR,1ST DRIVEN(NT:29)
2431132401
€ 89.50
14
0918117195
ref: 14
SHIM(17X28X1)
0918117195
€ 3.00
15
0821117363
ref: 15
WASHER
0821117363
€ 2.00
16
0926317004
ref: 16
BEARING(17X21X9.8)
0926317004
€ 7.00
17
2432032411
ref: 17
GEAR,2ND DRIVEN(NT:27)
€ 87.50
18
0938022006
ref: 18
CIRCLIP
0938022006
€ 3.00
19
2433038202
ref: 19
GEAR,3RD DRIVEN(NT:24)
€ 74.00
20
0916722011
ref: 20
WASHER,LOCK
0916722011
€ 3.00
21
0938022006
ref: 21
CIRCLIP
0938022006
€ 3.00
22
2434138201
ref: 22
GEAR,4TH DRIVEN(NT:20)
2434138201
€ 92.50
23
2435138201
ref: 23
GEAR,5TH DRIVEN(NT:18)
€ 84.50
24
0926417001
ref: 24
BEARING(17X36X12)
0926417001
€ 27.00
25
0926222013
ref: 25
BEARING(22X56X16)
0926222013
€ 58.00
26
0916035007
ref: 26
WASHER(35X55X1)
0916035007
€ 2.50
27
0928230003
ref: 27
OIL SEAL (30X43X5)
0928230003
€ 9.00
28
0928330040
ref: 28
OIL SEAL (30X43X7)
0928330040
€ 10.50
29
2475138201
ref: 29
RETAINER,DRIVE SHAFT OIL SEAL
2475138201
€ 8.00
30
0150006123
ref: 30
BOLT
0150006123
€ 2.00
31
2475232400
ref: 31
RETAINER,DRIVE SHAFT BEARING
2475232400
€ 3.50
32
0212206123
ref: 32
SCREW
0212206123
€ 3.00
33
0833131176
ref: 33
CIRCLIP,17MM
0833131176
€ 2.00
34
0918117139
ref: 34
SHIM(17X24X1)
0918117139
€ 3.00
35
2751025D00
ref: 35
SPROCKET,ENGINE(NT:15)
2751025D00
€ 37.00
36
2753138300
ref: 36
SPACER
2753138300
€ 32.50
37
0928021008
ref: 37
O RING(D:2.5,ID:21)
0928021008
€ 2.00
38
0914018008
ref: 38
NUT
0914018008
€ 4.50
39
0916722012
ref: 39
WASHER,LOCK
0916722012
€ 1.50
40
2760014A10110
ref: 40
CHAIN(DID520VC5,110LE)
€ 107.50
