STAND - REAR BRAKE

GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

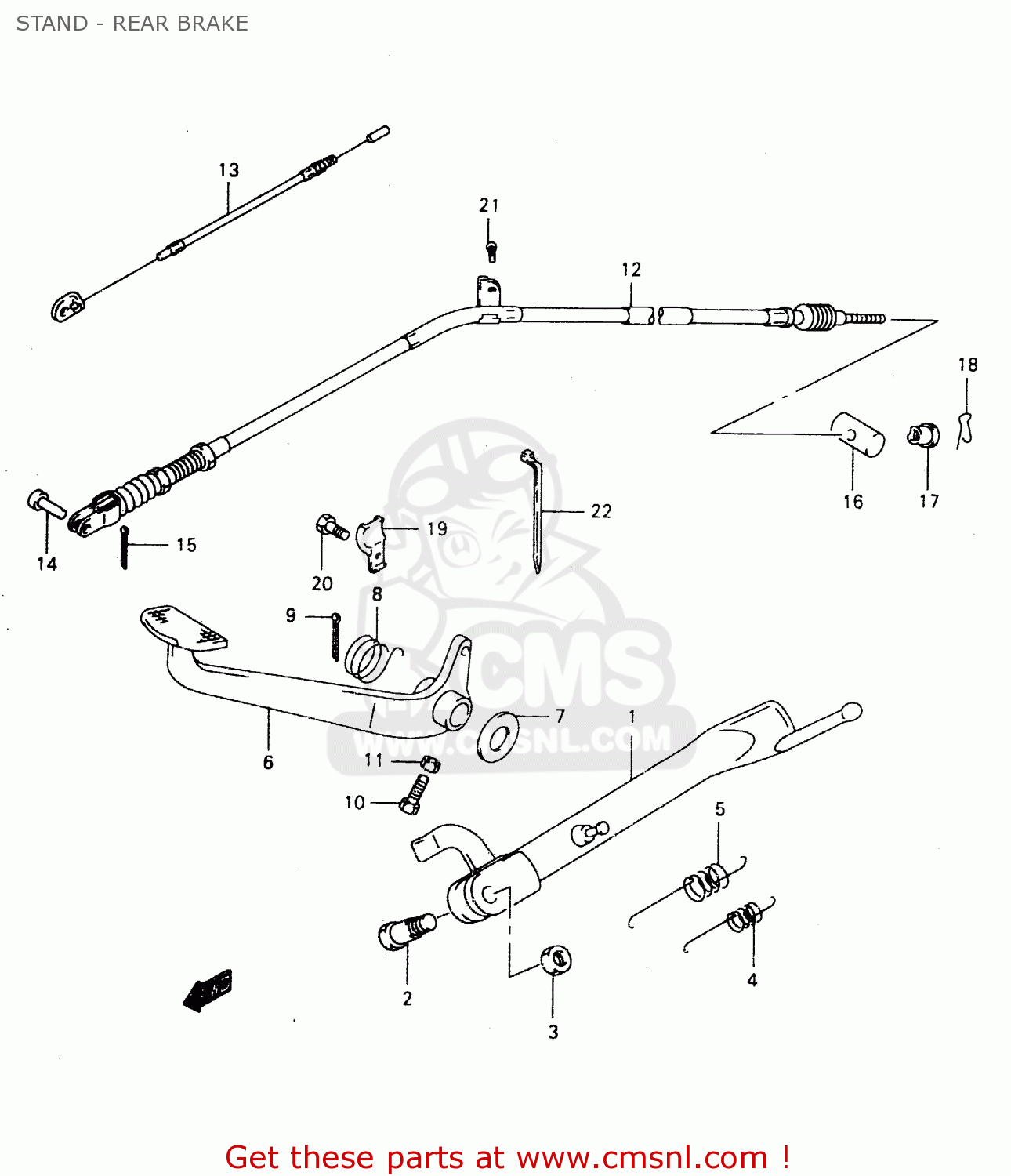

Stand - rear brake diagram GZ250 1999 (X) (E01 E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

4231013F00
ref: 1

STAND,PROP

€ 182.00

0911110027
ref: 2

BOLT(10X34)

€ 3.50

0915910097
ref: 3

NUT

€ 5.00

0944314066
ref: 4

SPRING

€ 5.00

0944319012
ref: 5

SPRING

€ 5.50

4311013F00
ref: 6

PEDAL,BRAKE

€ 59.50

0916016043
ref: 7

WASHER(16.5X22X1)

€ 2.00

0944831034
ref: 8

SPRING

€ 5.50

0411130308
ref: 9

COTTER PIN

€ 1.50

0150006207
ref: 10

BOLT

€ 2.00

0831000067
ref: 11

NUT

€ 2.50

5851013F00
ref: 12

CABLE,RR BRAKE

€ 76.00

5883013F00
ref: 13

CABLE,STOP LAMP SWITCH

€ 30.50

0920005001
ref: 14

PIN(L:17.5)

€ 1.50

0411120158
ref: 15

PIN

€ 1.50

0920913018
ref: 16

PIN(13X18)

€ 3.50

0915006014
ref: 17

NUT

€ 3.50

0938506012
ref: 18

CLIP

€ 2.00

5862112F00
ref: 19

GUIDE,RR BRAKE CABLE

€ 8.00

0155006123
ref: 20

BOLT

€ 2.50

0713006163
ref: 21

BOLT,OIL FILLE

€ 3.00

0940714407
ref: 22

CLAMP(L:145)

€ 4.00
