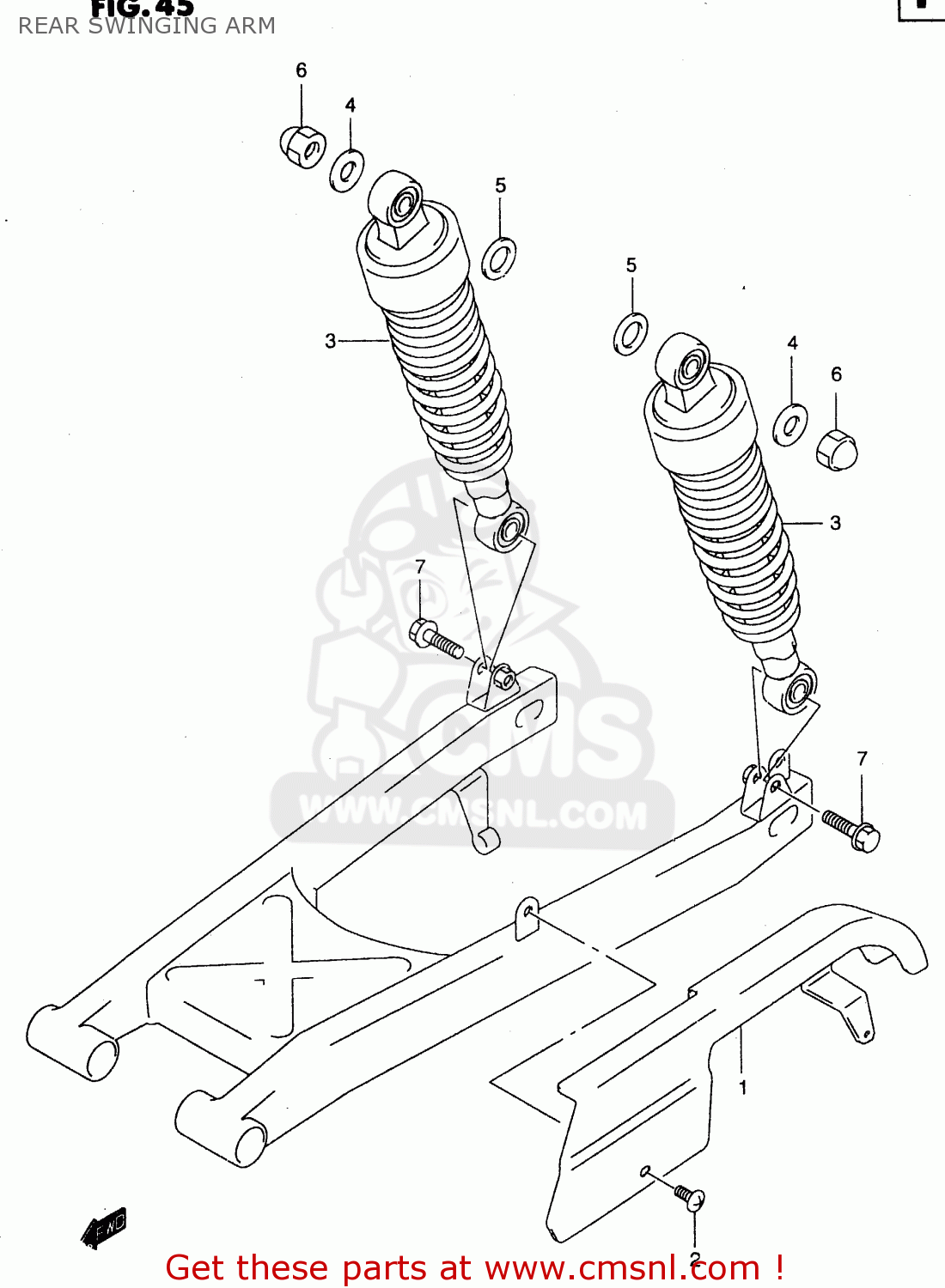

REAR SWINGING ARM

ref

part #

description

quantity

1

6100013F00
ref: 1
E1

SWINGING ARM ASSY, REAR

€ 453.00

1

6100013F10
ref: 1
E2, E4, E17, E18, E2

SWINGINGARM ASSY,RR

€ 453.00

2

0926320041
ref: 2

BEARING(20X27X20)

€ 15.00

3

6125113F00
ref: 3

SPACER,RR SWGARM PIVOT OUTER

€ 16.50

4

0928620001
ref: 4

SEAL,OIL(20X27X5)

€ 2.50

5

6125213F01
ref: 5

SPACER,RR SWGARM PIVOT INNER

€ 4.50

6

0928620001
ref: 6

SEAL,OIL(20X27X5)

€ 2.50

7

6121138301
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 23.50

8

0832201143
ref: 8

WASHER

€ 2.00

9

0831921148
ref: 9

NUT 14MM

€ 3.00

10

6127312F00
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 20.50

11

0911606152
ref: 11

BOLT(6X20)

€ 2.00

12

0918006255
ref: 12

SPACER(6.5X9X3.8)

€ 1.50

13

6431112F00019
ref: 13

TORQUELINK,RR

€ 17.00

14

0911108012
ref: 14

BOLT(8X22.5)

€ 3.00

15

0911108013
ref: 15

BOLT(8X26.5)

€ 3.00

16

0916208008
ref: 16

WASHER,LOCK

€ 2.00

17

0914008008
ref: 17

NUT

€ 1.50

18

0411120208
ref: 18

PIN 20X20

€ 1.50

19

6141012F00
ref: 19

ADJUSTER,CHAIN

€ 22.50

20

6142138200
ref: 20

PLATE,CHAIN ADJUSTER

€ 3.50

21

0831931087
ref: 21

NUT

€ 2.50

all assemblies
