AIR CLEANER

GZ250 MARAUDER 2010 (L0) USA (E03)

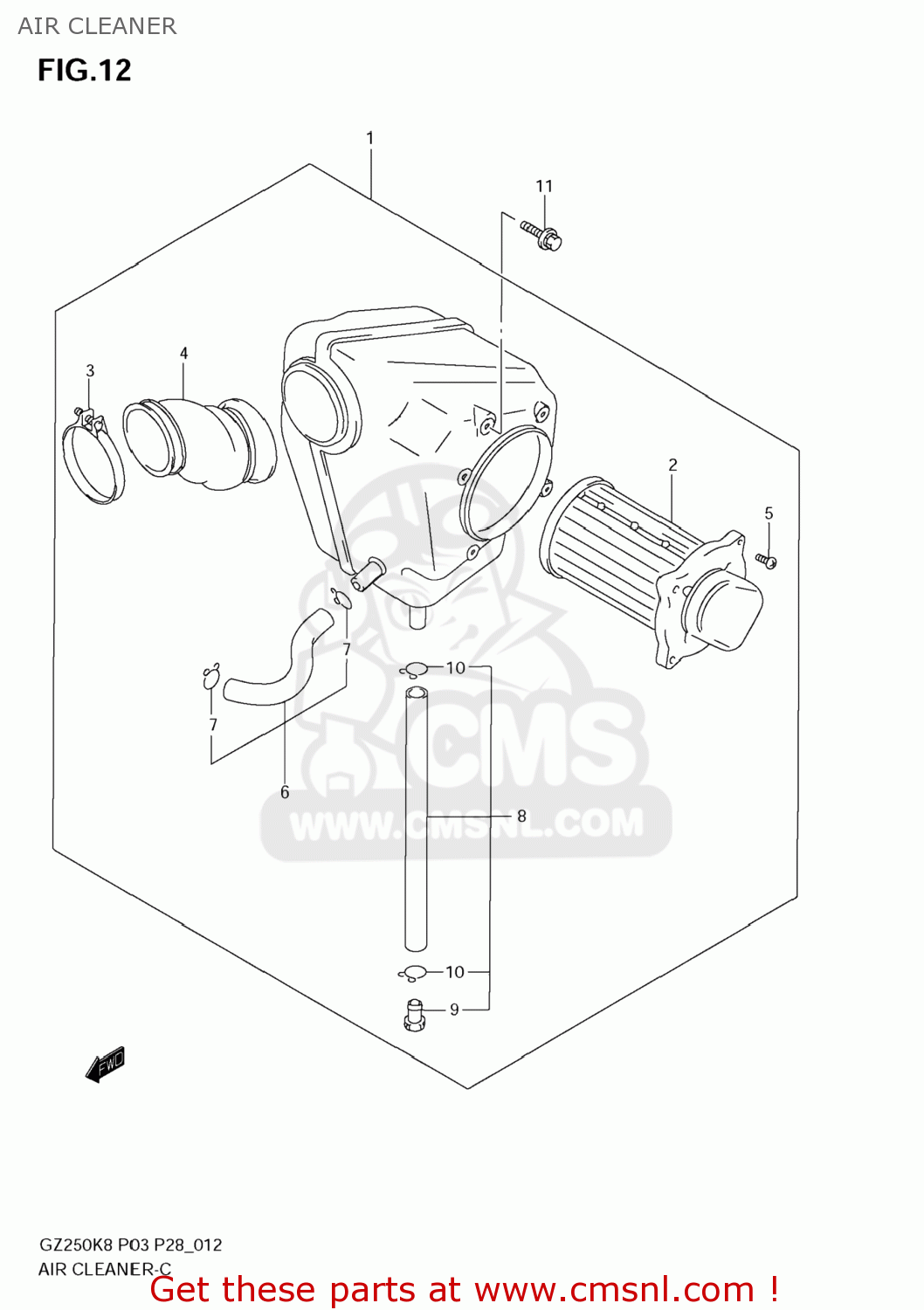

Air cleaner diagram GZ250 MARAUDER 2010 (L0) USA (E03)

AIR CLEANER GZ250 MARAUDER 2010 (L0) USA (E03)

AIR CLEANER GZ250 MARAUDER 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370013F00
ref: 1

CLEANER ASSY,AIR

€ 183.00

2

1378013F00
ref: 2

FILTER,AIR CLEANER

€ 29.00

3

0940258208
ref: 3

CLAMP

€ 5.50

4

1388113F00
ref: 4

TUBE,OUTLET

€ 26.50

5

021420516B
ref: 5

SCREW

€ 2.50

6

1385013F00
ref: 6

TUBE,BREATHER

€ 15.50

7

0940114301
ref: 7

CLIP

€ 2.00

8

1387012F00
ref: 8

TUBE,DRAIN

€ 11.00

9

1387700190
ref: 9

PLUG

€ 3.50

10

0940114301
ref: 10

CLIP

€ 2.00

11

015800616B
ref: 11

BOLT

€ 3.00
