CHAIN CASE

GZ250 MARAUDER 2010 (L0) USA (E03)

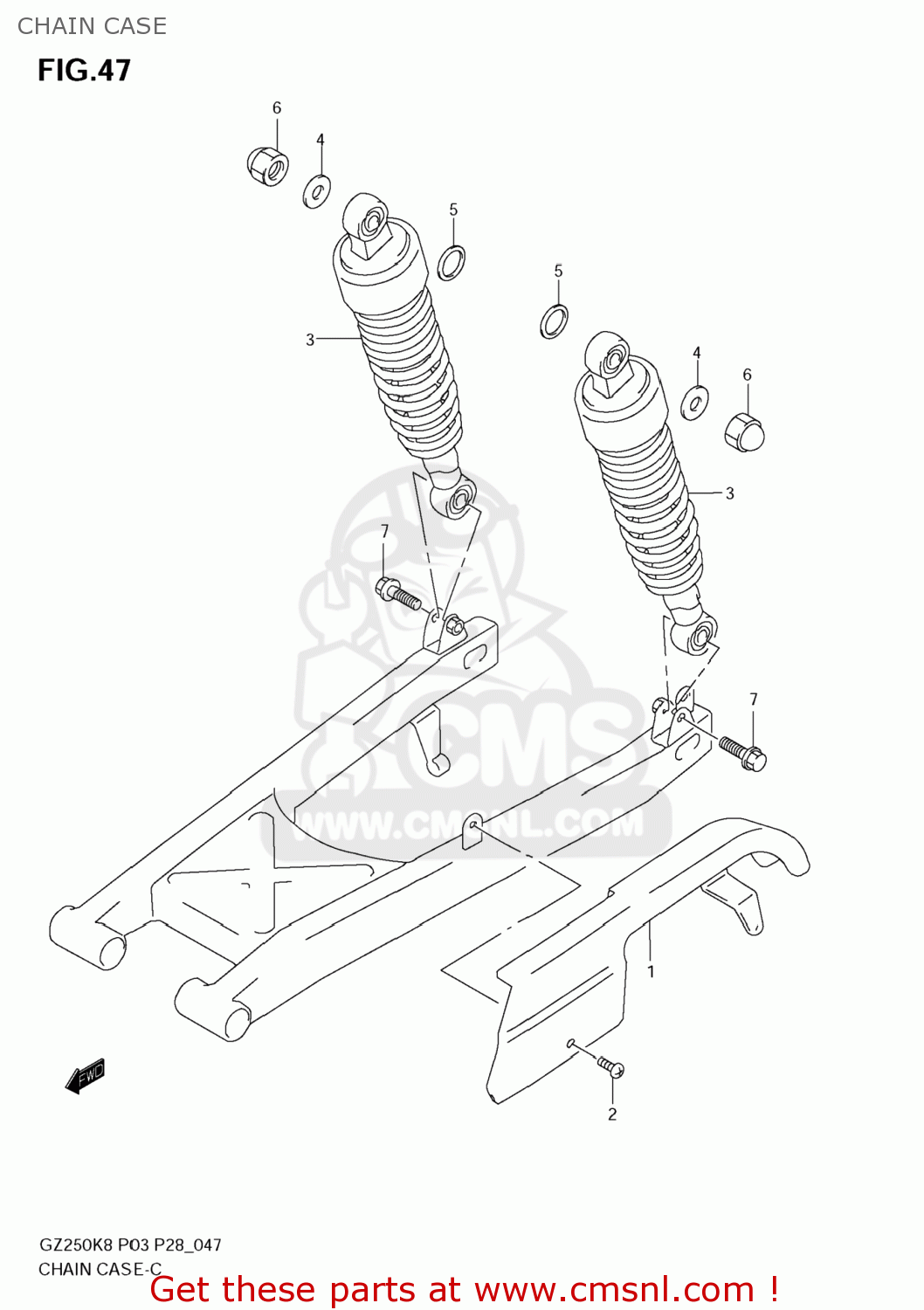

Chain case diagram GZ250 MARAUDER 2010 (L0) USA (E03)

CHAIN CASE GZ250 MARAUDER 2010 (L0) USA (E03)

CHAIN CASE GZ250 MARAUDER 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6131012FB0
ref: 1

CASE,CHAIN GZ1

€ 99.00

2

021420610B
ref: 2

SCREW

€ 2.00

3

6210013FA0
ref: 3

ABSORBER ASSY,RR SHOCK

€ 280.00

4

0916010127
ref: 4
09160-10093

WASHER (10.5X24X2.3)

€ 2.00

5

0832201127
ref: 5

WASHER

€ 2.00

6

0831310107
ref: 6

NUT

€ 2.50

7

0910310019
ref: 7

BOLT(10X37)

€ 2.50
