BATTERY

GZ250 MARAUDER 2010 (L0) USA (E03)

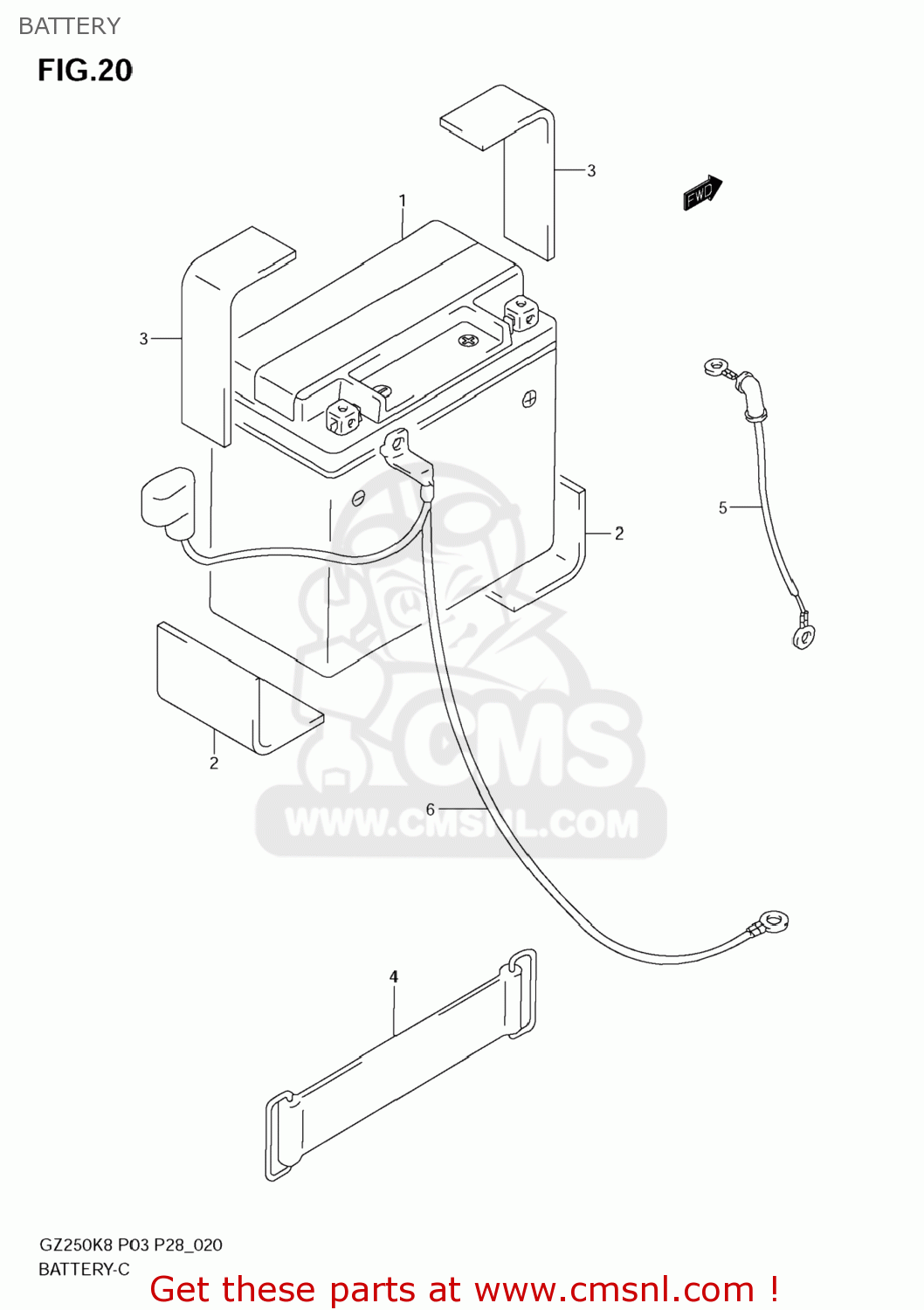

Battery diagram GZ250 MARAUDER 2010 (L0) USA (E03)

BATTERY GZ250 MARAUDER 2010 (L0) USA (E03)

BATTERY GZ250 MARAUDER 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

33610C12F10J000
ref: 1
33610-15D20

BATTERY ASSY (FTX7L-BS, 12V6A

€ 61.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

33652C29100J000
ref: 3
33651-37000

PROTECTOR (20X90X3)

€ 4.00

4

0946200043
ref: 4

BAND

€ 4.50

5

33820C12F00J000
ref: 5
33820-12F00

WIRE, BATTERY (+)

€ 28.00

6

3386012F00
ref: 6

WIRE,BATTERY MINUS

€ 21.00
