REAR SWINGING ARM
GZ250 MARAUDER 2010 (L0) USA (E03)

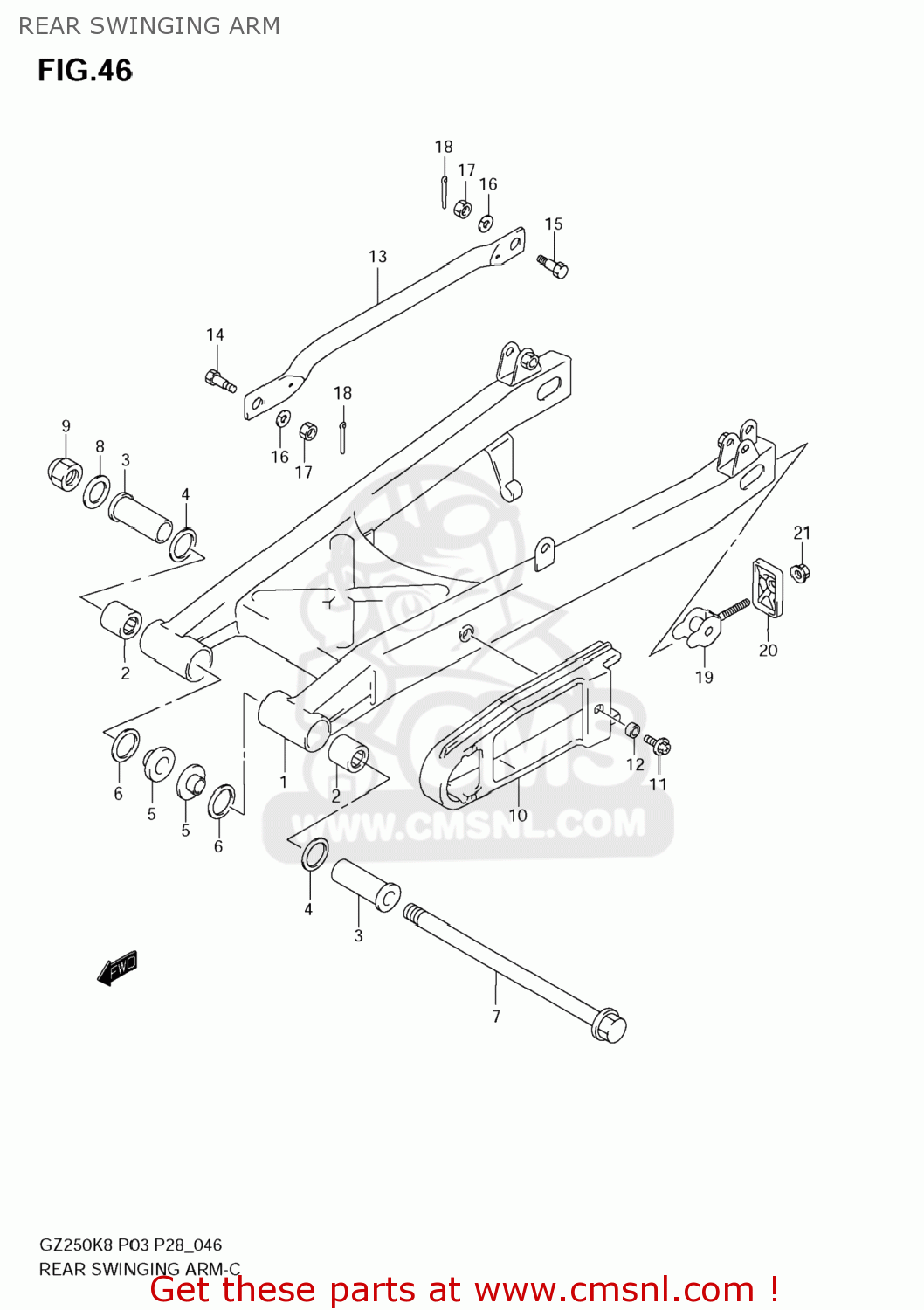

Rear swinging arm diagram GZ250 MARAUDER 2010 (L0) USA (E03)
REAR SWINGING ARM GZ250 MARAUDER 2010 (L0) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100013FA0EE3
ref: 1-1
SWINGING ARM ASSY, REAR
€ 0.00
1-2
6100013FB0EE3
ref: 1-2
SWINGARM
€ 324.00
2
0926320041
ref: 2
BEARING(20X27X20)
€ 15.00
3
61251C13F00J000
ref: 3
61251-13F00
SPACER, PIVOT OUTER
€ 19.50
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
€ 2.50
5
61252C13F01J000
ref: 5
61252-13F01
SPACER, PIVOT INNER
€ 8.50
6
0928620001
ref: 6
SEAL,OIL(20X27X5)
€ 2.50
7
6121138301
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 23.50
8
083220114B
ref: 8
WASHER
€ 2.00
9
083192114A
ref: 9
NUT
€ 3.00
10
6127312F00
ref: 10
BUFFER,CHAIN TOUCH DEFENSE
€ 20.50
11
0911606111
ref: 11
09116-06152
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
12
0918006255
ref: 12
SPACER(6.5X9X3.8)
€ 1.50
13
6431126F00019
ref: 13
TORQUELINK,RR
€ 18.50
14
0911108012
ref: 14
BOLT(8X22.5)
€ 3.00
15
0911108013
ref: 15
BOLT(8X26.5)
€ 3.00
16
0916208008
ref: 16
WASHER,LOCK
€ 2.00
17
0914008008
ref: 17
NUT
€ 1.50
18
041112020A
ref: 18
PIN
€ 1.50
19
6141012F00
ref: 19
ADJUSTER,CHAIN
€ 22.50
20
6142138200
ref: 20
PLATE,CHAIN ADJUSTER
€ 3.50
21
083193108A
ref: 21
NUT
€ 2.50
