CYLINDER

GZ250 MARAUDER 2010 (L0) USA (E03)

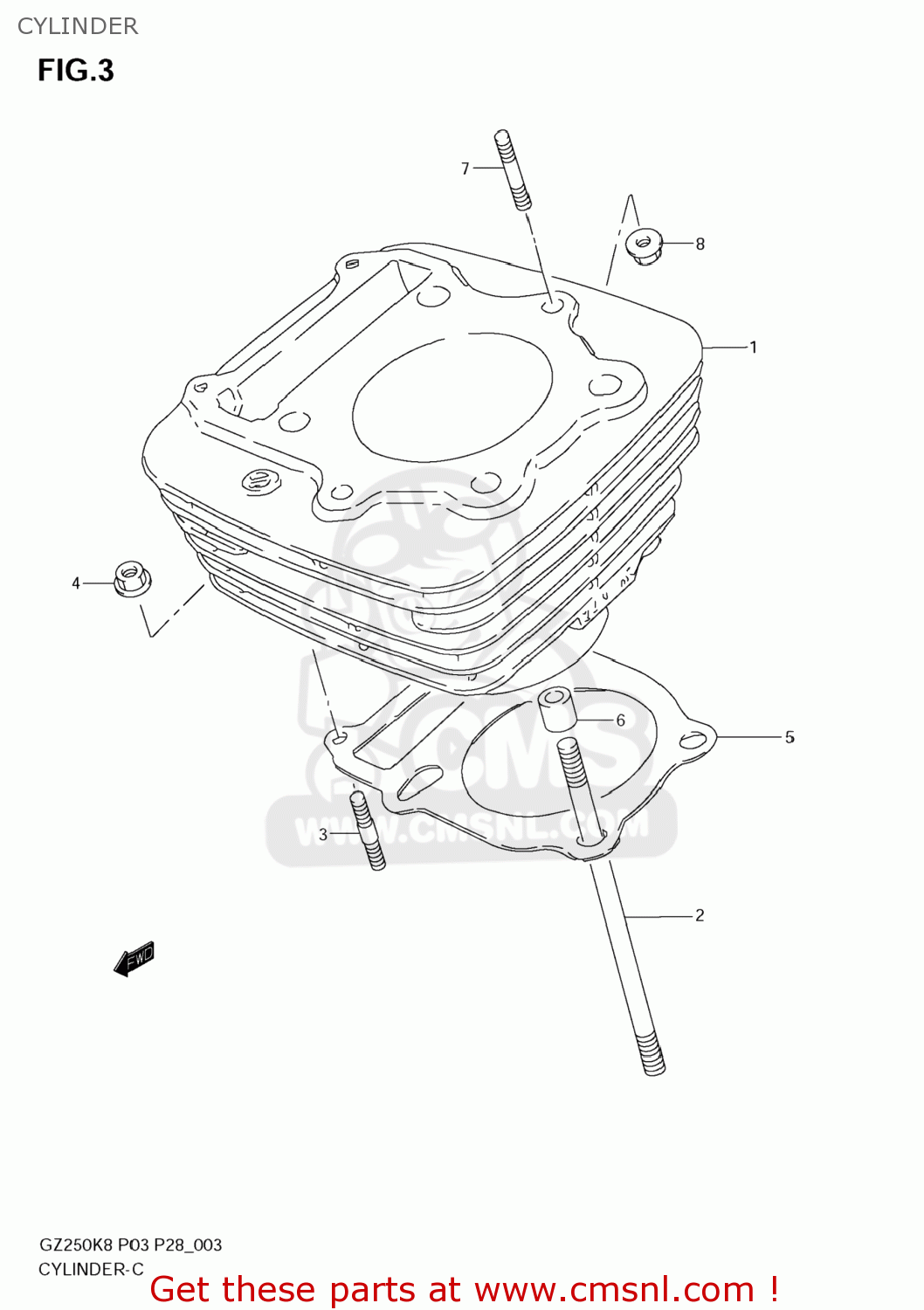

Cylinder diagram GZ250 MARAUDER 2010 (L0) USA (E03)

CYLINDER GZ250 MARAUDER 2010 (L0) USA (E03)

CYLINDER GZ250 MARAUDER 2010 (L0) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

11210382040F0
ref: 1

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

014210620A
ref: 3

BOLT,STUD

€ 2.50

4

0831610067
ref: 4

NUT

€ 2.00

5

1124138301
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50

6

0421113189
ref: 6

PIN

€ 2.50

7

014210630A
ref: 7

BOLT,STUD

€ 2.00

8

0831610067
ref: 8

NUT

€ 2.00
