CRANKCASE

GZ250 MARAUDER 2010 (L0) USA (E03)

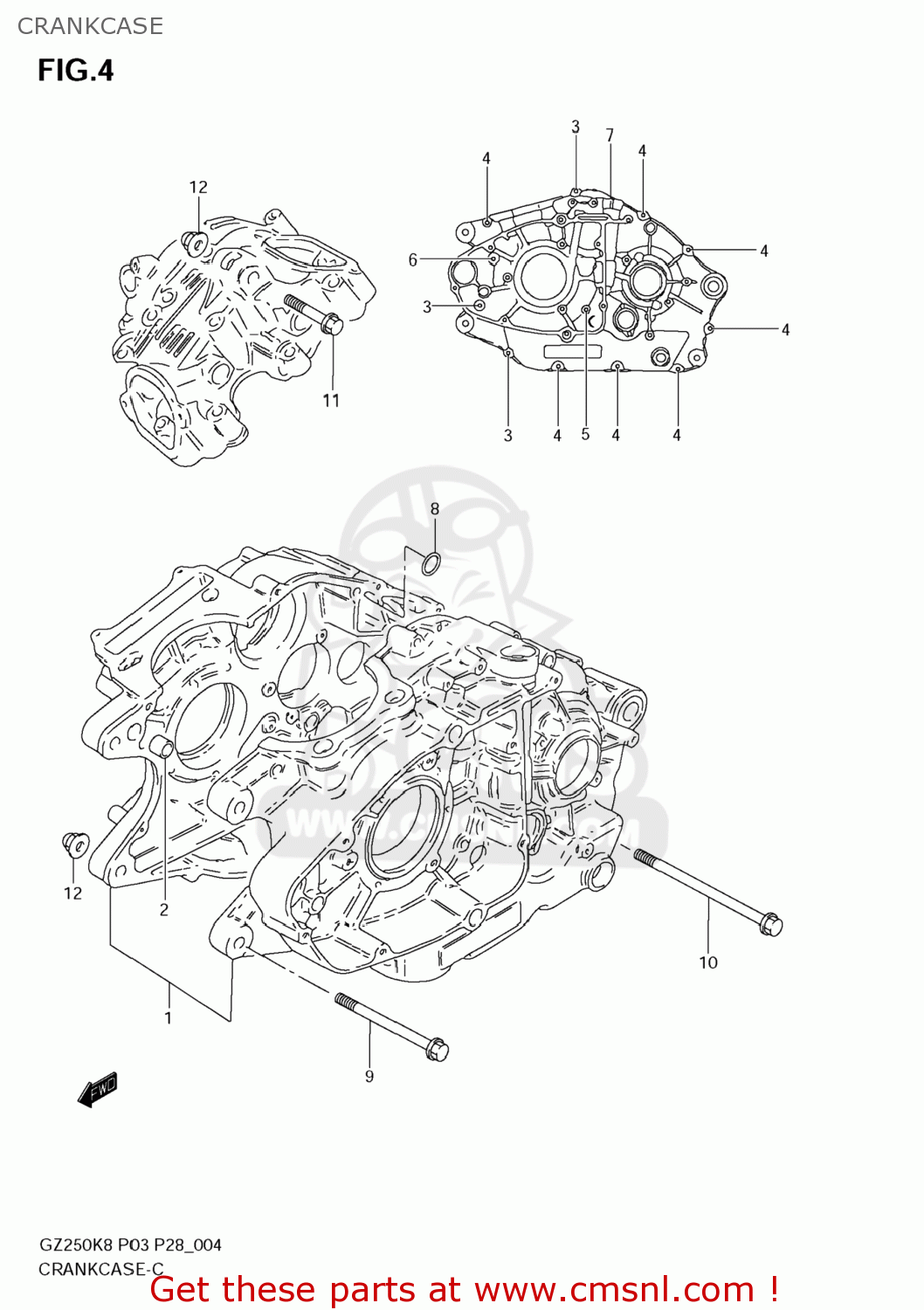

Crankcase diagram GZ250 MARAUDER 2010 (L0) USA (E03)

CRANKCASE GZ250 MARAUDER 2010 (L0) USA (E03)
CRANKCASE GZ250 MARAUDER 2010 (L0) USA (E03)
CRANKCASE GZ250 MARAUDER 2010 (L0) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1130013F03
ref: 1
CRANKCASE SET
€ 622.50
2
0421113189
ref: 2
PIN
0421113189
€ 2.50
3
0154706357
ref: 3
BOLT
0154706357
€ 2.50
4
0154706457
ref: 4
BOLT
0154706457
€ 2.50
5
015470655B
ref: 5
BOLT
015470655B
€ 3.00
6
015470660B
ref: 6
BOLT
015470660B
€ 3.50
7
0154706707
ref: 7
BOLT
0154706707
€ 2.50
8
0928010015
ref: 8
09280-10016
O-RING,OIL LEVEL GAUGE
€ 2.50
9
0910308037
ref: 9
BOLT(8X67)
0910308037
€ 6.50
10
0910308114
ref: 10
BOLT(8X100)
0910308114
€ 7.50
11
0910308081
ref: 11
BOLT(8X50)
0910308081
€ 3.50
12
083193108A
ref: 12
NUT
083193108A
€ 2.50
