ELECTRICAL

LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

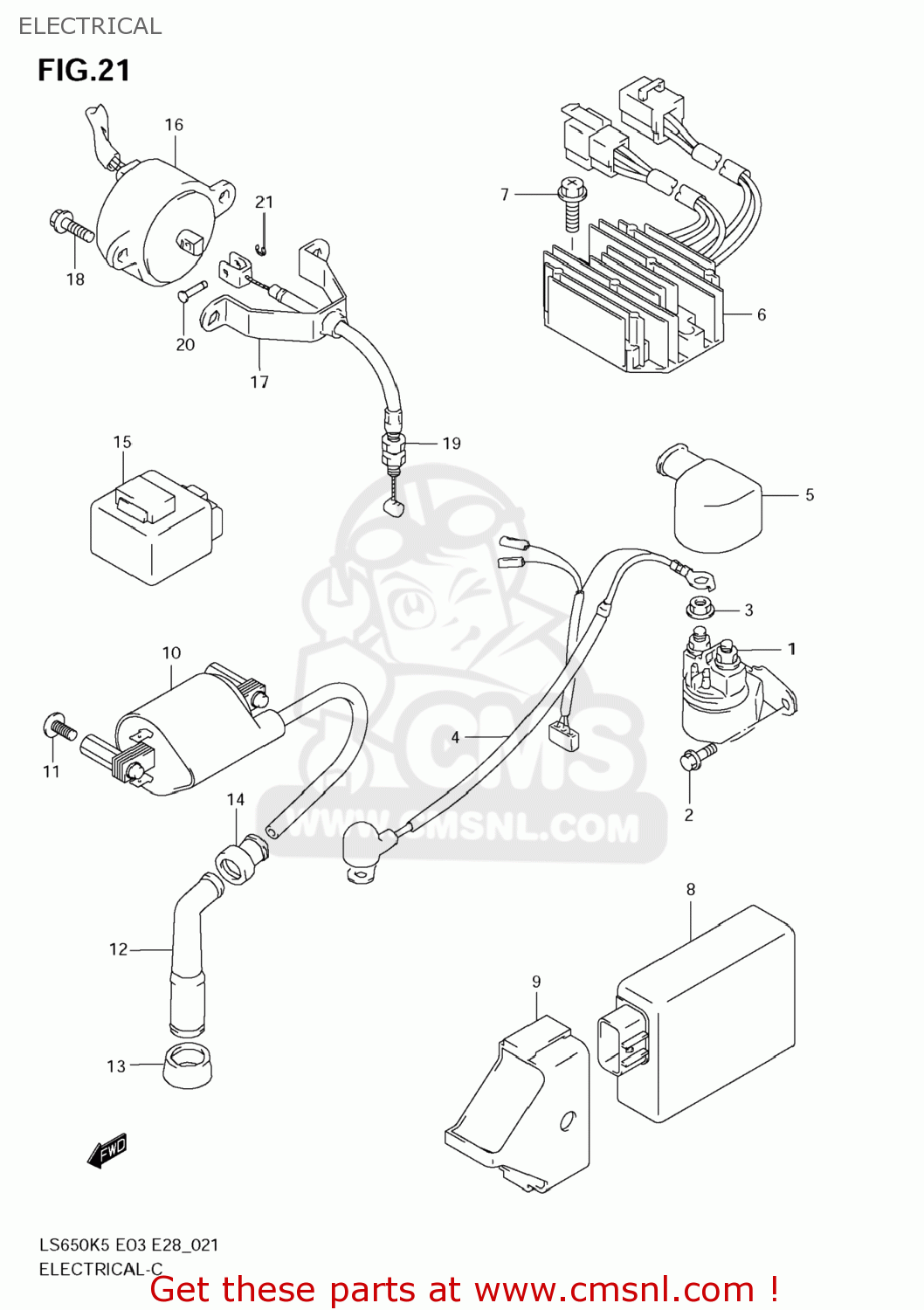

Electrical diagram LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

015500610B
ref: 2

BOLT

€ 2.50

083613506A
ref: 3

NUT

€ 2.00

3385024B10
ref: 4

WIRE,STARTER MOTOR

€ 27.00

3362449401
ref: 5

CAP,STARTER RELAY TERMINAL

€ 5.00

3280024B11
ref: 6

RECTIFIER ASSY

€ 243.50

021620620B
ref: 7

SCREW

€ 2.00

3290024B30
ref: 8

IGNITOR ASSY

€ 423.50

3298024B00
ref: 9

CUSHION,IGNITOR

€ 8.50

3341024B00
ref: 10

COIL ASSY,IGNITION

€ 121.50

021420512B
ref: 11

SCREW

€ 1.50

3351045010
ref: 12

CAP ASSY,SPARK PLUG

€ 23.00

3354138210
ref: 13

SEAL,SPARK PLUG

€ 7.00

3354238B00
ref: 14

SEAL,HIGH TENSION CORD

€ 4.50

3291024B10
ref: 15

CONTROL UNIT,DECOMP

€ 69.50

3397024B00
ref: 16

SOLENOID ASSY,DECOMP

€ 174.00

3397124B00
ref: 17

BRACKET,DECOMP SOLENOID

€ 10.00

015500616B
ref: 18

BOLT

€ 2.50

5890024B01
ref: 19

CABLE ASSY,DECOMP

€ 21.00

0920904020
ref: 20

PIN(4X12.5)

€ 5.50

083321103A
ref: 21

E RING

€ 1.50

ELECTRICAL

all assemblies
