SPEEDOMETER (MODEL K9 E28)

LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

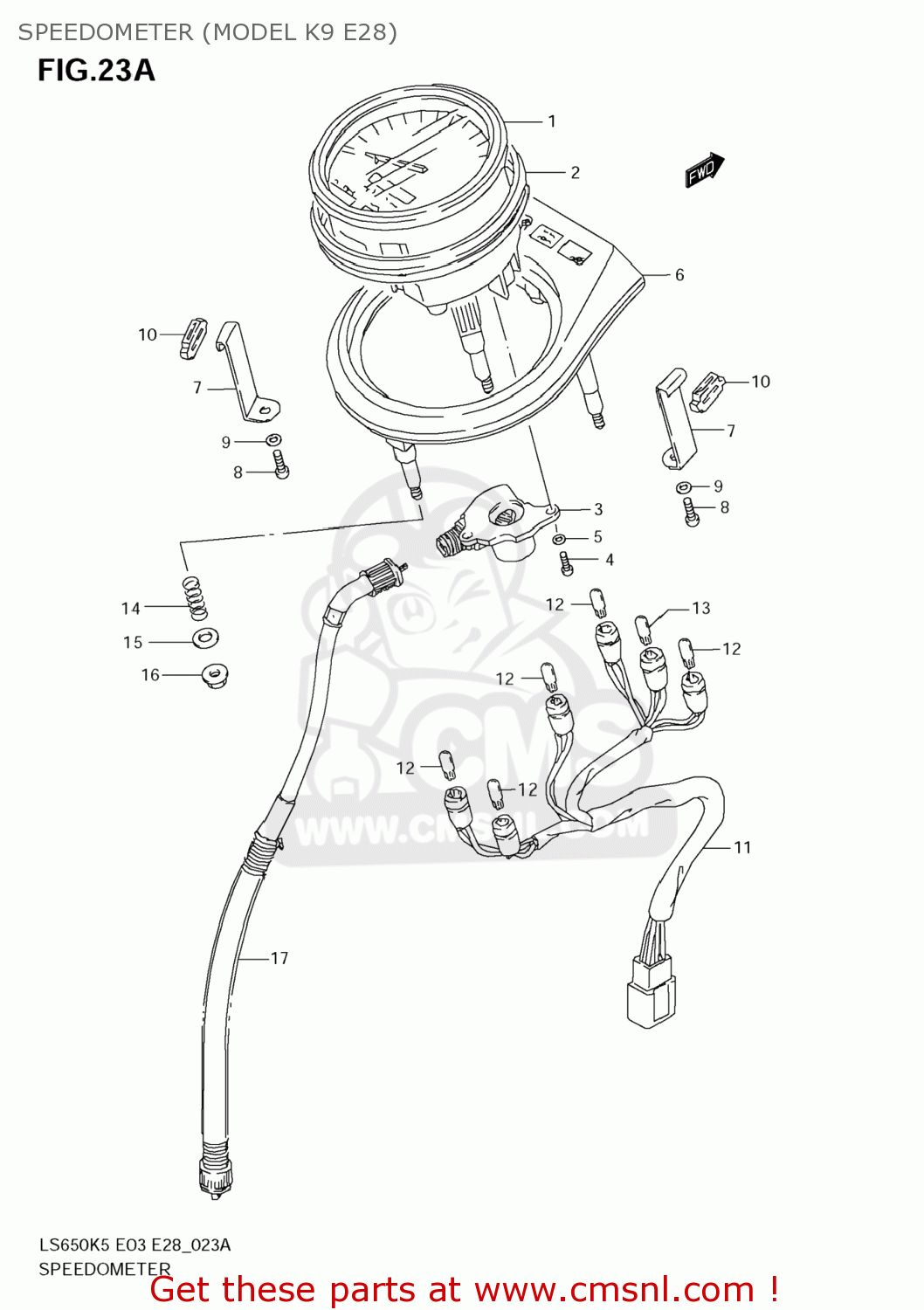

Speedometer (model k9 e28) diagram LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

3411024C31
ref: 1

SPEEDOMETER(KILO)

€ 0.00

3428824B80
ref: 2

CUSHION,METER

€ 12.50

3413119B00
ref: 3

BOX,GEAR

€ 134.00

0211204087
ref: 4

SCREW

€ 1.50

083210104A
ref: 5

WASHER,LOCK

€ 2.00

3415124B51
ref: 6

HOOD,METER

€ 95.50

3411124B80
ref: 7

BRACKET,METER

€ 14.00

0211204087
ref: 8

SCREW

€ 1.50

083210104A
ref: 9

WASHER,LOCK

€ 2.00

3418924B80
ref: 10

CUSHION

€ 4.50

3417024B20
ref: 11

SOCKET,METER

€ 61.00

0947112103
ref: 12

BULB(12V3W,T6.5)

€ 2.50

0947112108
ref: 13

BULB(12V1.7W,T6.5)

€ 2.00

0944011022
ref: 14

SPRING

€ 2.00

0916005048
ref: 15

WASHER(5.5X14X1.2)

€ 2.00

083611505B
ref: 16

NUT

€ 2.50

3491024B00
ref: 17

CABLE ASSY,SPEEDOMETER

€ 80.00

SPEEDOMETER (MODEL K9 E28)
