Buy Suzuki LS Parts Online


STEERING STEM

LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

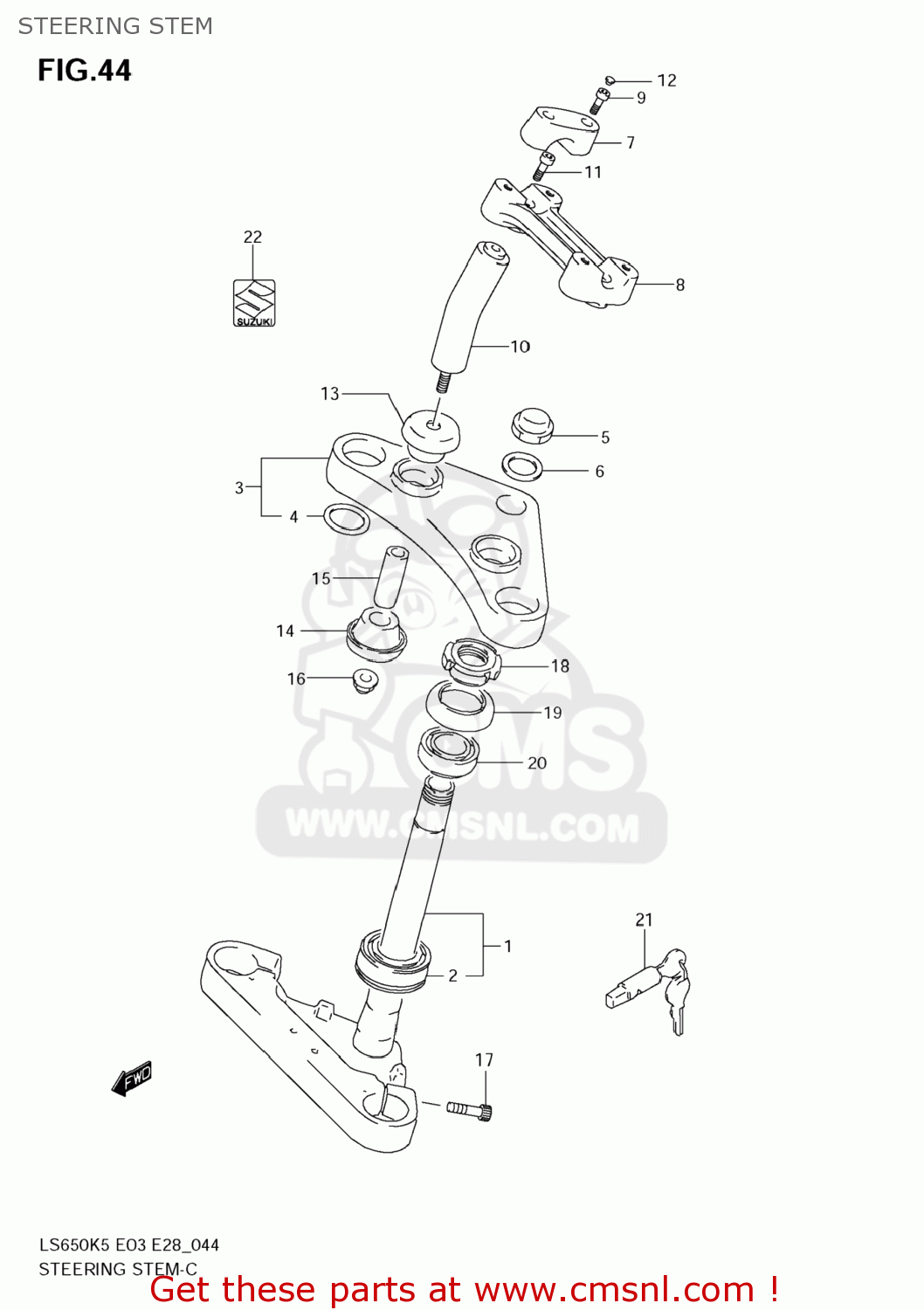

Steering stem diagram LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

STEERING STEM LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)
STEERING STEM LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)
STEERING STEM LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)
prices are in EUR
ref
part #
description
quantity
1
5141024B20
ref: 1
STEM,STEERING
5141024B20
€ 585.50
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5131024B50
ref: 3
HEAD,STEERING STEM
5131024B50
€ 252.00
4
5135724B00
ref: 4
WASHER,STEM HEAD,LOWER
5135724B00
€ 2.50
5
5135324B10
ref: 5
NUT,CAP
€ 0.00
6
5135624B01
ref: 6
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
7
5621124B50
ref: 7
HOLDER,HANDLE UPR
€ 0.00
8
5622124B50
ref: 8
HOLDER,HANDLE LWR
5622124B50
€ 79.00
9
0713008307
ref: 9
BOLT
0713008307
€ 4.50
10
5623124B50
ref: 10
ARM
5623124B50
€ 85.50
11
0713010257
ref: 11
BOLT
0713010257
€ 3.00
12
0925006009
ref: 12
CAP(OD:14.5)
0925006009
€ 3.50
13
5624024B00
ref: 13
CUSHION,UPR
5624024B00
€ 28.50
14
5624024B10
ref: 14
CUSHION,LWR
5624024B10
€ 28.50
15
0918010065
ref: 15
SPACER(10.2X14X46)
0918010065
€ 4.50
16
0831931107
ref: 16
NUT
0831931107
€ 3.00
17
0713010307
ref: 17
BOLT
0713010307
€ 4.50
18
5163128000
ref: 18
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
19
5164349002
ref: 19
SEAL,STEERING UPR DUST
5164349002
€ 7.50
20
0926525019
ref: 20
BEARING(25X47X15)
0926525019
€ 48.50
20
0926525019
ref: 20
BEARING(25X47X15)
0926525019
€ 48.50
21
5190022662
ref: 21
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
22
6828135F00
ref: 22
EMBLEM,S
6828135F00
€ 13.00
