STARTING MOTOR

LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

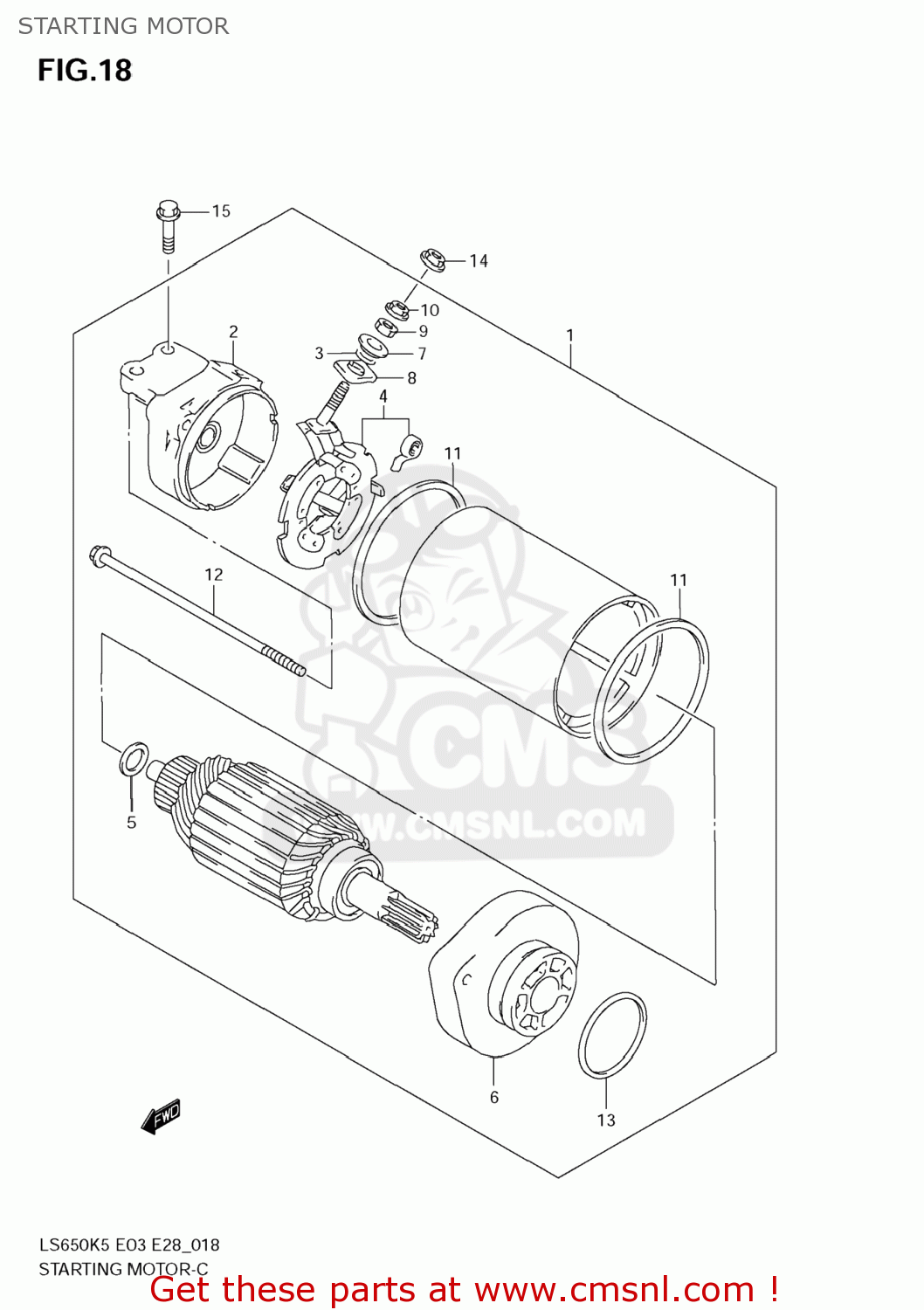

Starting motor diagram LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

3110007F00
ref: 1

MOTOR ASSY,STARTING

€ 620.00

3117007F00
ref: 2

FRAME ASSY

€ 69.50

3114338300
ref: 3

O RING

€ 3.50

3113245C00
ref: 4

HOLDER SET,BRUSH

€ 46.00

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

3115044B00
ref: 6

BRACKET SET

€ 98.50

3117238300
ref: 7

BUSHING

€ 4.00

3117388C00
ref: 8

BUSHING

€ 6.00

0831000067
ref: 9

NUT

€ 2.50

083613506A
ref: 10

NUT

€ 2.00

3126444110
ref: 11

O RING

€ 8.00

3128124B10
ref: 12

BOLT

€ 5.00

0928035005A
ref: 13

O-RING (D:2.1 ID:34.7)

€ 9.50

083613506A
ref: 14

NUT

€ 2.00

0910306223
ref: 15

BOLT(6X20)

€ 2.50
