STAND - REAR BRAKE

LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

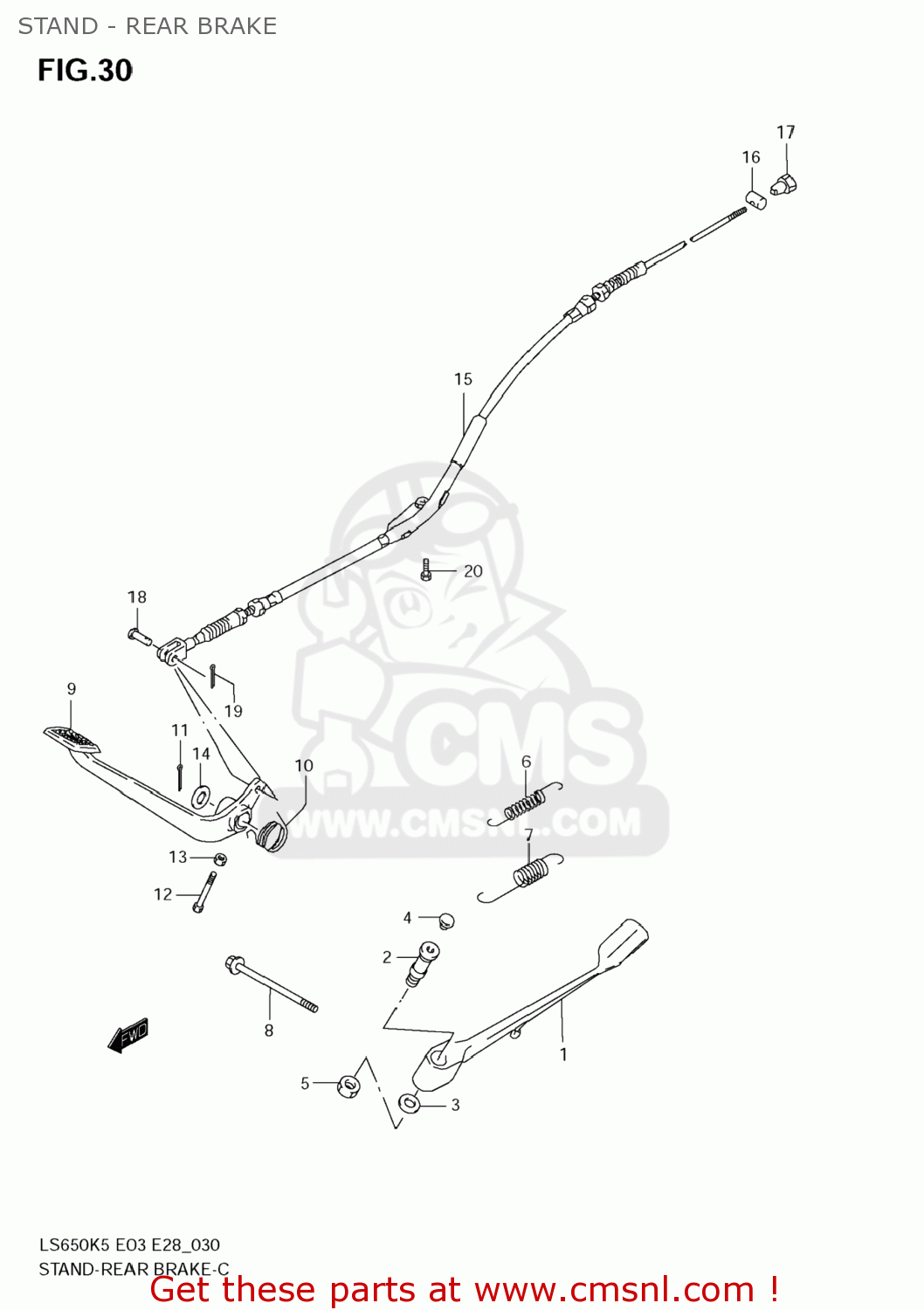

Stand - rear brake diagram LS650 BOULEVARD S40 2008 (K8) USA CALIFORNI CANADA (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

4231024B01
ref: 1

STAND,PROP

€ 92.00

4234138B01
ref: 2

BOLT,PROP STAND

€ 9.00

0918115158
ref: 3

SHIM(15X24X0.5)

€ 2.50

4357524B00
ref: 4

CAP,PROP STAND BOLT

€ 7.00

0914010044
ref: 5

NUT

€ 2.50

0944315034
ref: 6

SPRING

€ 18.50

0944318020
ref: 7

SPRING

€ 18.00

0910310087
ref: 8

BOLT(10X105)

€ 6.50

4311024B10
ref: 9

PEDAL,BRAKE

€ 58.50

0944832017
ref: 10

SPRING

€ 23.00

041113025A
ref: 11

PIN

€ 1.00

0910006150
ref: 12

BOLT(6X31)

€ 1.50

083100006B
ref: 13

NUT

€ 2.00

0916016043
ref: 14

WASHER(16.5X22X1)

€ 2.00

5851024B10
ref: 15

CABLE,RR BRAKE

€ 73.00

0920913018
ref: 16

PIN(13X18)

€ 3.50

0915006010
ref: 17

NUT

€ 3.50

0920005001
ref: 18

PIN(L:17.5)

€ 1.50

041112015A
ref: 19

PIN

€ 1.50

015700616B
ref: 20

BOLT

€ 2.50
