Buy Suzuki LS Parts Online


CARBURETOR

LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

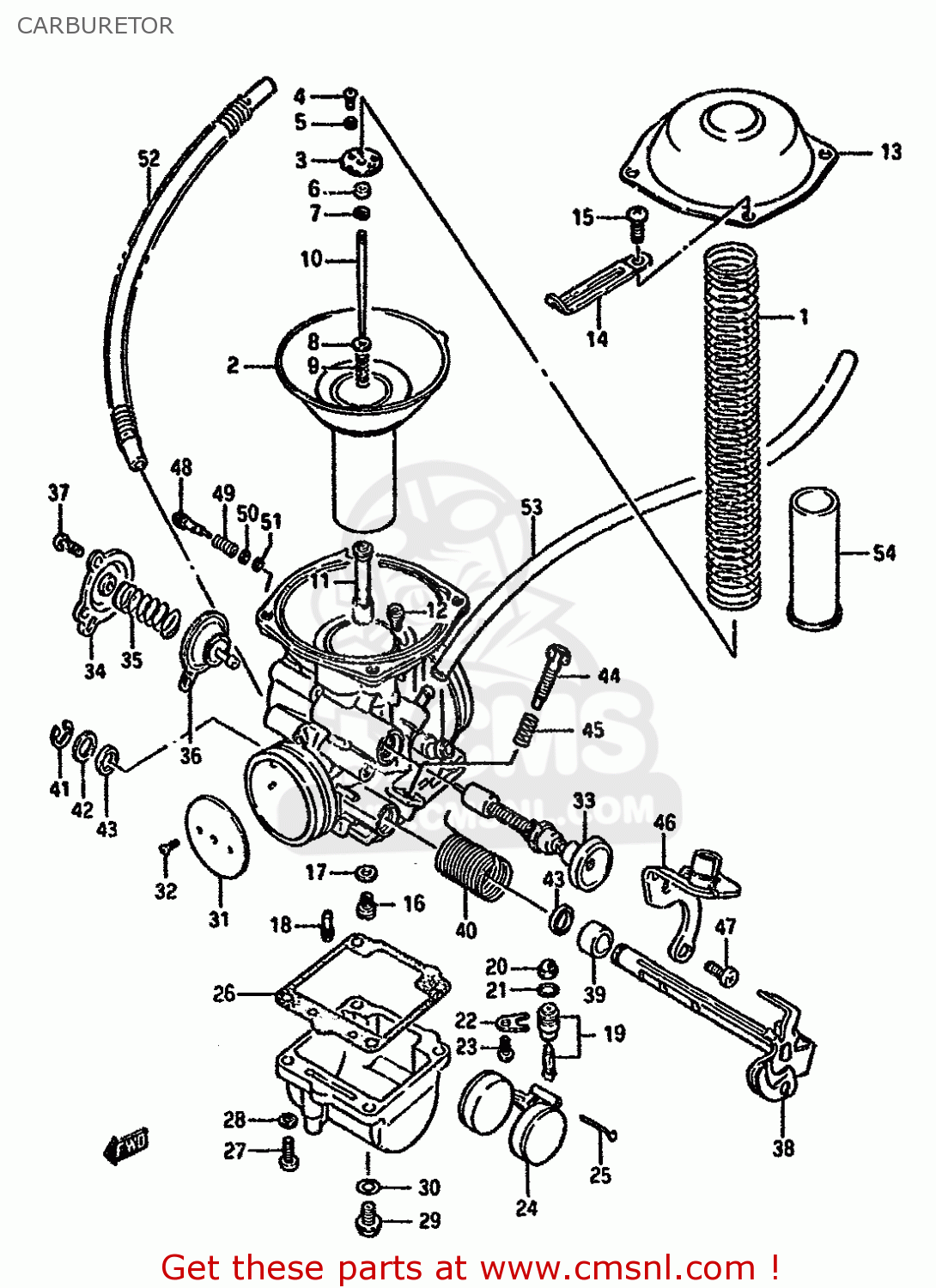

Carburetor diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

CARBURETOR LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
CARBURETOR LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
CARBURETOR LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
0
1320024B41
ref: 0
CARBURETOR ASS
€ 785.00
0
1320024B71
ref: 0
MODEL G/J E18,E22
CARBURETOR ASSY
€ 386.00
0
1320024B72
ref: 0
MODEL K/M E22,MODEL
CARBURETOR ASSY
€ 386.00
0
1320024C30
ref: 0
MODEL R E22
CARBURETOR ASSY
€ 740.00
0
1320024B80
ref: 0
MODEL K/M E18
CARBURETOR ASSY
€ 526.50
0
1320024C20
ref: 0
MODEL R E18
CARBURETOR ASSY
€ 526.50
0
1320024B90
ref: 0
MODEL J E75 (AUSTRAL
CARBURETOR ASSY
€ 386.00
0
1320024C00
ref: 0
MODEL K E39
CARBURETOR ASSY
€ 0.00
0
1320024C10
ref: 0
MODEL M/R E39,MODEL
CARBURETOR ASSY
€ 0.00
1
1350324B00
ref: 1
SPRING
1350324B00
€ 11.00
2
1350024B40
ref: 2
DIAPHRAGM ASSY
1350024B40
€ 136.00
3
1338937400
ref: 3
PLATE
1338937400
€ 5.50
4
0211203066
ref: 4
SCREW
€ 2.00
5
0832121036
ref: 5
LOCK WASHER
0832121036
€ 1.50
6
1338744030
ref: 6
RING
1338744030
€ 5.00
7
1339431210
ref: 7
CLIP,NEEDLE
1339431210
€ 3.50
8
1338244030
ref: 8
WASHER
1338244030
€ 3.50
9
1338844030
ref: 9
SPRING
1338844030
€ 6.00
10
1338324B40
ref: 10
NEEDLE,JET
1338324B40
€ 14.00
11-1
0949400539
ref: 11-1
JET,NEEDLE(X-7)
0949400539
€ 22.00
11-2
0949400587
ref: 11-2
MODEL K/M/R E18 MODE
JET,NEEDLE (X-6)
0949400587
€ 35.50
12
0949170012
ref: 12
JET,PILOT AIR(70)
0949170012
€ 7.50
13
1350237400
ref: 13
COVER
1350237400
€ 18.00
14
1367105A20
ref: 14
CLIP
€ 3.00
15
0211205106
ref: 15
SCREW 5X10
€ 2.00
16
0949126011
ref: 16
JET,MAIN(130)
0949126011
€ 11.50
17
1333244080
ref: 17
WASHER,NEEDLE NOZZLE
€ 2.50
18
0949247013
ref: 18
JET,PILOT(47.5)
0949247013
€ 12.50
19
1337037400
ref: 19
VALVE ASSEMBLY,NEEDLE
1337037400
€ 66.50
20
1337684110
ref: 20
FILTER
€ 6.50
21
1337444080
ref: 21
O-RING,NEEDLE VALVE
1337444080
€ 6.00
22
1337339110
ref: 22
PLATE
1337339110
€ 6.50
23
0211204066
ref: 23
SCREW
€ 2.00
24
1325037400
ref: 24
FLOAT
1325037400
€ 26.00
25
1325492311
ref: 25
PIN,FLOAT
1325492311
€ 2.00
26-1
1325138300
ref: 26-1
GASKET,FLOAT CAHMBER (NAS)
1325138300
€ 8.50
26-2
1325137100H17
ref: 26-2
E17,E77 (SWEDEN) ,E1
GASKET (NA)
€ 8.50
27
0211205166
ref: 27
SCREW
€ 2.00
28
0832121056
ref: 28
LOCK WASHER
0832121056
€ 3.00
29
1324744080
ref: 29
PLUG,DRAIN
1324744080
€ 9.50
30
1324644080
ref: 30
GASKET (NAS)
1324644080
€ 3.50
31
1355137400
ref: 31
VALVE,THROTTLE (BUTTERFLY)
1355137400
€ 43.00
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1341124B00
ref: 33
PLUNGER ASSEMBLY
1341124B00
€ 42.00
34
1348438A10
ref: 34
COVER
€ 16.00
35-1
1348124B00
ref: 35-1
SPRING
1348124B00
€ 3.00
35-2
1348138B00
ref: 35-2
MODEL R E18
SPRING
€ 4.00
36
1348005A10
ref: 36
DIAPHRAGM ASSY
1348005A10
€ 54.50
37
0211204106
ref: 37
SCREWM4X0.7X10
€ 1.00
38
1355024B00
ref: 38
SHAFT ASSEMBLY,THROTTLE
€ 39.50
39
1355705A20
ref: 39
RING
€ 3.00
40
1357324B00
ref: 40
SPRING
€ 0.00
41
1361744080
ref: 41
E RING
1361744080
€ 3.50
42
1355747070
ref: 42
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
43
1365151010
ref: 43
SEAL
1365151010
€ 4.00
44
1326737100
ref: 44
SCREW,THROTTLE STOP
€ 9.00
45
1327193011
ref: 45
SPRING
1327193011
€ 4.50
46
1362124B01
ref: 46
BRACKET ASSY
1362124B01
€ 32.50
47-1
1360545420
ref: 47-1
MODEL G/J/K/L/M
SCREW
€ 2.00
47-2
0211205103
ref: 47-2
MODEL R
SCREW
0211205103
€ 2.00
48-1
1326937410
ref: 48-1
EXCEPT MODEL K/M E18
SCREW,PILOT AIR
1326937410
€ 9.50
48-2
1326937410
ref: 48-2
MODEL K/M/R E39
SCREW,PILOT AIR
1326937410
€ 9.50
48-3
1326937400
ref: 48-3
MODEL R E18
SCREW,AIR
1326937400
€ 9.50
48-4
1326937410
ref: 48-4
MODEL R E22
SCREW,PILOT AIR
1326937410
€ 9.50
49
1326847070
ref: 49
EXCEPT MODEL K/M E18
SPRING
1326847070
€ 5.00
50
1329129900
ref: 50
EXCEPT MODEL K/M E18
WASHER
1329129900
€ 2.00
51
1329529900
ref: 51
EXCEPT MODEL K/M E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
52
1331824B00
ref: 52
HOSE ASSEMBLY
€ 18.50
53
1368422A00
ref: 53
L:550 250
HOSE
€ 13.00
54-1
1348524B70
ref: 54-1
E18,E22,MODEL M E15
PIPE
1348524B70
€ 21.00
54-2
1348524B90
ref: 54-2
MODEL J E75 (AUSTRAL
PIPE
€ 0.00
