CRANKSHAFT

LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

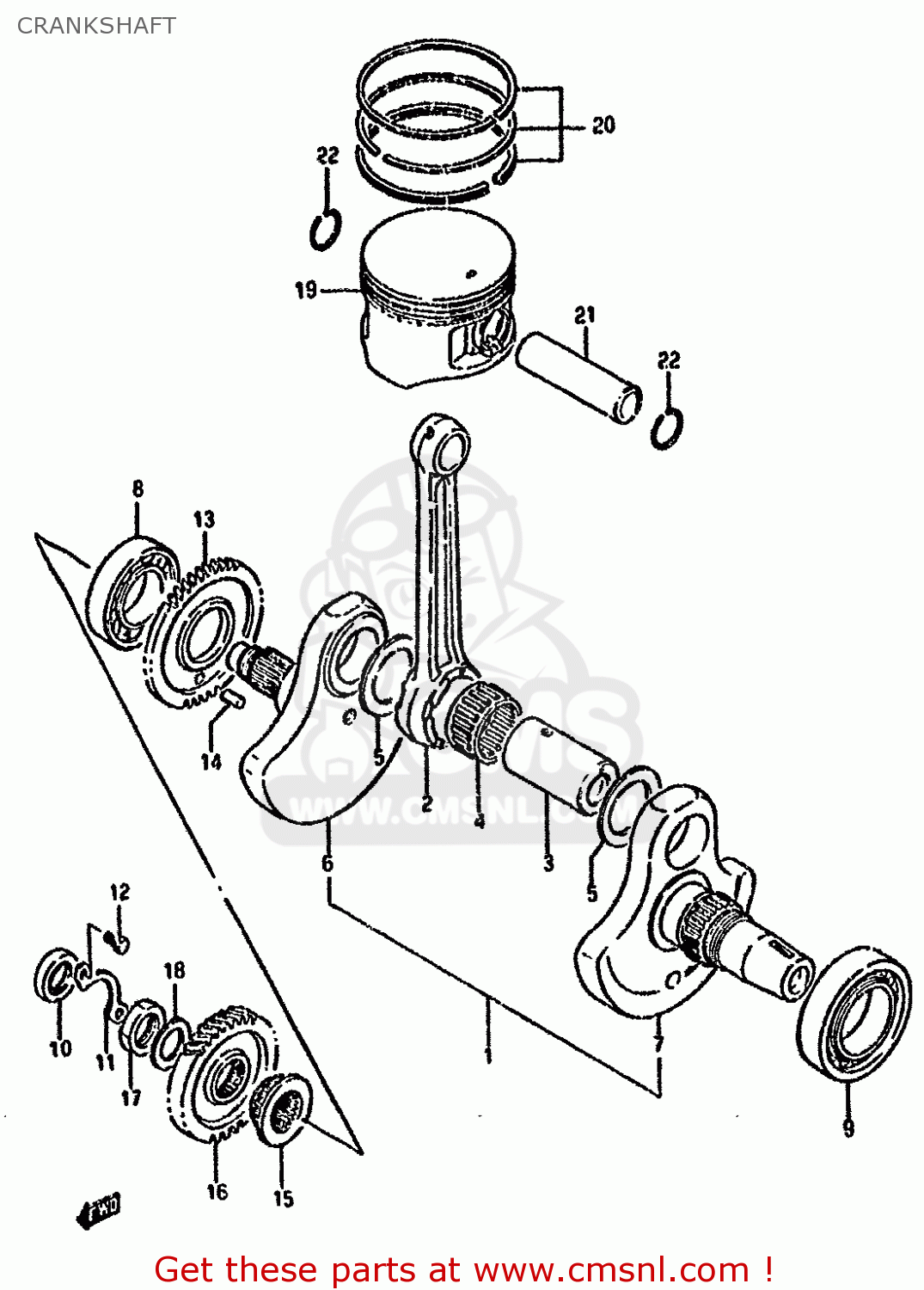

Crankshaft diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

CRANKSHAFT LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
CRANKSHAFT LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
CRANKSHAFT LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1
1220024B05
ref: 1
CRANKSHAFT ASSY
€ 972.00
2
1216124B010C0
ref: 2
ROD,CONNECTING
1216124B010C0
€ 109.50
3
1221024B010A0
ref: 3
PIN,CRANK
1221024B010A0
€ 47.50
4
09263370040B0
ref: 4
09263-37002
BEARING(37X47X25)
09263370040B0
€ 33.00
5
0916037006
ref: 5
WASHER(37X55X1)
0916037006
€ 8.50
6
1222124B02
ref: 6
CRANKSHAFT,R
€ 331.00
7
1226124B02
ref: 7
CRANKSHAFT,L
€ 198.50
8
0926235038
ref: 8
BEARING(35X72X17)
0926235038
€ 38.00
9
0926440002
ref: 9
BEARING(40X80X18)
0926440002
€ 93.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
0928216002
€ 8.50
11
1254824B00
ref: 11
RETAINER,CRANKSHAFT OIL SEAL,R
1254824B00
€ 2.50
12-1
0110405088
ref: 12-1
MODEL G/J/K/L/M
BOLT 5X16
€ 2.00
12-2
0150005083
ref: 12-2
MODEL R
BOLT
€ 2.00
13
1266124B00
ref: 13
NT:47
GEAR,CRANK BALANCER DRIVE
1266124B00
€ 106.00
14
0422108149
ref: 14
PIN
0422108149
€ 2.50
15
1273124B00
ref: 15
NT:19
SPROCKET,CAM CHAIN DRIVE
1273124B00
€ 44.50
16-1
2111124B00
ref: 16-1
MODEL G/J/K/L LS650P
GEAR,PRIMARY DRIVE
€ 83.50
16-2
2111124B10
ref: 16-2
MODEL M/R E2,E15,E16
GEAR,PRIMARY DRIVE
2111124B10
€ 77.00
17
0914020008
ref: 17
NUT (20MM)
0914020008
€ 4.00
18
0916420003
ref: 18
WASHER
0916420003
€ 2.50
19-1
1211124B01
ref: 19-1
PISTON (94.00MM)
1211124B01
€ 83.00
19-2
1211124B01050
ref: 19-2
OPT
PISTON
1211124B01050
€ 122.00
19-3
1211124B01100
ref: 19-3
OPT
PISTON
€ 138.00
20-1
1214014A31
ref: 20-1
RING SET,PISTON
€ 51.00
20-2
1214014A31050
ref: 20-2
OPT
RING SET,PISTON (OS:0.5)
1214014A31050
€ 61.00
20-3
1214014A31100
ref: 20-3
OPT
RING SET,PISTON
€ 33.00
21
1215124B00
ref: 21
PIN,PISTON
1215124B00
€ 22.50
22
0938123003
ref: 22
CIRCLIP
0938123003
€ 1.50
