CYLINDER HEAD

LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

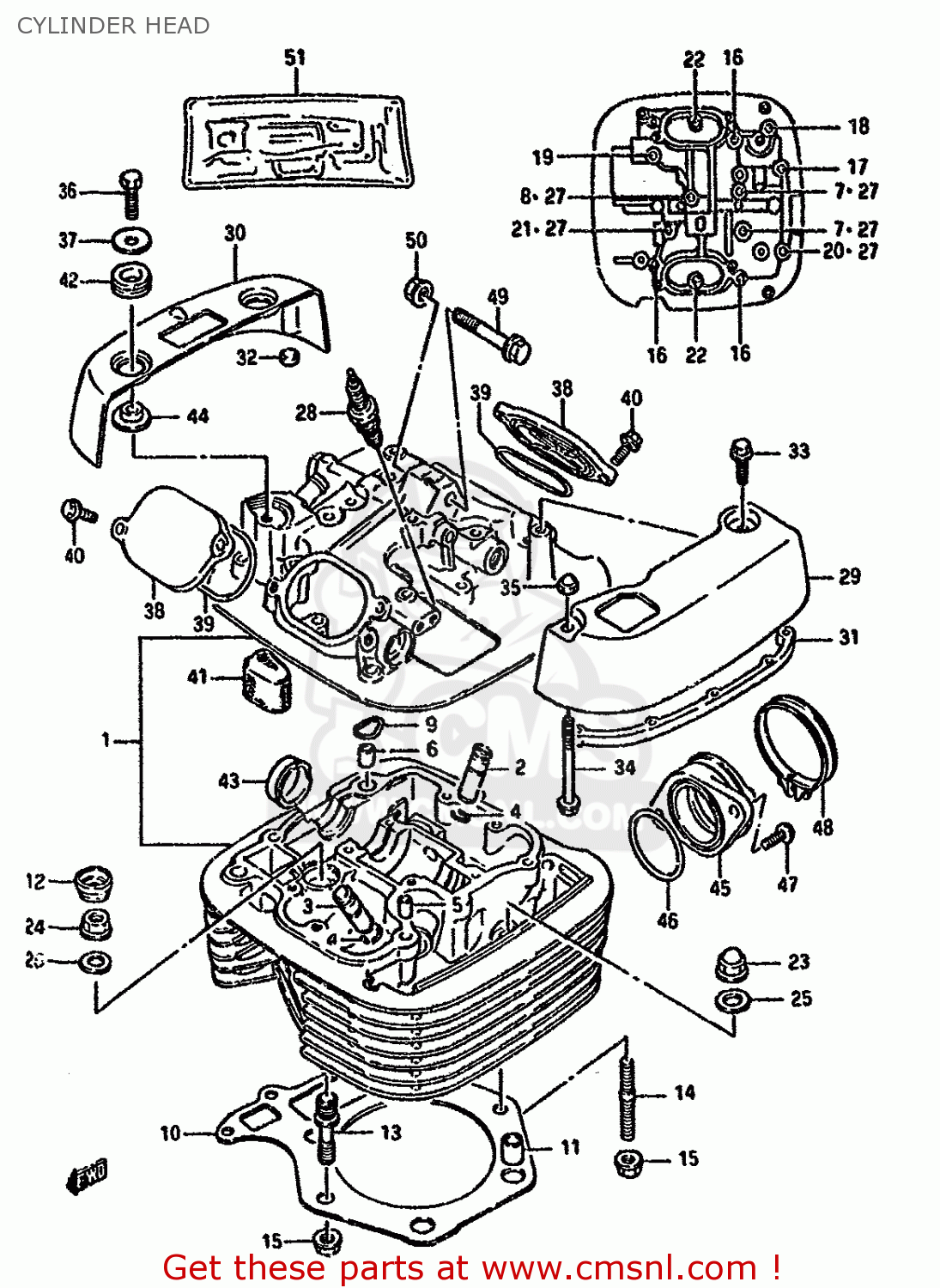

Cylinder head diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

CYLINDER HEAD LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
CYLINDER HEAD LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
CYLINDER HEAD LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1
1110024B06
ref: 1
HEAD ASSY,CYLINDER
€ 1,018.50
2
1111544B70
ref: 2
GUIDE,VALVE
1111544B70
€ 19.00
3
1111537470
ref: 3
GUIDE,VALVE
1111537470
€ 20.00
4
0938110003
ref: 4
RING,SNAP
0938110003
€ 2.50
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
0920611011
ref: 6
PIN(11X14)
0920611011
€ 6.00
7
0910306064
ref: 7
BOLT(6X60)
0910306064
€ 2.50
8
0910306103
ref: 8
BOLT(6X70)
0910306103
€ 2.50
9
1117824B00
ref: 9
O RING,CYL HEAD COVER
1117824B00
€ 2.00
10
1114124B02
ref: 10
GASKET,CYLINDER HEAD (NAS)
1114124B02
€ 38.00
11
0920613001
ref: 11
PIN
0920613001
€ 2.50
12
1114537400
ref: 12
NUT,CYLINDER HEAD SEAL
1114537400
€ 12.00
13
0910808205
ref: 13
BOLT,STUD
0910808205
€ 10.50
14
0910808206
ref: 14
BOLT,STUD(8X31)
0910808206
€ 3.50
15
0831610087
ref: 15
NUT
0831610087
€ 2.50
16
0910306026
ref: 16
BOLT(6X39)
0910306026
€ 2.00
17
0910306033
ref: 17
BOLT(6X125)
0910306033
€ 3.50
18
0910306052
ref: 18
BOLT(6X115)
0910306052
€ 5.00
19
0910306064
ref: 19
BOLT(6X60)
0910306064
€ 2.50
20
0910306085
ref: 20
BOLT(6X130)
0910306085
€ 4.50
21
0910306102
ref: 21
BOLT(6X55)
0910306102
€ 2.50
22
0155006257
ref: 22
BOLT
0155006257
€ 2.50
23
0915909003
ref: 23
NUT
0915909003
€ 6.50
24
0915909004
ref: 24
NUT
0915909004
€ 2.00
25
0916810017
ref: 25
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
26
0916810031
ref: 26
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
27
0916806023
ref: 27
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
28-1
0948200334
ref: 28-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
28-2
0948200335111
ref: 28-2
SPARK PLUG X24EPR-U9
€ 4.00
28-3
0948200354
ref: 28-3
OPT
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
28-4
0948200355111
ref: 28-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
28-5
0948200332
ref: 28-5
MODEL G E24,MODEL G/
SPARK PLUG DP8EA-9
€ 4.00
28-6
0948200333111
ref: 28-6
MODEL G E24,MODEL G/
SPARK PLUG X24EP-U9
€ 0.00
28-7
0948200352
ref: 28-7
MODEL G E24,OPT
SPARK PLUG DP7EA-9
€ 4.00
28-8
0948200353111
ref: 28-8
MODEL G E24,OPT
SPARK PLUG X22EP-U9
€ 0.00
29
1117124B04
ref: 29
CAP,HEAD COVER,L
1117124B04
€ 132.00
30
1117224B04
ref: 30
CAP,CYLINDER HEAD COVER,R
1117224B04
€ 132.00
31
1127224B01
ref: 31
CUSHION,HEAD COVER CAP,L
1127224B01
€ 7.00
32
1127324B00
ref: 32
CUSHION,R CAP
1127324B00
€ 4.00
33
0155006207
ref: 33
BOLT
0155006207
€ 2.50
34
0155006657
ref: 34
BOLT
0155006657
€ 3.00
35
0831320067
ref: 35
NUT
0831320067
€ 2.00
36
0150006257
ref: 36
BOLT
0150006257
€ 2.00
37
0916006095
ref: 37
WASHER (6.5X24X1.6)
€ 1.50
38
1117524B02
ref: 38
CAP,INSPECTION
1117524B02
€ 14.50
39
0928060004
ref: 39
O RING(D:2.4,ID:23)
0928060004
€ 4.50
40
0155006207
ref: 40
BOLT
0155006207
€ 2.50
41
1118624B02
ref: 41
SEPARATOR,OIL BREATHER COVER
1118624B02
€ 9.00
42
0932013015
ref: 42
CUSHION
0932013015
€ 3.00
43
0924130008
ref: 43
PLUG(OD:30)
0924130008
€ 7.00
44
0930106007
ref: 44
BUSH
0930106007
€ 3.50
45
1311014A11
ref: 45
PIPE,INTAKE
1311014A11
€ 38.50
46
0928046002
ref: 46
O RING(D:2.4,ID:45.7)
0928046002
€ 9.50
47-1
0215206205
ref: 47-1
MODEL G/J/K/L/M
SCREW
€ 2.00
47-2
0211216203
ref: 47-2
MODEL R
SCREW
0211216203
€ 2.50
48-1
0940258208
ref: 48-1
MODEL G/J/K/L/M
CLAMP
0940258208
€ 5.50
48-2
0940258207
ref: 48-2
MODEL R
CLAMP
€ 5.50
49
0910308170
ref: 49
BOLT
0910308170
€ 3.50
50
0831931087
ref: 50
NUT
0831931087
€ 2.50
51
1140024855
ref: 51
GASKET SET (NAS)
€ 143.50
