SPEEDOMETER (MODEL R)

LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

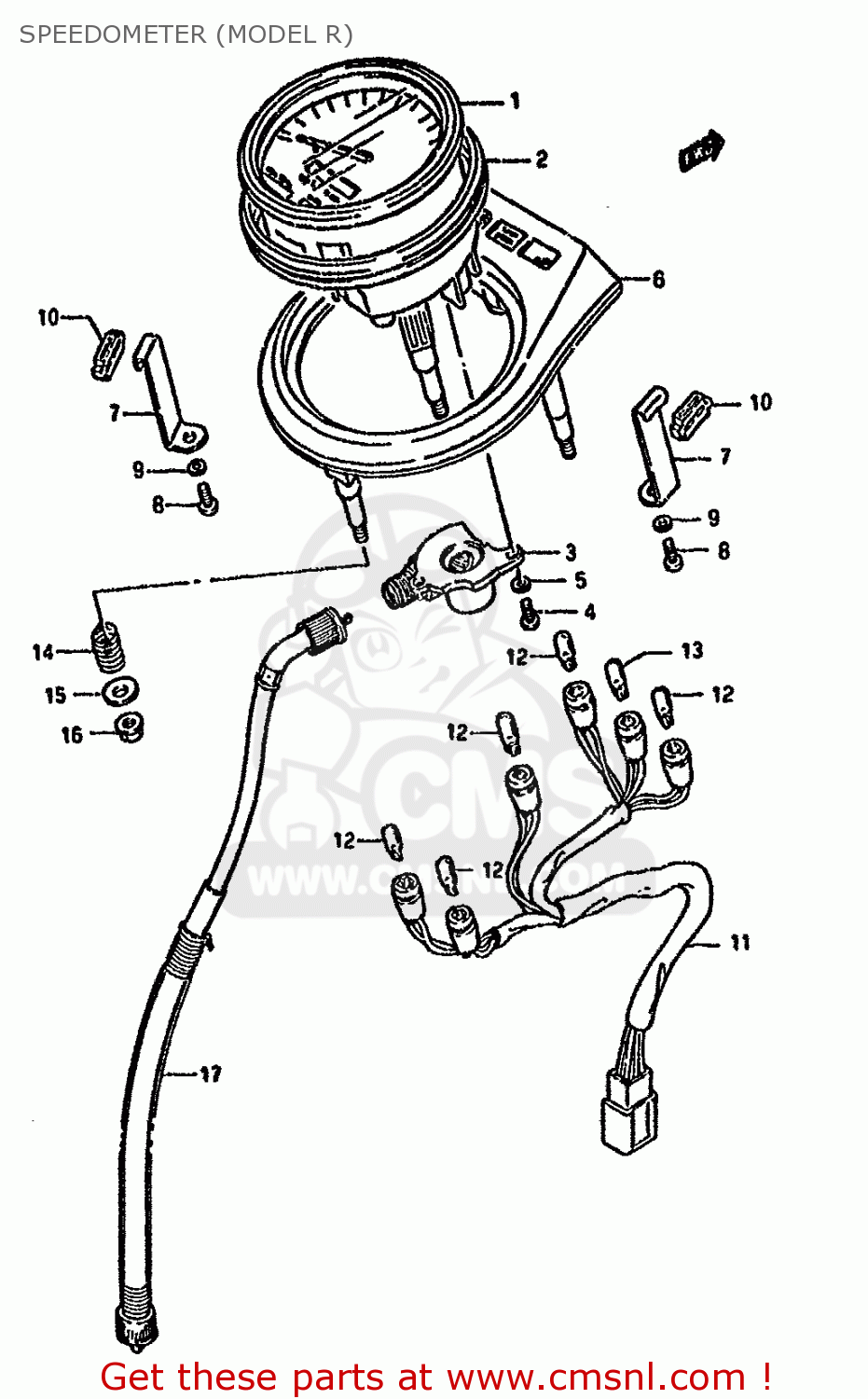

Speedometer (model r) diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

SPEEDOMETER (MODEL R) LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
SPEEDOMETER (MODEL R) LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
SPEEDOMETER (MODEL R) LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1-1
3411024C20
ref: 1-1
SPEEDOMETER(MILE/KILO)
€ 254.50
1-2
3411024B40
ref: 1-2
E4,E15,E17,E18,E22,E
SPEEDOMETER(KILO)
3411024B40
€ 262.50
2
3428824B80
ref: 2
CUSHION,METER
3428824B80
€ 12.50
3
3413133450
ref: 3
GEAR BOX,SPEEDOMETER
3413133450
€ 134.00
4
0211204087
ref: 4
SCREW
0211204087
€ 1.50
5
0832121047
ref: 5
WASHER,LOCK 4M
0832121047
€ 2.00
6-1
3415124B80
ref: 6-1
HOOD,METER
3415124B80
€ 97.50
6-2
3415124B50
ref: 6-2
E4,E15,E17,E18,E22,E
HOOD,METER
3415124B50
€ 95.50
7
3411124B80
ref: 7
BRACKET,METER
3411124B80
€ 14.00
8
0211204087
ref: 8
SCREW
0211204087
€ 1.50
9
0832121047
ref: 9
WASHER,LOCK 4M
0832121047
€ 2.00
10
3418924B80
ref: 10
CUSHION
3418924B80
€ 4.50
11
3417024B20
ref: 11
SOCKET,METER
3417024B20
€ 61.00
12
0947112103
ref: 12
BULB(12V3W,T6.5)
0947112103
€ 2.50
13
0947112108
ref: 13
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
14
0944011022
ref: 14
SPRING
0944011022
€ 2.00
15
0916005036
ref: 15
WASHER (5.5X14X1.2)
0916005036
€ 2.00
16
0836115053
ref: 16
NUT
€ 2.50
17
3491024B00
ref: 17
CABLE ASSY,SPEEDOMETER
3491024B00
€ 80.00
15
0916005036
ref: 15
WASHER (5.5X14X1.2)
0916005036
€ 2.00
16-1
0831012055
ref: 16-1
MODEL G/J
NUT ,5MM
0831012055
€ 2.50
16-2
0836115053
ref: 16-2
MODEL K/L/M
NUT
€ 2.50
17
0832121055
ref: 17
MODEL G/J
WASHER,LOCK
0832121055
€ 3.00
18
3491024B00
ref: 18
CABLE ASSY,SPEEDOMETER
3491024B00
€ 80.00
