FOOTREST
LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

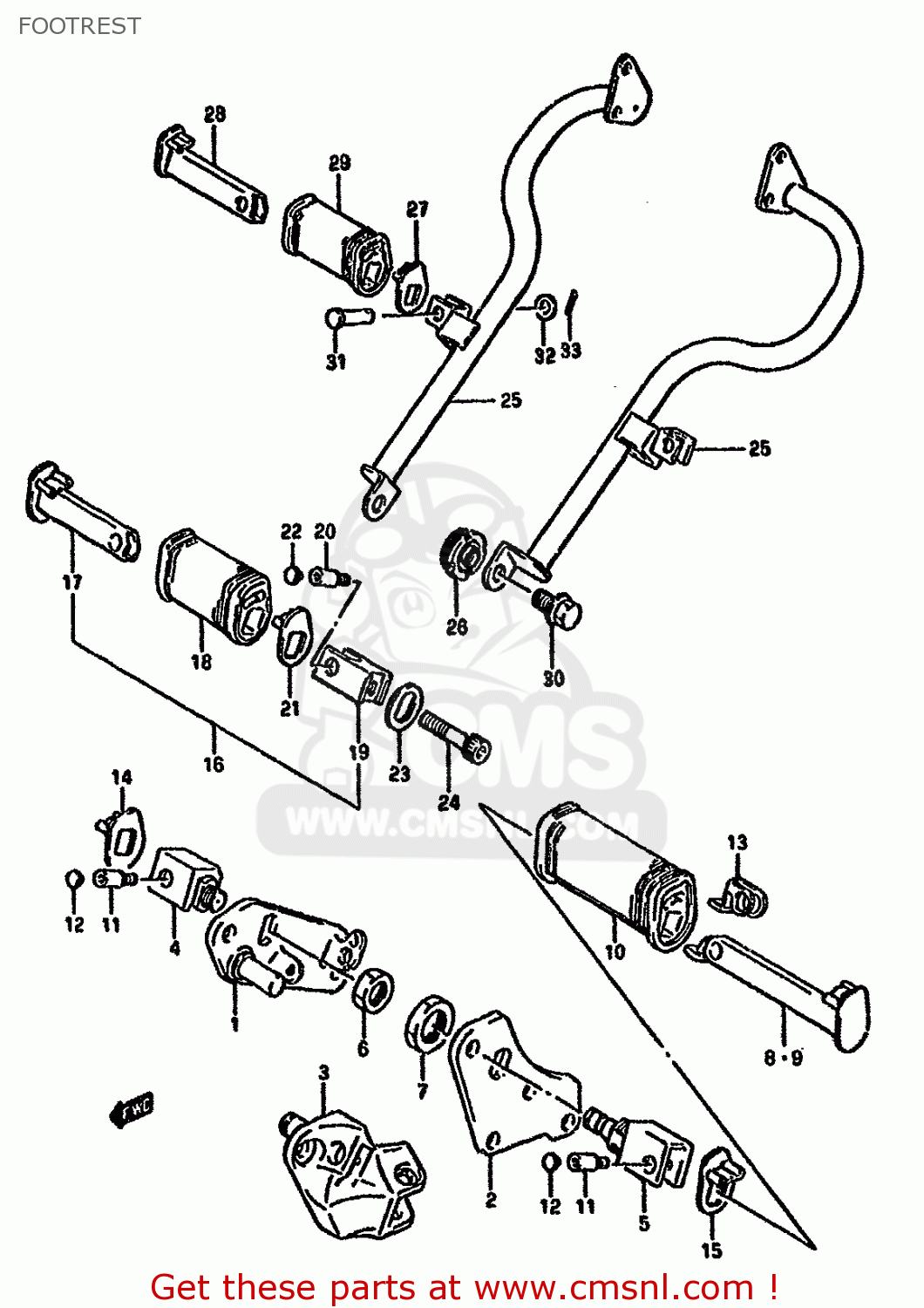

Footrest diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
FOOTREST LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1
4351024B00
ref: 1
BRACKET,FR FOOTREST,R
€ 144.00
2-1
4352024B11
ref: 2-1
MODEL G
BRACKET,FRONT FOOTREST LH
€ 36.00
2-2
4352024B02
ref: 2-2
MODEL G E4,E17,E21,E
BRACKET,FRONT FOOTREST
€ 36.00
3
4352024B21
ref: 3
MODEL J/K/L/M/R
BRACKET,FRONT FOOTREST
€ 166.00
4
4351724B01
ref: 4
HOLDER,FR FOOTREST,R
€ 59.00
5
4352724B01
ref: 5
MODEL G
HOLDER,FR FOOTREST,L
€ 66.50
6
0914016029
ref: 6
NUT
€ 3.50
7
0914022006
ref: 7
MODEL G
NUT
€ 6.00
8-1
4353024B10
ref: 8-1
MODEL G
BAR,FRONT FOOTREST RH
€ 39.00
8-2
4353024B01
ref: 8-2
MODEL J/K/L/M/R
BAR,FRONT FOOTREST,RIGHT
€ 39.00
9-1
4354024B10
ref: 9-1
MODEL G
BAR,FRONT FOOTREST LH
€ 39.00
9-2
4354024B01
ref: 9-2
MODEL J/K/L/M/R
BAR,FRONT FOOTREST,LEFT
€ 39.00
10
4355138A00
ref: 10
RUBBER,FR FOOTREST
€ 9.00
11
4364138A00
ref: 11
BOLT,FRONT FOOTREST RUBBER
€ 5.00
12
4357624B00
ref: 12
CAP,PILLION FOOTREST BOLT
€ 3.00
13-1
4357024B00
ref: 13-1
MODEL G/J/K/L/M
CUSHION,FRONT FOOTREST
€ 5.50
13-2
4357024B01
ref: 13-2
MODEL R
CUSHION,FR FOOTREST
€ 5.50
14
4347024B00
ref: 14
WASHER,FR FOOTREST,R
€ 4.50
15
4348024B00
ref: 15
WASHER,FR FOOTREST,L
€ 4.50
16-1
4360024B00
ref: 16-1
FOOTREST ASSY,PILLION,R
€ 81.00
16-2
4370024B00
ref: 16-2
FOOTREST ASSY,PILLION,L
€ 81.00
17-1
4361024B00
ref: 17-1
BAR COMP,PILLION FOOTREST
€ 20.50
17-2
4371024B00
ref: 17-2
BAR,PILLION FOOTREST,LEFT
€ 24.00
18
4365124B00
ref: 18
RUBBER,PILLION FOOTREST
€ 9.50
19-1
4362124B00
ref: 19-1
MODEL G
BAR,PILLION FOOTREST
€ 38.50
19-2
4362124B10
ref: 19-2
MODEL J/K/L/M/R
HOLDER,PILLION FOOTREST
€ 38.50
20
4364138A00
ref: 20
BOLT,FRONT FOOTREST RUBBER
€ 5.00
21-1
4357038A00
ref: 21-1
WASHER,FR FOOTREST,R
€ 5.00
21-2
4358038A00
ref: 21-2
WASHER,FR FOOTREST,L
€ 8.50
22
4357624B00
ref: 22
CAP,PILLION FOOTREST BOLT
€ 3.00
23
4362224B00
ref: 23
WASHER,PILLION FOOTREST HOLDER
€ 2.00
24-1
0711010455
ref: 24-1
MODEL G/J/K
BOLT
€ 4.00
24-2
0910610022
ref: 24-2
MODEL L/M
BOLT 10X45
€ 4.00
24-3
0713010453
ref: 24-3
MODEL R
BOLT
€ 4.00
25-1
4365024B10
ref: 25-1
E34
HOLDER,PILLION FOOTREST RH
€ 0.00
25-2
4375024B10
ref: 25-2
E34
HOLDER,PILLION FOOTREST LH
€ 0.00
26
4376024B10
ref: 26
E34
BOSS,PILLION FOOTREST
€ 85.00
27-1
4357038A00
ref: 27-1
E34
WASHER,FR FOOTREST,R
€ 5.00
27-2
4358038A00
ref: 27-2
E34
WASHER,FR FOOTREST,L
€ 8.50
28-1
4361024B00
ref: 28-1
E34
BAR COMP,PILLION FOOTREST
€ 20.50
28-2
4371024B00
ref: 28-2
E34
BAR,PILLION FOOTREST,LEFT
€ 24.00
29
4365124B00
ref: 29
E34
RUBBER,PILLION FOOTREST
€ 9.50
30
0151712165
ref: 30
E34
BOLT
€ 3.00
31
0920010016
ref: 31
E34
PIN
€ 3.00
32
0832211104
ref: 32
E34
WASHER 10MM
€ 2.50
33
0411125208
ref: 33
E34
PIN 25X20
€ 2.00
