FRONT CALIPER

LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

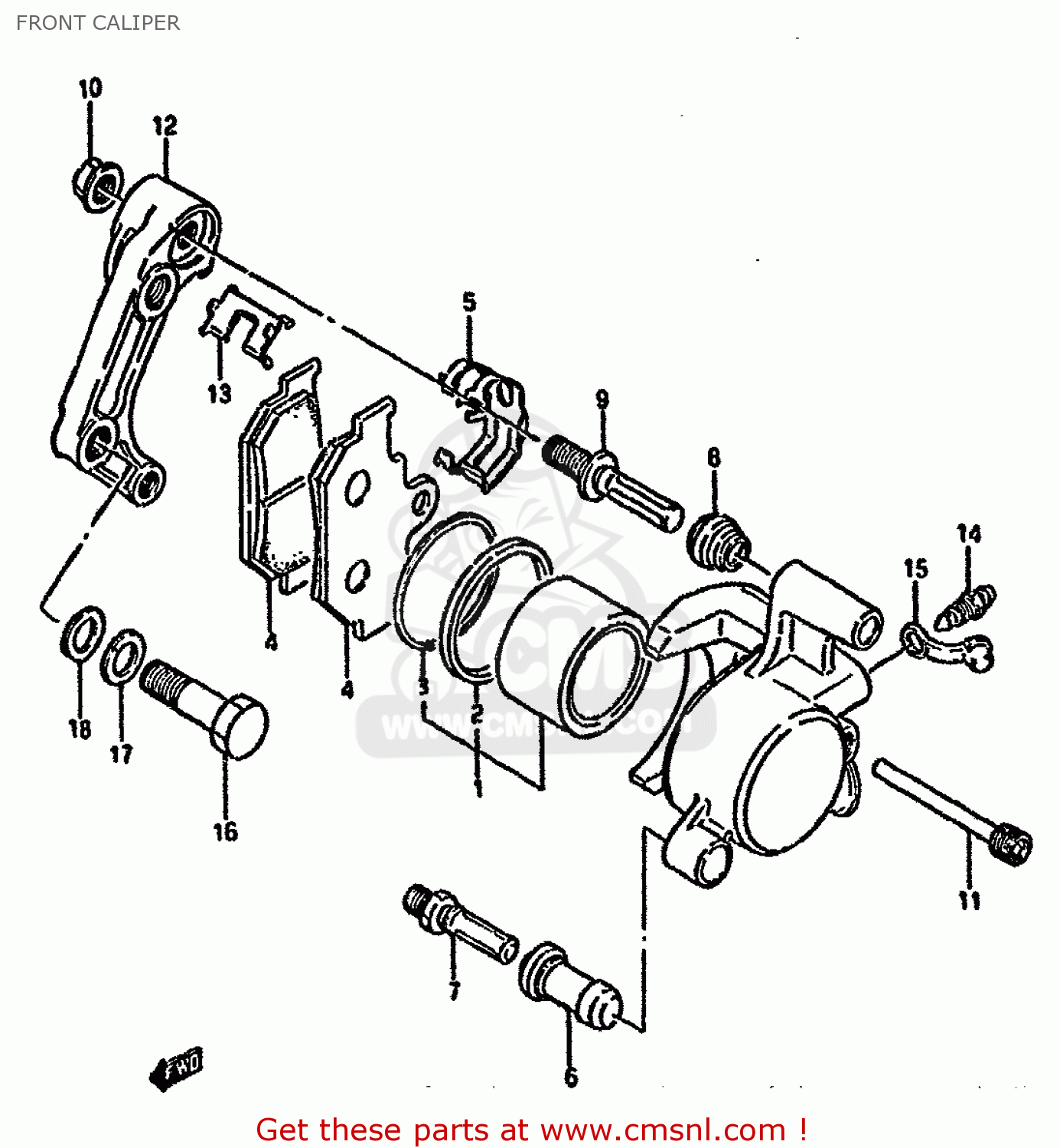

Front caliper diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

FRONT CALIPER LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
FRONT CALIPER LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
FRONT CALIPER LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
0
5930024B00
ref: 0
MODEL G,MODEL J E75
CALIPER ASSEMBLY,FRONT,LEFT
€ 500.50
0
5930024B10
ref: 0
MODEL J/K/M,E1,E4,E1
CALIPER ASSEMBLY,FRONT,LEFT
€ 500.50
1
5930024820
ref: 1
PISTON SET
5930024820
€ 58.00
2
5910724B00
ref: 2
SEAL,PISTON
5910724B00
€ 14.00
3
5910824B00
ref: 3
SEAL,DUST
5910824B00
€ 14.00
4-1
5934024B00
ref: 4-1
MODEL G,MODEL J E75
PAD
5934024B00
€ 41.50
4-2
5934024B10
ref: 4-2
MODEL J/K/M,E1,E4,E1
PAD
€ 41.50
5
5931514600
ref: 5
SPRING
5931514600
€ 6.50
6
5938613A00
ref: 6
BOOT
5938613A00
€ 6.50
7
5938214500
ref: 7
PIN,BOLT
5938214500
€ 7.50
8
5930314500
ref: 8
BOOT
5930314500
€ 5.50
9
5930514500
ref: 9
PIN,SLIDE
5930514500
€ 12.50
10
5930614500
ref: 10
NUT,SLIDE PIN
5930614500
€ 2.50
11
5934514600
ref: 11
PIN,HANGER
5934514600
€ 10.50
12
5935124B00
ref: 12
BRACKET
€ 41.50
13
5931624B00
ref: 13
RETAINER
€ 6.00
14
5912101A00
ref: 14
BLEEDER
5912101A00
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
5912201A00
€ 4.50
16
0910410029
ref: 16
BOLT(10X38)
0910410029
€ 3.50
17-1
0832121107
ref: 17-1
MODEL G/J/K/L/M
WASHER,LOCK,10
0832121107
€ 2.00
17-2
0832101107
ref: 17-2
MODEL R
WASHER,LOCK
0832101107
€ 2.00
18-1
0832221108
ref: 18-1
MODEL G/J/K/L/M
WASHER
0832221108
€ 2.50
18-2
0832201107
ref: 18-2
MODEL R
WASHER
0832201107
€ 2.50
