FRONT FENDER (E1,E2,E4,E17,E18,E21,E22,E25,E34,E39,E53)

LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

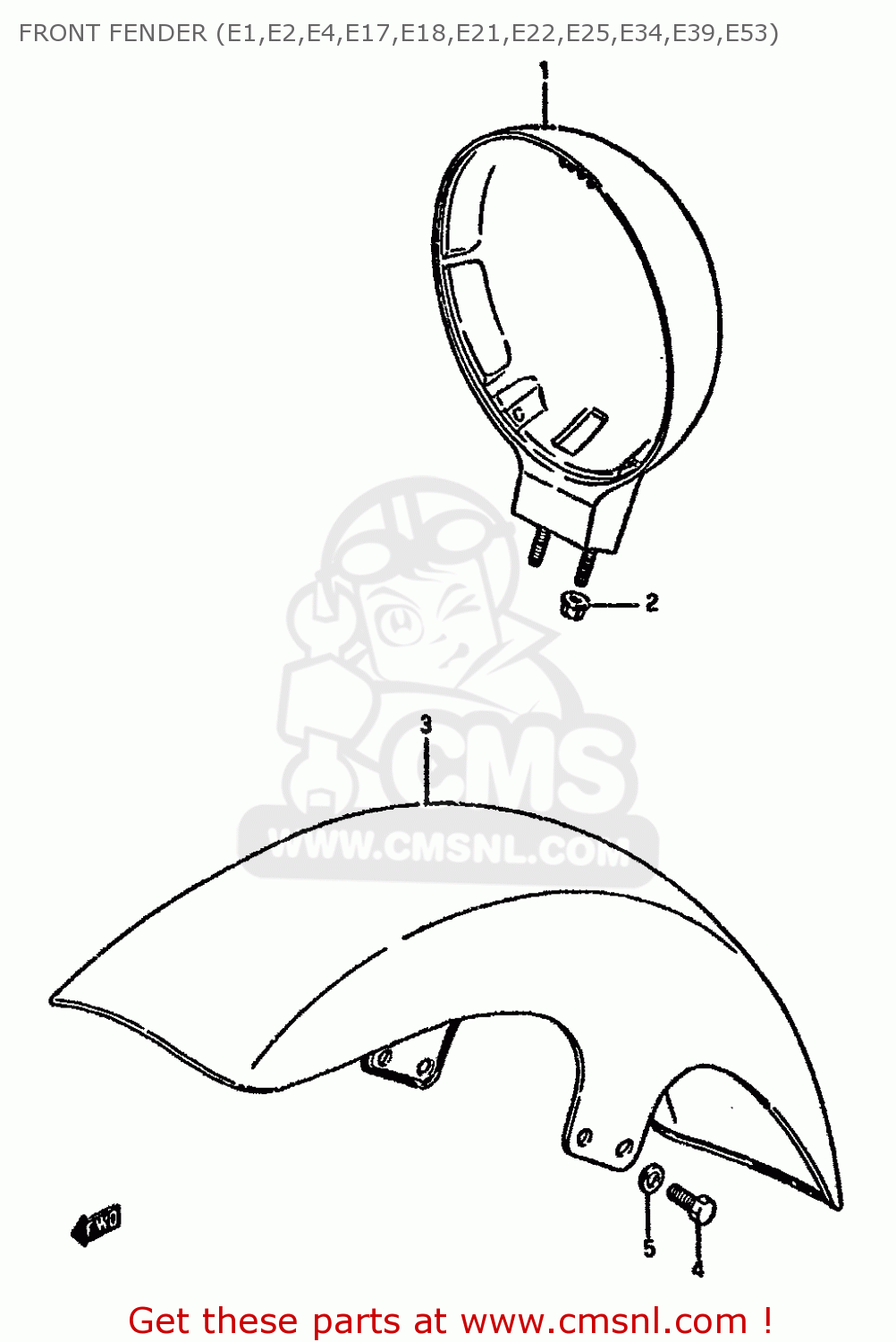

Front fender (e1,e2,e4,e17,e18,e21,e22,e25,e34,e39,e53) diagram LS650P 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

5181038A01
ref: 1

HOUSING,HEADLAMP

€ 111.00

0831931067
ref: 2

NUT

€ 2.50

3-1

5311024B0100J
ref: 3-1
MODEL G

FENDER,FRONT

€ 208.50

3-2

5311024B0113Z
ref: 3-2
MODEL G/M

FENDER,FRONT

€ 259.50

3-3

5311024B0124V
ref: 3-3
MODEL J/K

FENDER,FRONT

€ 208.50

3-4

5311024B0133D
ref: 3-4
MODEL J/K

FENDER,FRONT

€ 208.50

3-5

5311024B0133H
ref: 3-5
MODEL M

FENDER,FRONT

€ 208.50

3-6

5311024B0122U
ref: 3-6
MODEL R

FENDER,FR

€ 170.50

3-7

5311024B0133J
ref: 3-7
MODEL R

FENDER,FR

€ 259.50

4-1

0110706167
ref: 4-1
MODEL G/J

BOLT

€ 3.00

4-2

0113706167
ref: 4-2
MODEL K/M

BOLT

€ 2.50

4-3

0157006163
ref: 4-3
MODEL R

BOLT

€ 2.50

0832121067
ref: 5
MODEL G/J

WASHER,LOCK

€ 2.50
