CRANKCASE
PE250 1981 (X) (E01 E02 E04 E15 E21 E24)

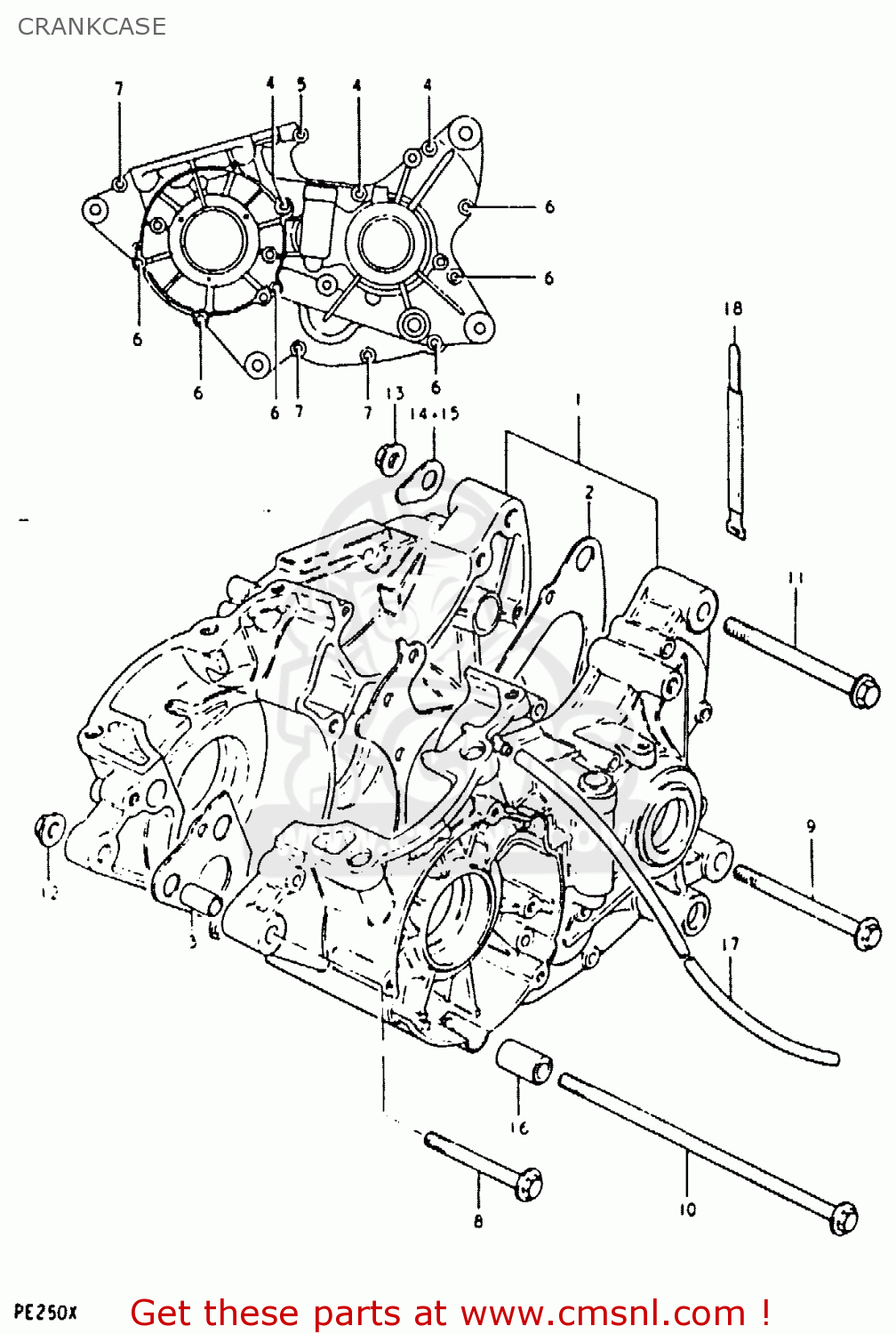

Crankcase diagram PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
CRANKCASE PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1130040870
ref: 1
CRANKCASE SET
€ 762.50
2
1148140300
ref: 2
GASKET,CRANKCASE (MCA)
€ 20.00
3
0920613001
ref: 3
PIN
€ 2.50
4
0211206658
ref: 4
SCREW 6X65
€ 2.00
5
0211206557
ref: 5
SCREW
€ 2.50
6
0211206508
ref: 6
SCREW
€ 2.50
7
0211206358
ref: 7
SCREW (6X35)
€ 2.50
8
0910308037
ref: 8
BOLT(8X67)
€ 6.50
9-1
0910308009
ref: 9-1
MODEL T
BOLT
€ 5.00
9-2
0910308051
ref: 9-2
MODEL X
BOLT
€ 5.50
10
0910308045
ref: 10
BOLT
€ 12.50
11
0910310016
ref: 11
BOLT
€ 6.50
12
0831931088
ref: 12
NUT
€ 2.50
13
0831931108
ref: 13
NUT
€ 3.00
14
0916910011
ref: 14
WASHER
€ 1.00
15
0916910012
ref: 15
WASHER
€ 1.00
16
0918008080
ref: 16
SPACER(8.6X16X26)
€ 5.50
17
0934305151
ref: 17
HOSE
€ 13.00
18
0940711301
ref: 18
CLAMP L:110
€ 6.00
