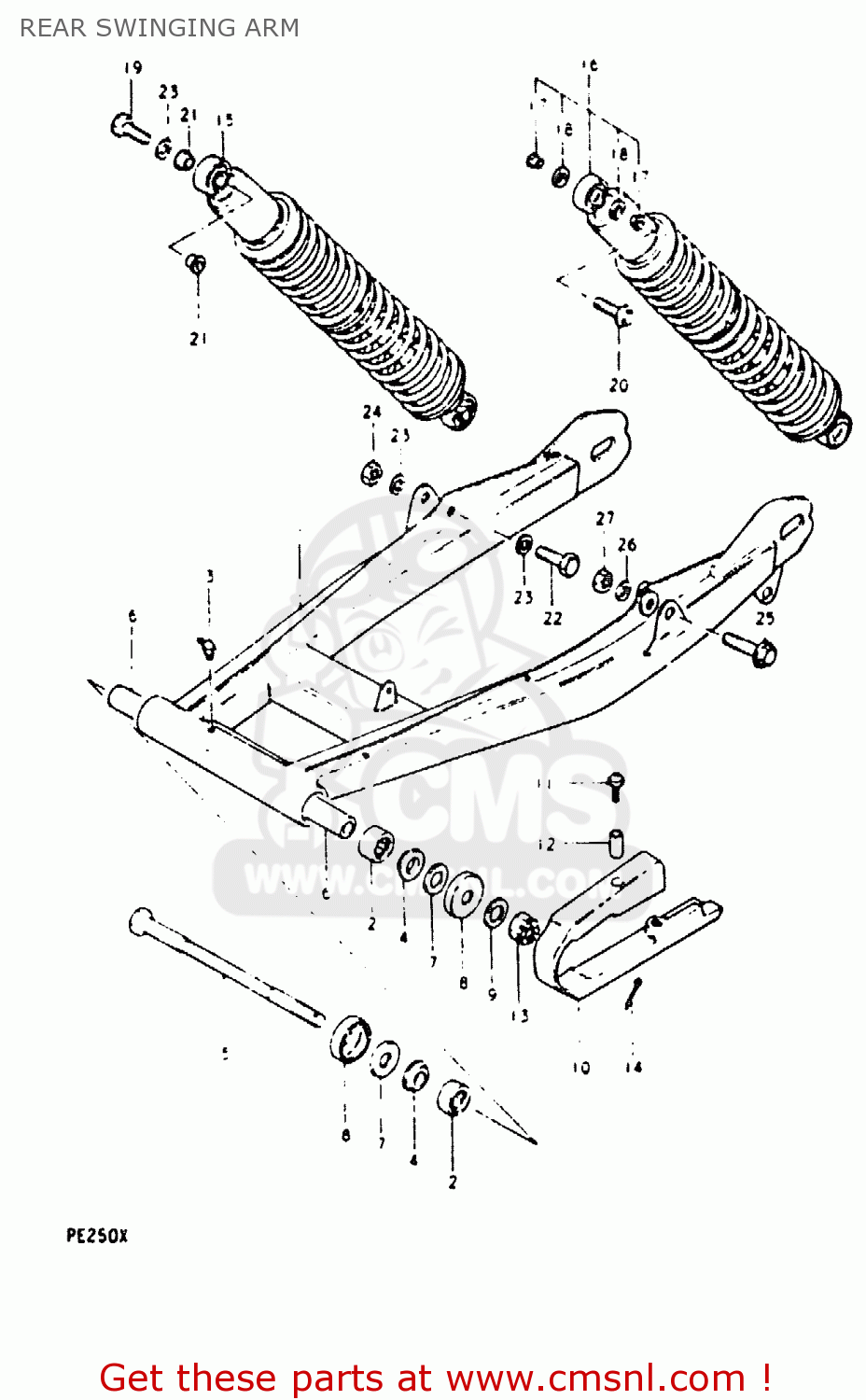

REAR SWINGING ARM

ref

part #

description

quantity

1

6110140810
ref: 1

SWING ARM ASSEMBLY,REAR

€ 167.50

2

0926320031
ref: 2

BEARING

€ 15.50

3

0835131008
ref: 3

NIPPLE,GREASE

€ 10.50

4

6126140402
ref: 4
FROM 61261-40401

BUSHING,REAR SWING ARM PIVOT

€ 26.00

5

6121140600
ref: 5

SHAFT,REAR SWING ARM

€ 38.00

6

6125140601
ref: 6
FROM 61251-40600

SPACER,REAR SWING ARM

€ 31.50

7

0821115322
ref: 7

WASHER

€ 2.00

8

6126240400
ref: 8

COVER,RR SWGARM DUST SEAL

€ 4.00

9

0832211148
ref: 9

WASHER

€ 2.00

10

6127340601
ref: 10

BUFFER,CHAIN TOUCH DEFLECTOR

€ 23.50

11

6127540200
ref: 11

SCREW,CHAIN TOUCH DEFEND

€ 1.50

12

0918005015
ref: 12

SPACER (5.5X8X4)

€ 3.00

13

0831441148
ref: 13

NUT 14MM

€ 3.00

14

0411130308
ref: 14

COTTER PIN

€ 1.50

15

6210340600
ref: 15

ABSORBER ASSEMBLY,REAR SHOCK

€ 288.50

16

6210440600
ref: 16

ABSORBER ASSEMBLY,REAR SHOCK

€ 242.50

17

6217740500
ref: 17

SPACER,REAR SHOCK ABSORBER

€ 5.00

18

6222640500
ref: 18

DUST SEAL,REAR SHOCK

€ 3.00

19

0910008150
ref: 19

BOLT

€ 2.00

20

0910310029
ref: 20

BOLT 10X40

€ 2.00

21

6231640200
ref: 21

SPACER,RR SHK ABS INNER

€ 7.50

22

0910008151
ref: 22

BOLT(8X46)

€ 2.50

23

0832211088
ref: 23

WASHER

€ 2.00

24

0831921088
ref: 24

NUT

€ 1.50

25

0910310030
ref: 25

BOLT(10X52)

€ 8.50

26

0832211108
ref: 26

WASHER

€ 2.50

27

0831921108
ref: 27

NUT

€ 3.00
