MUFFLER
PE250 1981 (X) (E01 E02 E04 E15 E21 E24)

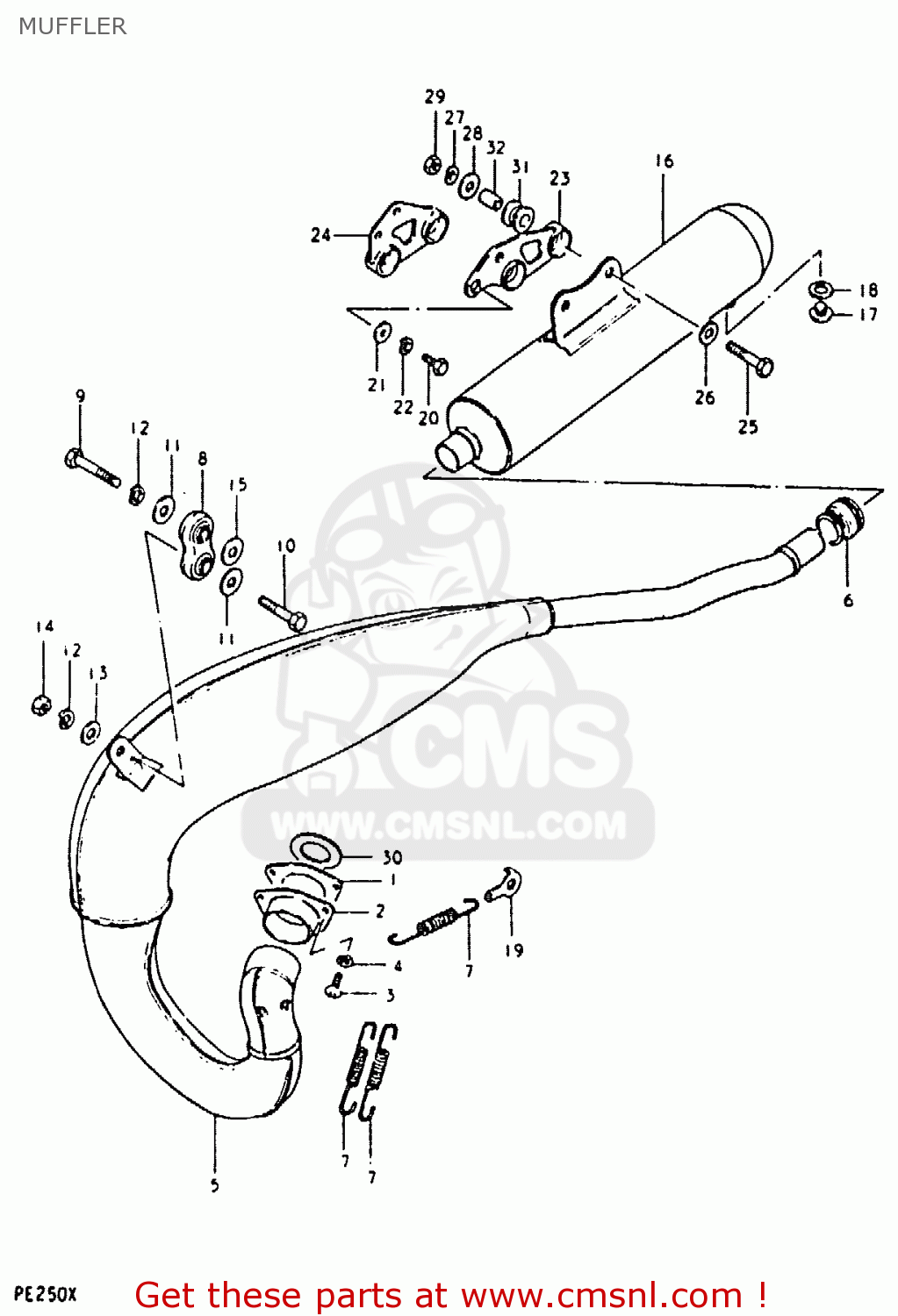

Muffler diagram PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
MUFFLER PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1418116300
ref: 1
GASKET,EXHAUST PIPE (MCA)
€ 4.00
2
1417016300
ref: 2
FLANGE,EXHAUST PIPE
€ 70.50
3
0211206208
ref: 3
SCREW
€ 2.00
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5-1
1431040600
ref: 5-1
TO 14310-40620
BODY,MUFFLER
€ 609.00
5-2
1431040620
ref: 5-2
E4, E21
BODY,MUFFLER
€ 609.00
6
1477130901
ref: 6
CONNECTOR,MUFFLER
€ 19.00
7
0944311002
ref: 7
SPRING
€ 4.50
8
1477040000
ref: 8
DAMPER,MUFFLER
€ 139.00
9
0110708458
ref: 9
BOLT 8X45
€ 2.50
10
0110708358
ref: 10
BOLT
€ 3.50
11
0916008035
ref: 11
WASHER
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
WASHER
€ 2.00
14
0831012088
ref: 14
NUT
€ 2.00
15
0918008033
ref: 15
SPACER(8.4X12X12)
€ 2.50
16-1
NOTUSED
ref: 16-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-2
NOTUSED
ref: 16-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16-3
1430340610
ref: 16-3
MODEL T; E2, E4, E21
MUFFLER ASSY, 2ND
€ 164.50
16-4
1430340611
ref: 16-4
MODEL X; E2, E4, E21
MUFFLER ASSY, 2ND
€ 164.50
17
10924712103
ref: 17
PLUG, DRAIN
€ 0.00
18
0916812003
ref: 18
GASKET(12X16X2) (NAS)
€ 2.00
19
1441140300
ref: 19
HOOK,MUFFLER FIT SPRING
€ 2.00
20
0110708168
ref: 20
BOLT
€ 2.00
21
0832211088
ref: 21
WASHER
€ 2.00
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
1477040500
ref: 23
MODEL T
DAMPER,MUFFLER SUPPORT
€ 27.50
24
1477040510
ref: 24
MODEL X
DAMPER,MUFFLER SUPPORT
€ 0.00
25
0110708358
ref: 25
BOLT
€ 3.50
26
0832211088
ref: 26
WASHER
€ 2.00
27
0832121088
ref: 27
LOCK WASHER
€ 2.00
28
0916008002
ref: 28
WASHER (8.5X29X1.6)
€ 2.00
29
0831012088
ref: 29
NUT
€ 2.00
30
1415941500
ref: 30
E2, E4, E21, E24
PLATE, EXHAUST PIPE
€ 3.50
31
0932012026
ref: 31
CUSHION
€ 8.00
32
0918008032
ref: 32
SPACER (8.2X12X17)
€ 5.00
