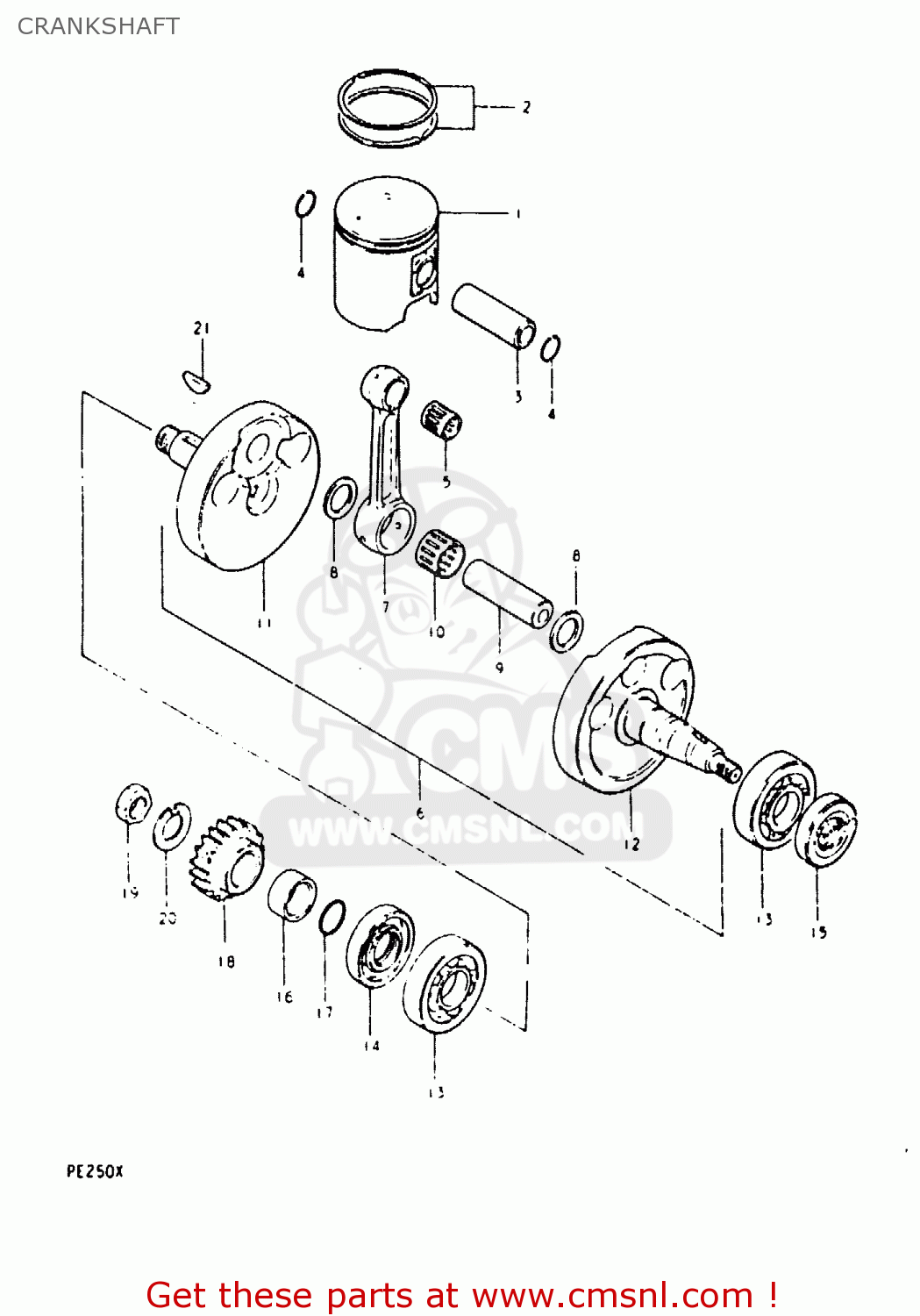

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040601
ref: 1-1

PISTON

€ 69.00

1-2

1211040601025
ref: 1-2

PISTON

€ 119.50

1-3

1211040601050
ref: 1-3

PISTON (67.50MM)

€ 114.50

2-1

1214041600
ref: 2-1

RING SET,PISTON

€ 22.50

2-2

1214041600025
ref: 2-2

RING SET,PISTON (OS:0.25)

€ 26.00

2-3

1214041600050
ref: 2-3

RING SET,PISTON (OS:0.5)

€ 22.50

3

1215192201
ref: 3

PIN,PISTON (18MM)

€ 14.00

4

0938118002A
ref: 4

CIRCLIP,PISTON PIN

€ 1.50

5

0926318011
ref: 5

BEARING(18X23X22)

€ 14.00

6

1220040600
ref: 6

CRANKSHAFT ASSEMBLY

€ 678.50

7

1216140300
ref: 7

ROD,CONNECTING

€ 113.00

8

0916024015
ref: 8

WASHER(24X29X1.5)

€ 7.50

9

1221141101
ref: 9

PIN,CRANK

€ 27.00

10

0926324011
ref: 10

ROLLER BEARING (24X30X1

€ 56.00

11

1222140600
ref: 11

CRANKSHAFT

€ 0.00

12

1226140600
ref: 12

CRANKSHAFT,LEFT

€ 180.00

13

0926225047
ref: 13

BEARING

€ 29.00

14

0928932002
ref: 14

SEAL,OIL(32X52X8.4)

€ 27.00

15

0928324001
ref: 15

SEAL,OIL(24X50X9)

€ 19.00

16

0918020074
ref: 16

SPACER

€ 0.00

17

0928020004
ref: 17

O RING(D:2.4,ID:19.8)

€ 3.00

18

2111140301
ref: 18

GEAR,PRIMARY DRIVE

€ 41.00

19

0914014017
ref: 19

NUT

€ 4.00

20

0916614010
ref: 20

WASHER

€ 2.00

21

0834131059
ref: 21

KEY

€ 3.00

all assemblies
