FRONT WHEEL

PE250 1981 (X) (E01 E02 E04 E15 E21 E24)

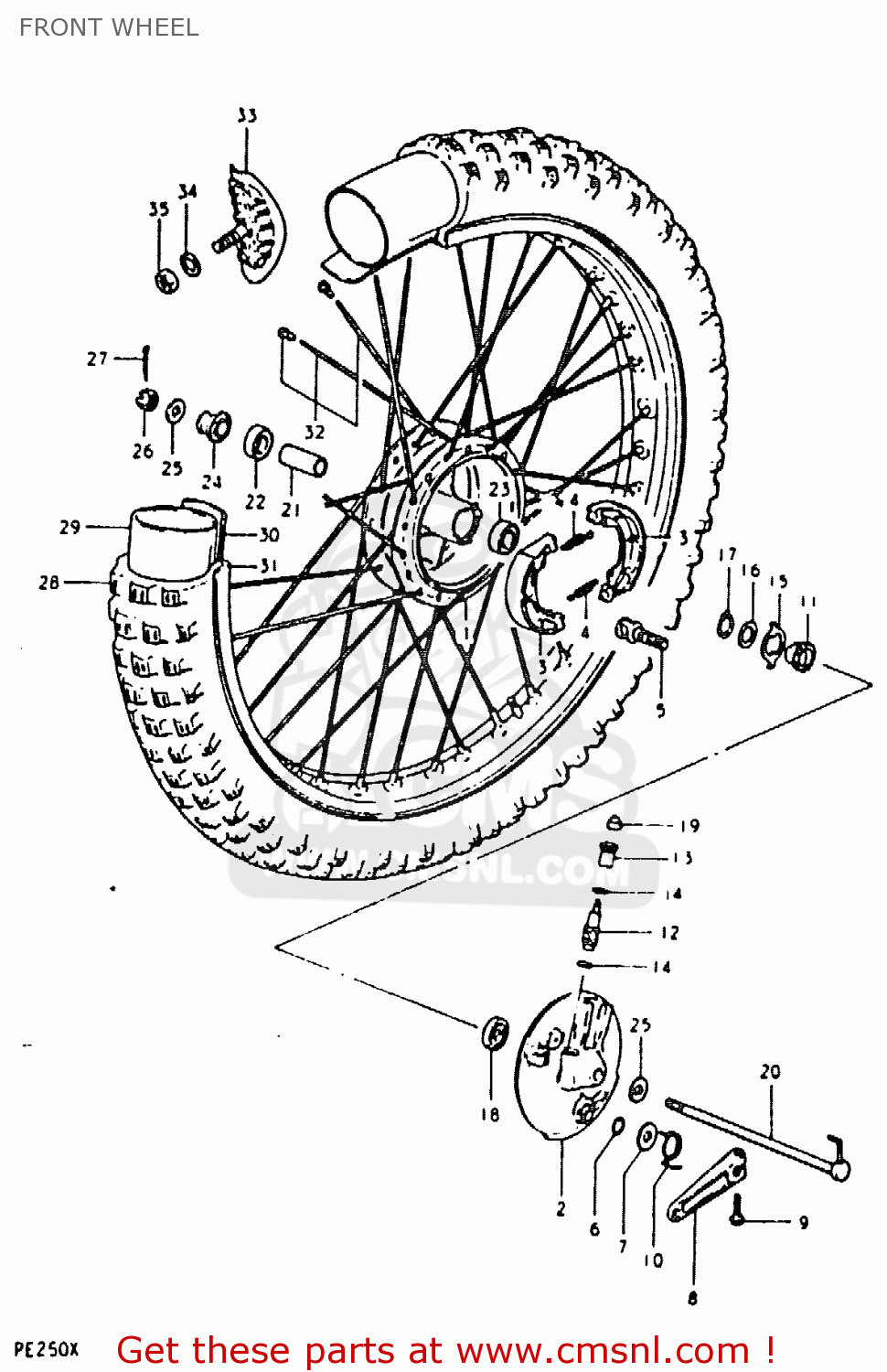

Front wheel diagram PE250 1981 (X) (E01 E02 E04 E15 E21 E24)

FRONT WHEEL PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
FRONT WHEEL PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
FRONT WHEEL PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
5411040302
ref: 1
DRUM,FRONT HUB
5411040302
€ 208.00
2
5421040600
ref: 2
PANEL,FRONT HUB
€ 90.50
3-1
5441041410
ref: 3-1
SHOE,BRAKE
5441041410
€ 35.00
3-2
NOTUSED
ref: 3-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
5542041100
ref: 4
SPRING
5542041100
€ 5.50
5-1
5444040301
ref: 5-1
MODEL T
CAM,FRONT BRAKE
€ 24.00
5-2
5444040302
ref: 5-2
MODEL X
CAM,FRONT BRAKE
5444040302
€ 24.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
5445132400
ref: 8
LEVER,FRONT BRAKE CAM
5445132400
€ 48.00
9
0110706258
ref: 9
BOLT
€ 2.00
10
0944832007
ref: 10
SPRING
0944832007
€ 8.00
11
5461140600
ref: 11
GEAR,SPEEDOMETER
5461140600
€ 15.00
12
5462140600
ref: 12
PINION,SPEEDOMETER
5462140600
€ 9.00
13-1
5463211020
ref: 13-1
MODEL T
BUSHING,SPEEDOMETER PINION
€ 6.50
13-2
5463249200
ref: 13-2
MODEL X
BUSHING,SPEEDOMETER PINION
5463249200
€ 6.50
14
0916005001
ref: 14
WASHER (5.1X9X0.4)
0916005001
€ 2.00
15
5466011031
ref: 15
DRIVER,SPEEDOMETER GEAR
5466011031
€ 31.00
16
0916022001
ref: 16
WASHER(22.5X27X1)
0916022001
€ 2.00
17
0833111229
ref: 17
CIRCLIP
0833111229
€ 2.00
18
0928526003
ref: 18
SEAL,OIL(26X38X4)
0928526003
€ 22.00
19
0928906001
ref: 19
SEAL,OIL(6X10X3)
0928906001
€ 4.00
20
5471040500
ref: 20
AXLE,FRONT
5471040500
€ 40.50
21
0918012041
ref: 21
SPACER (12.6X19X52)
0918012041
€ 4.50
22
0812362017
ref: 22
BEARING, RH
€ 15.00
23
0814362017
ref: 23
BEARING
0814362017
€ 11.50
24
5474041100
ref: 24
SPACER,FRONT AXLE,RIGHT
€ 10.50
25
0832211128
ref: 25
WASHER
0832211128
€ 2.00
26
0831441128
ref: 26
NUT, REAR AXLE
0831441128
€ 2.50
27
0411130308
ref: 27
COTTER PIN
0411130308
€ 1.50
28-1
5510040430
ref: 28-1
TIRE,FRONT
€ 0.00
28-2
NOTUSED
ref: 28-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
29-1
5520028330
ref: 29-1
TUBE,INNER
€ 32.50
29-2
NOTUSED
ref: 29-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
30-1
5526128330
ref: 30-1
PROTECTOR,WHEEL,INNER
€ 5.00
30-2
NOTUSED
ref: 30-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
31-1
5531140400
ref: 31-1
MODEL T, TO 55311-40
RIM,FRONT WHEEL
€ 240.50
31-2
5531140410
ref: 31-2
MODEL X
RIM,FRONT WHEEL
€ 0.00
32-1
5532040410
ref: 32-1
MODEL T
SPOKE SET,FRONT
5532040410
€ 39.00
32-2
5532040420
ref: 32-2
MODEL X
SPOKE SET,FRONT
€ 48.50
33
6527030001
ref: 33
STOPPER,BEAD
€ 30.50
34
0832211088
ref: 34
WASHER
0832211088
€ 2.00
35
0831012088
ref: 35
NUT
0831012088
€ 2.00
