MAGNETO
PE250 1981 (X) (E01 E02 E04 E15 E21 E24)

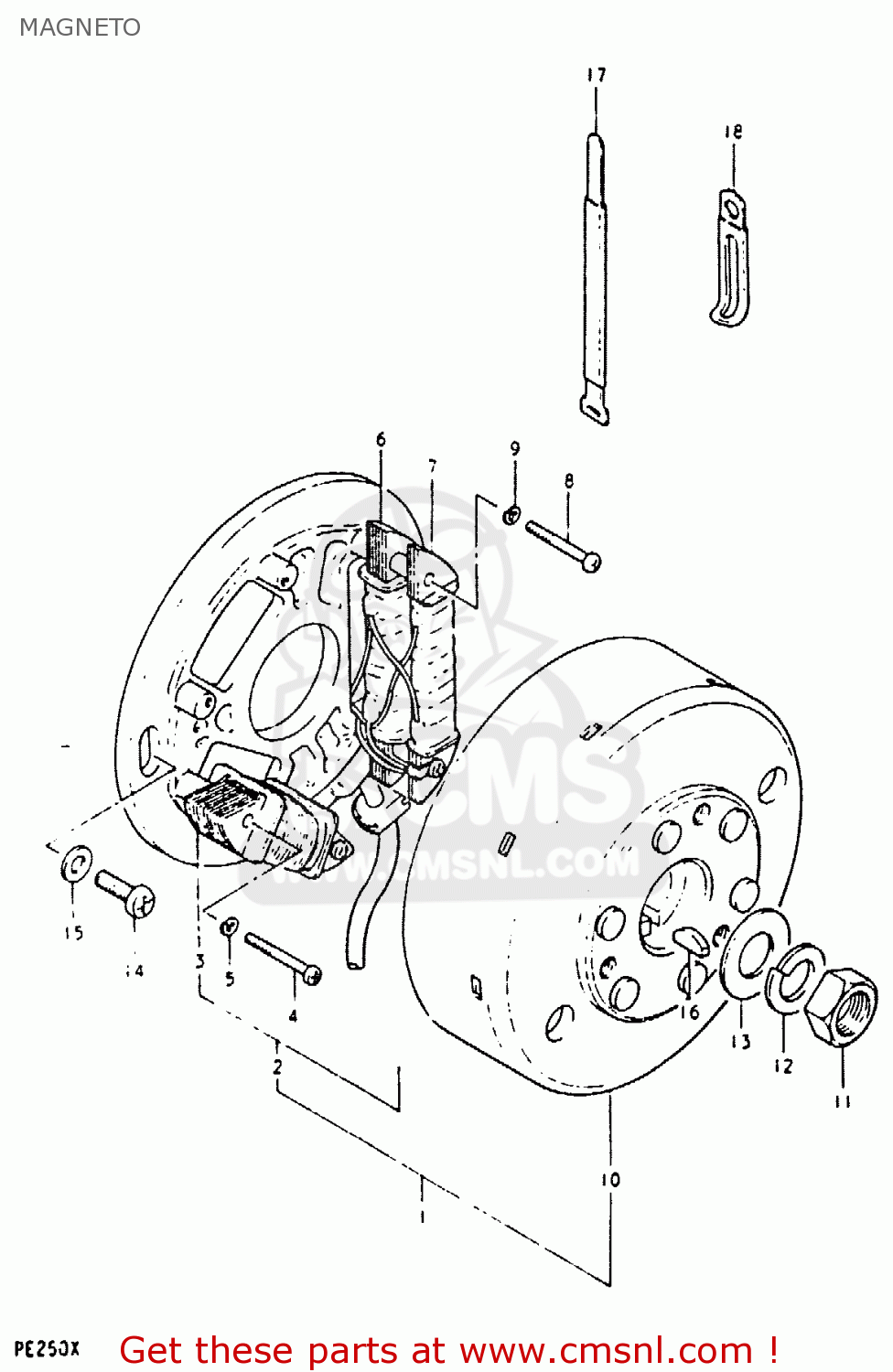

Magneto diagram PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
MAGNETO PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3210040620
ref: 1
MAGNETO ASSEMBLY
€ 349.00
2
3210140620
ref: 2
STATOR ASSEMBLY
€ 349.00
3
3212040620
ref: 3
COIL,LIGHTING
€ 349.00
4
0211204308
ref: 4
SCREW (4X30)
€ 1.50
5
0832121048
ref: 5
LOCK WASHER
€ 2.00
6
3214040620
ref: 6
COIL,PRIMARY
€ 72.00
7
3215040620
ref: 7
COIL,PULSER
€ 60.00
8
0211204358
ref: 8
SCREW
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
€ 2.00
10
3210240620
ref: 10
ROTOR ASSEMBLY
€ 349.00
11
0914010003
ref: 11
NUT (10MM)
€ 3.50
12
0832121108
ref: 12
LOCK WASHER
€ 2.00
13
0832221108
ref: 13
WASHER
€ 2.50
14
0211206168
ref: 14
SCREW
€ 2.50
15
0832221068
ref: 15
WASHER
€ 2.00
16
0834131049
ref: 16
KEY 4MM
€ 3.50
17
0940711301
ref: 17
CLAMP L:110
€ 6.00
18
0940406412
ref: 18
CLAMP
€ 2.50
