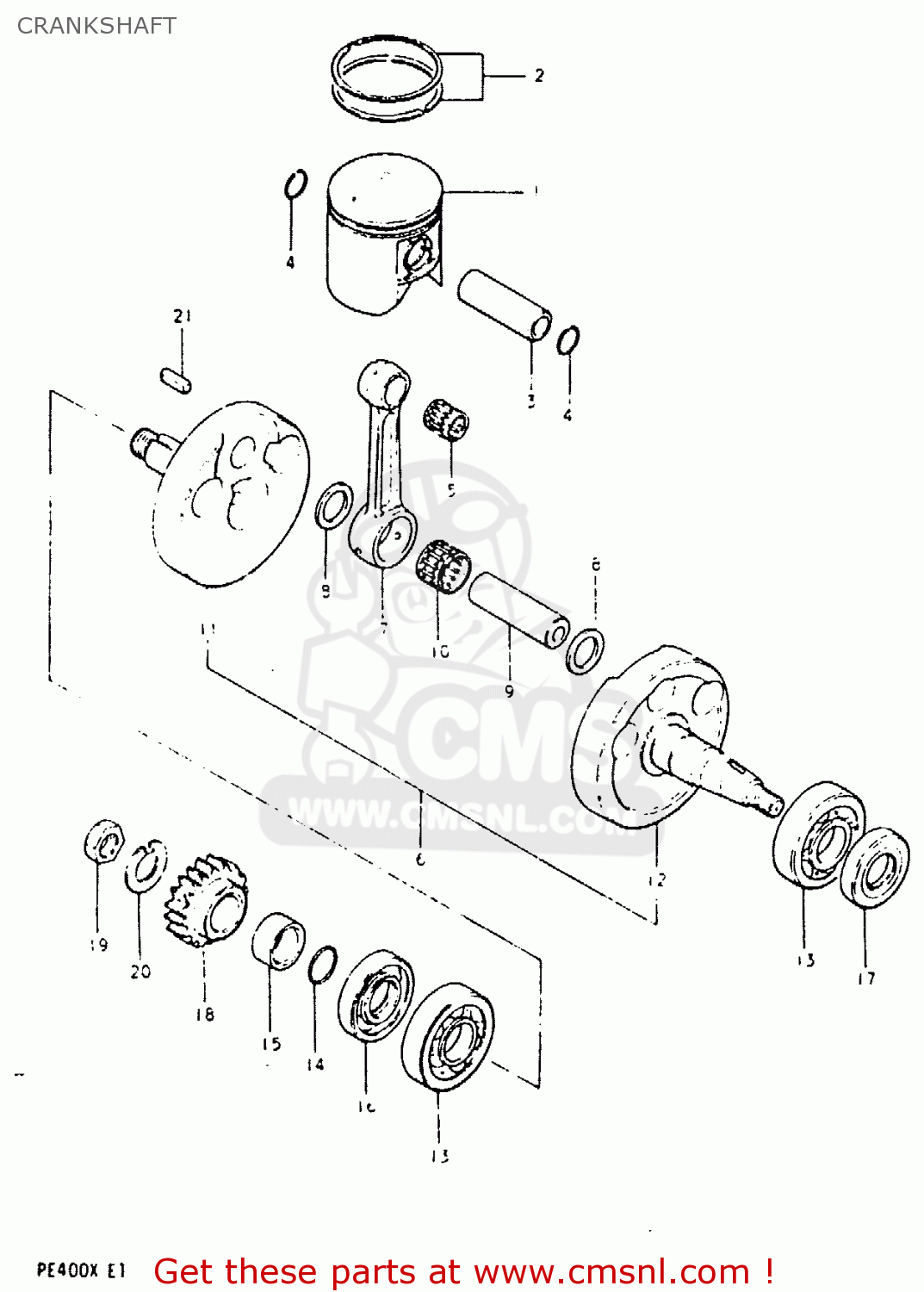

CRANKSHAFT

ref

part #

description

quantity

1-1

1211040901
ref: 1-1

PISTON (85.00MM)

€ 115.00

1-2

1211040901025
ref: 1-2

PISTON (85.25MM)

€ 49.00

1-3

1211040901050
ref: 1-3

PISTON (85.50MM)

€ 177.50

2-1

1214040910
ref: 2-1

RING SET,PISTON

€ 54.00

2-2

1214040910025
ref: 2-2

RING SET,PISTON (OS:0.25)

€ 28.50

2-3

1214040910050
ref: 2-3

RING SET,PISTON (OS:0.5)

€ 28.50

3

1215140900
ref: 3

PISTON PIN

€ 14.50

4

0938120001
ref: 4

CIRCLIP

€ 2.00

5

0926320032
ref: 5

BEARING(20X25X22)

€ 26.50

6

1220040900
ref: 6

CRANKSHAFT ASSEMBLY

€ 396.50

7

1216140900
ref: 7

ROD,CONNECTING

€ 0.00

8

0916024014
ref: 8

WASHER(24X29X2)

€ 4.00

9

1221140900
ref: 9

PIN,CRANK

€ 34.50

10

0926324014
ref: 10

BEARING

€ 62.50

11

1222140900
ref: 11

CRANKSHAFT

€ 396.50

12

1226140900
ref: 12

CRANKSHAFT,LEFT

€ 138.50

13

0811363060
ref: 13

BEARING

€ 47.50

14

0928022001
ref: 14

O RING(D:2.4,ID:21.8)

€ 2.00

15

0918022017
ref: 15

SPACER (22X37X12.5)

€ 0.00

16

0928937001
ref: 16

SEAL,OIL(37X62X9)

€ 26.50

17

0928324001
ref: 17

SEAL,OIL(24X50X9)

€ 19.00

18

2111140901
ref: 18

GEAR,PRIMARY DRIVE

€ 43.50

19

0914014017
ref: 19

NUT

€ 4.00

20

0916614010
ref: 20

WASHER

€ 2.00

21

0942107001
ref: 21

KEY

€ 2.50
