FRAME COVER (PE400X)
PE400 1980 (T) (E01 E02 E15 E24)

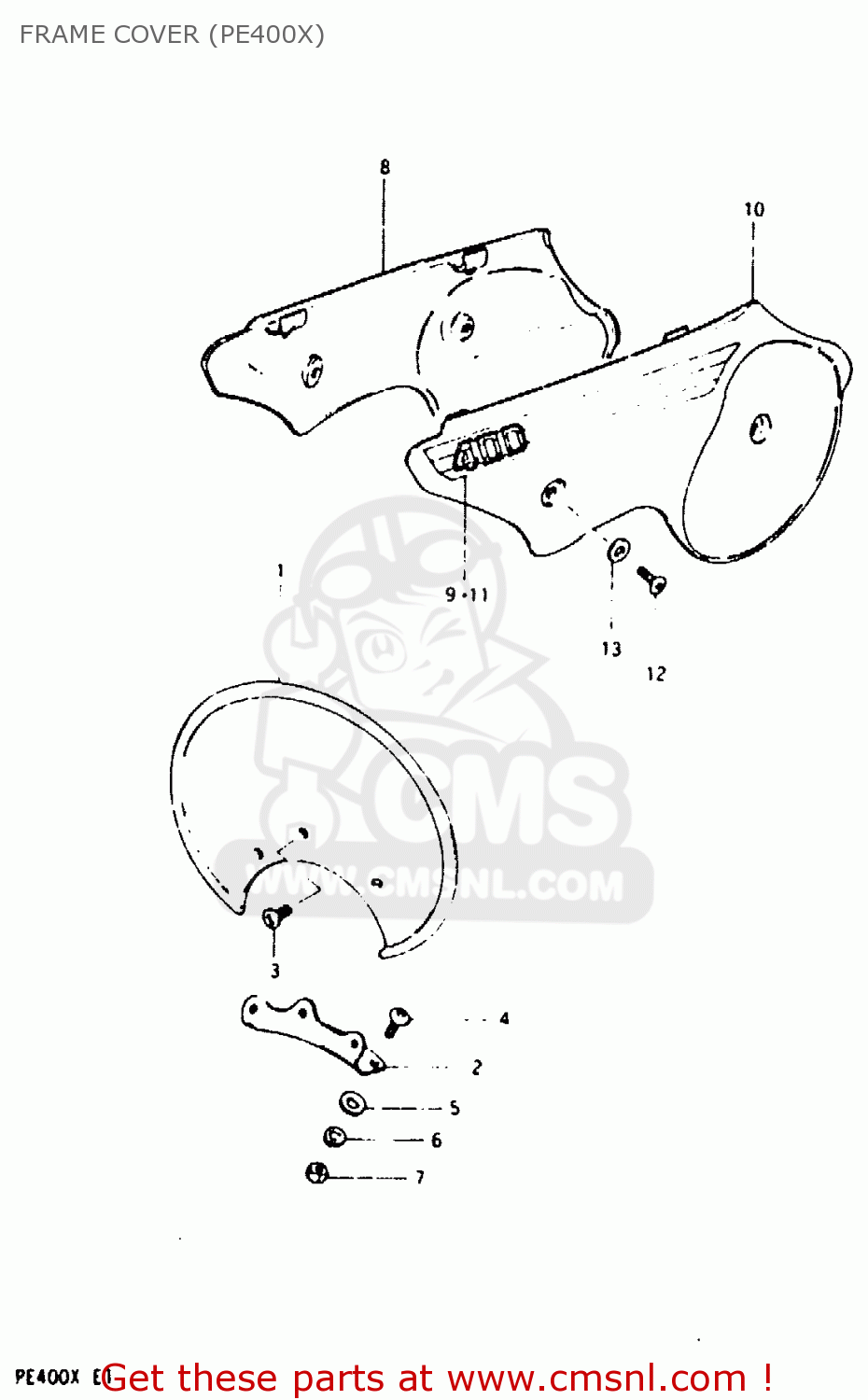

Frame cover (pe400x) diagram PE400 1980 (T) (E01 E02 E15 E24)
FRAME COVER (PE400X) PE400 1980 (T) (E01 E02 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1
9491141510
ref: 1
PLATE,NUMBER,FRONT
€ 23.00
2
9492141530
ref: 2
BRACKET
€ 9.00
3
0214206108
ref: 3
SCREW
€ 2.00
4
0211205128
ref: 4
SCREW
€ 2.50
5
0832221058
ref: 5
WASHER
€ 2.50
6
0832121058
ref: 6
LOCK WASHER
€ 2.00
7
0831011058
ref: 7
NUT
€ 2.50
8
4711140401163
ref: 8
COVER,FRAME,R(YELLOW)
€ 48.50
9
681364091076P
ref: 9
TAPE,FRAME COVER
€ 8.50
10
4721140611163
ref: 10
COVER,FRAME,L(YELLOW)
€ 47.50
11
681464091076P
ref: 11
TAPE,FRAME COVER
€ 0.00
12
0214206128
ref: 12
SCREW
€ 1.50
13
0918006048
ref: 13
SPACER
€ 2.00
