REAR FENDER
PE400 1980 (T) (E01 E02 E15 E24)

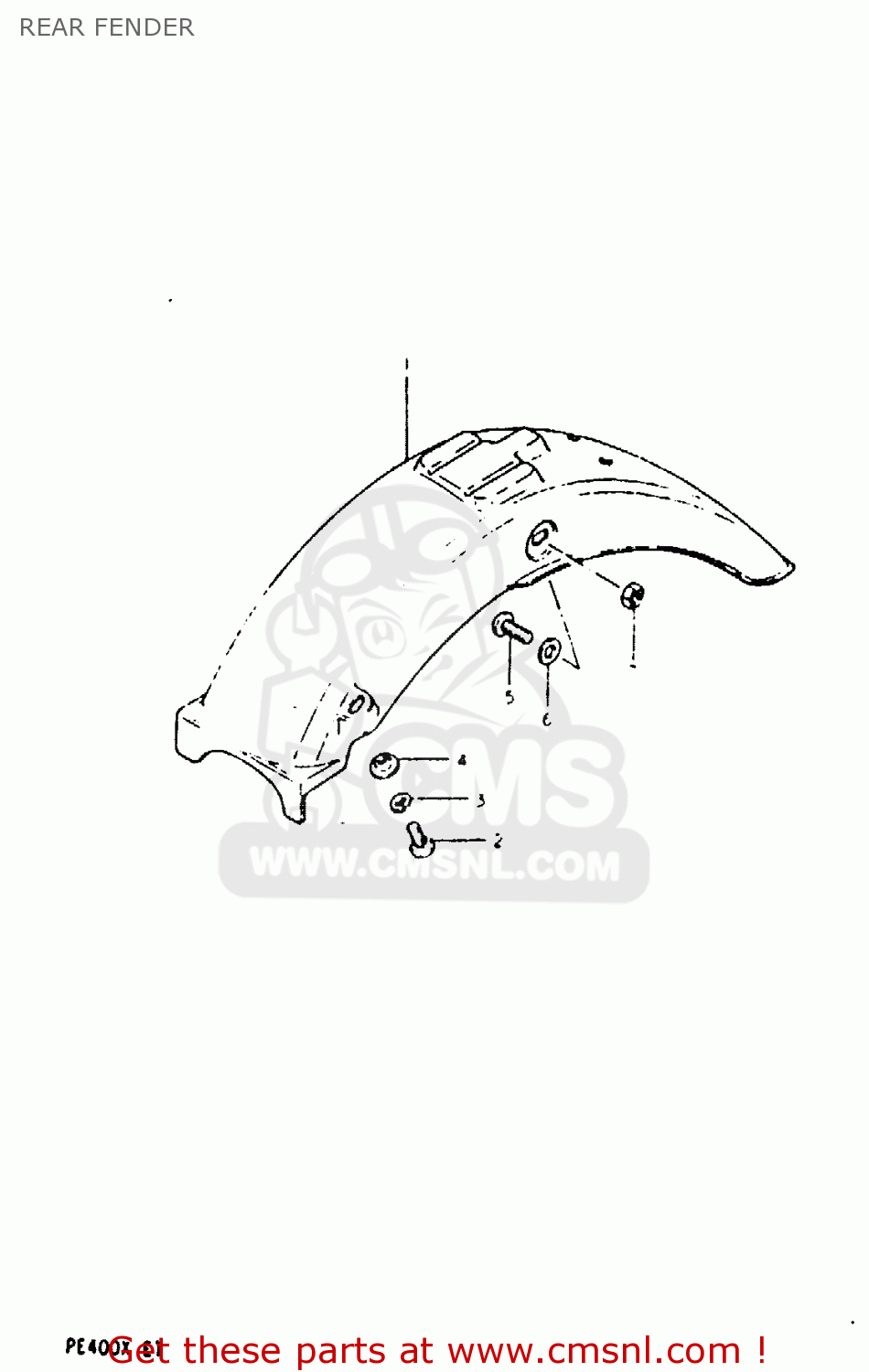

Rear fender diagram PE400 1980 (T) (E01 E02 E15 E24)
REAR FENDER PE400 1980 (T) (E01 E02 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
NOTUSED
ref: 1-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
6311140610163
ref: 1-3
E2, MODEL T
FENDER, REAR (YELLOW)
€ 0.00
1-4
6311140611163
ref: 1-4
E2, MODEL X
FENDER, REAR (YELLOW)
€ 0.00
1-5
NOTUSED
ref: 1-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0110706128
ref: 2
BOLT
€ 2.00
3
0832131068
ref: 3
LOCK WASHER
€ 2.50
4
0916906016
ref: 4
WASHER
€ 1.50
5
0214206167
ref: 5
SCREW
€ 2.00
6
0916006027
ref: 6
WASHER (6.5X20X1.2)
€ 2.00
7
0831931068
ref: 7
NUT
€ 2.50
