Buy Suzuki PE Parts Online


FUEL COCK

PE400 1980 (T) (E01 E02 E15 E24)

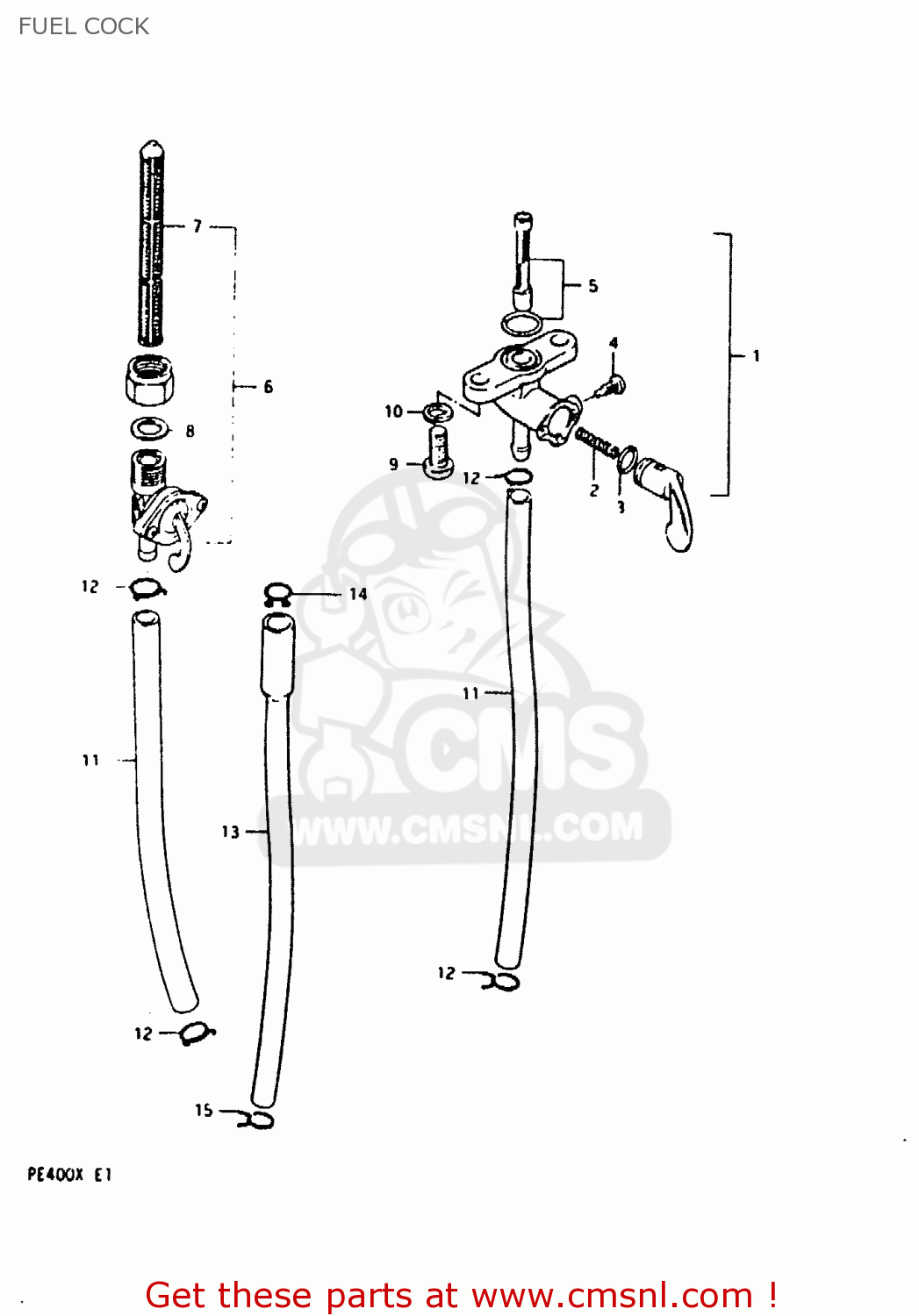

Fuel cock diagram PE400 1980 (T) (E01 E02 E15 E24)

FUEL COCK PE400 1980 (T) (E01 E02 E15 E24)
FUEL COCK PE400 1980 (T) (E01 E02 E15 E24)
FUEL COCK PE400 1980 (T) (E01 E02 E15 E24)
prices are in EUR
ref
part #
description
quantity
1
NOTUSED
ref: 1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
NOTUSED
ref: 3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
NOTUSED
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6-1
4430041550
ref: 6-1
MODEL T; E2
COCK ASSY, FUEL
€ 0.00
6-2
4430040050
ref: 6-2
MODEL X; E2
COCK ASSY,FUEL
4430040050
€ 36.00
7
4433019051
ref: 7
E2
FILTER,FUEL
€ 0.00
8
4434140050
ref: 8
E2
GASKET,FUEL COCK (NAS)
4434140050
€ 2.50
9
0211206168
ref: 9
SCREW
0211206168
€ 2.50
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
NOTUSED
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
NOTUSED
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
0934305096
ref: 13
MODEL X; E2
HOSE,FUEL
€ 14.00
14
0940110401
ref: 14
MODEL X; E2
CLIP
0940110401
€ 1.50
15
0940108404
ref: 15
MODEL X; E2
CLAMP
0940108404
€ 1.50
