MAGNETO (E2, E6, E24)
PE400 1980 (T) (E01 E02 E15 E24)

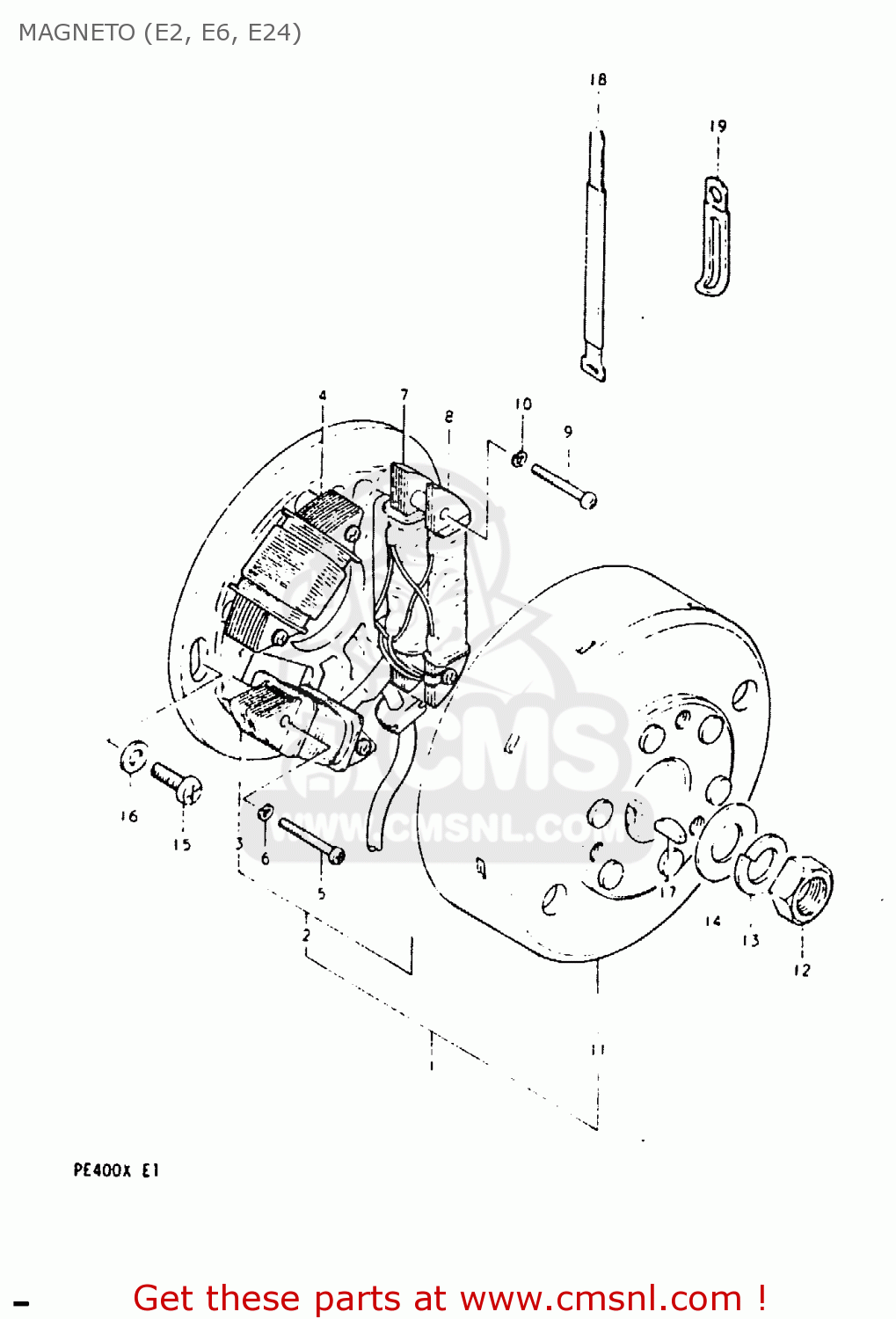

Magneto (e2, e6, e24) diagram PE400 1980 (T) (E01 E02 E15 E24)
MAGNETO (E2, E6, E24) PE400 1980 (T) (E01 E02 E15 E24)
×
prices are in EUR
ref
part #
description
quantity
1
3210040930
ref: 1
MAGNETO ASSY
€ 174.50
2
3210140930
ref: 2
STATOR ASSY
€ 196.50
3
3212040630
ref: 3
COIL, LIGHTING (A)
€ 54.50
4
3212540630
ref: 4
COIL, LIGHTING (B)
€ 52.00
5
0211204308
ref: 5
SCREW (4X30)
€ 1.50
6
0832121048
ref: 6
LOCK WASHER
€ 2.00
7
3214040620
ref: 7
COIL,PRIMARY
€ 72.00
8
3215040620
ref: 8
COIL,PULSER
€ 60.00
9
0211204358
ref: 9
SCREW
€ 2.00
10
0832121048
ref: 10
LOCK WASHER
€ 2.00
11
3210240930
ref: 11
ROTOR ASSY
€ 132.50
12
0914010003
ref: 12
NUT (10MM)
€ 3.50
13
0832121108
ref: 13
LOCK WASHER
€ 2.00
14
0832221108
ref: 14
WASHER
€ 2.50
15
0211206168
ref: 15
SCREW
€ 2.50
16
0832221068
ref: 16
WASHER
€ 2.00
17
0834131049
ref: 17
KEY 4MM
€ 3.50
18
0940711301
ref: 18
CLAMP L:110
€ 6.00
19
0940406412
ref: 19
CLAMP
€ 2.50
